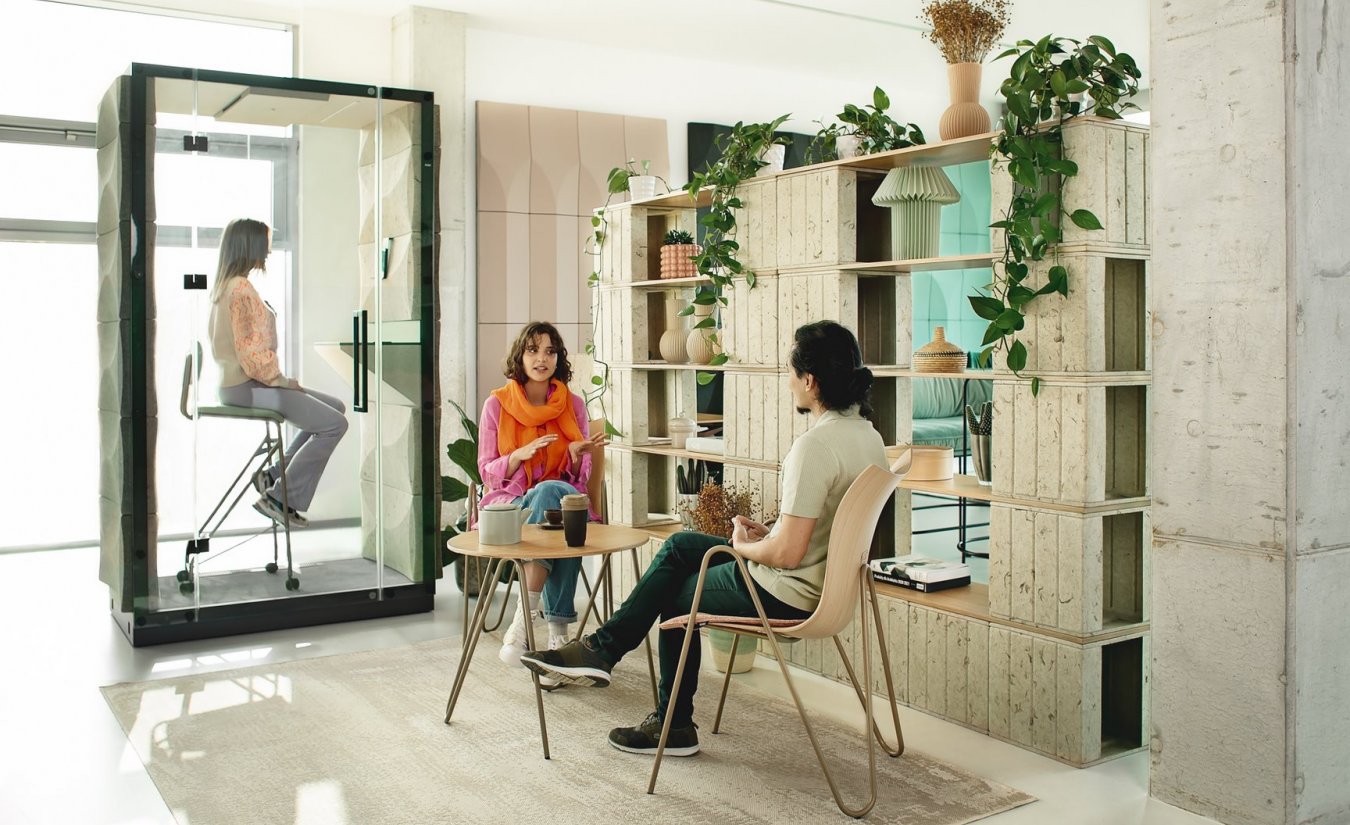

ELLIPSE acoustic pods for 1
Arranging the available workspace in the right way by providing employees with space for phone and video calls makes the workplace much more employee-friendly and boosts creativity. Such arrangements are possible thanks to acoustic pods — VANK’s mobile rooms for 1. Thanks to the special design and the use of sound-absorbing materials, the pods effectively block outside noise and suppress the sound generated inside. ELLIPSE panels with their three-dimensional structure act as diffusers to break up sound waves, bringing well-being to the office. They can be made of a biocomposite or non-woven rPET — grey or upholstered. The pods feature a safety glass door and come with connection panels, a ventilation system, energy-efficient LED ceiling lighting, and a sound system. The pod is also available in a mobile version — on wheels. Acoustic pods will work well not only in office environments but also at event venues, in hotels, in public office buildings, and at airports.
Awards
MIXOLOGY 2023
MIXOLOGY 2023

MIXOLOGY 2023

The Mixology Awards by Mix Interiors Magazine celebrate the very best projects, products and people in commercial interior design, with a judging panel comprising key players in the industry. It’s a great honour to be recognised for our efforts on this new version of VANK_BOX.

GERMAN SUSTAINABILITY AWARD DESIGN 2022
GERMAN SUSTAINABILITY AWARD DESIGN 2022

GERMAN SUSTAINABILITY AWARD DESIGN 2022

VANK’s natural composite bio-panel and eco-transformation have been recognised by the jury of the German Sustainability Award Design competition, and the panel was named a finalist in the 2022 edition of the competition.

GREEN PRODUCT AWARD 2022
GREEN PRODUCT AWARD 2022

GREEN PRODUCT AWARD 2022

The VANK BIO panel, available in 5 different patterns, won the Green Product Award 2022 and received a special mention from a 26-member jury — Editor’s Choice — in the Interior & Lifestyle category. The panel is an essential element of VANK acoustic pods, mobile walls, and wall installations.

ICONIC AWARDS 2022 Winner - BIO
ICONIC AWARDS 2022 Winner - BIO

ICONIC AWARDS 2022 Winner - BIO

The design of VANK’s BIO acoustic pod received “The Winner” title in the Innovative Interiors category of the ICONIC AWARDS 2022 competition organised by the German Design Council.

__ Distinguishing features

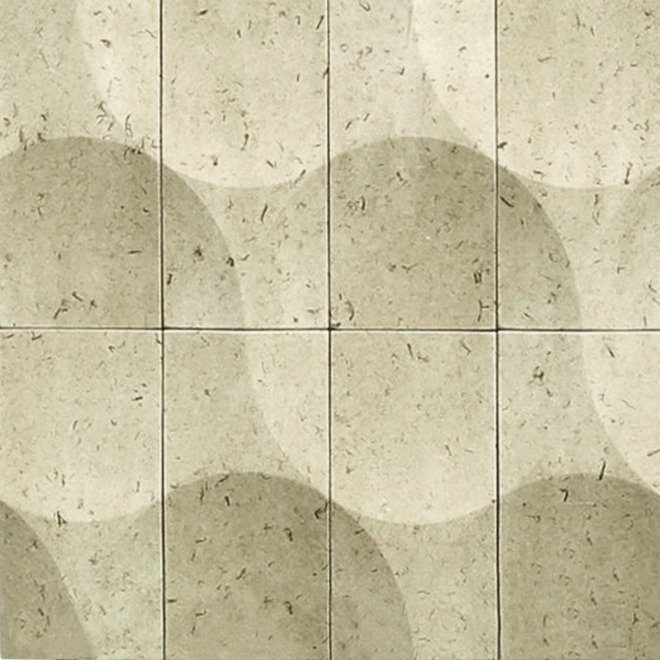

NATURAL BIO-MATERIAL
NATURAL BIO-MATERIAL

NATURAL BIO-MATERIAL

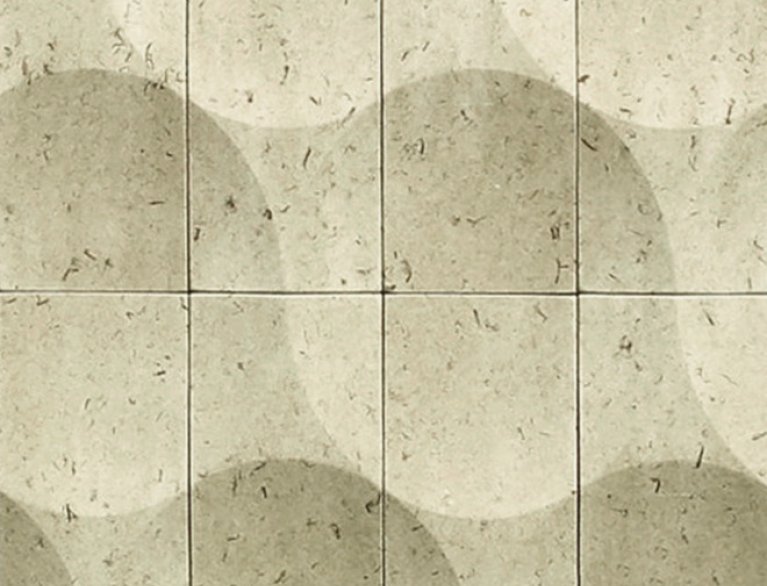

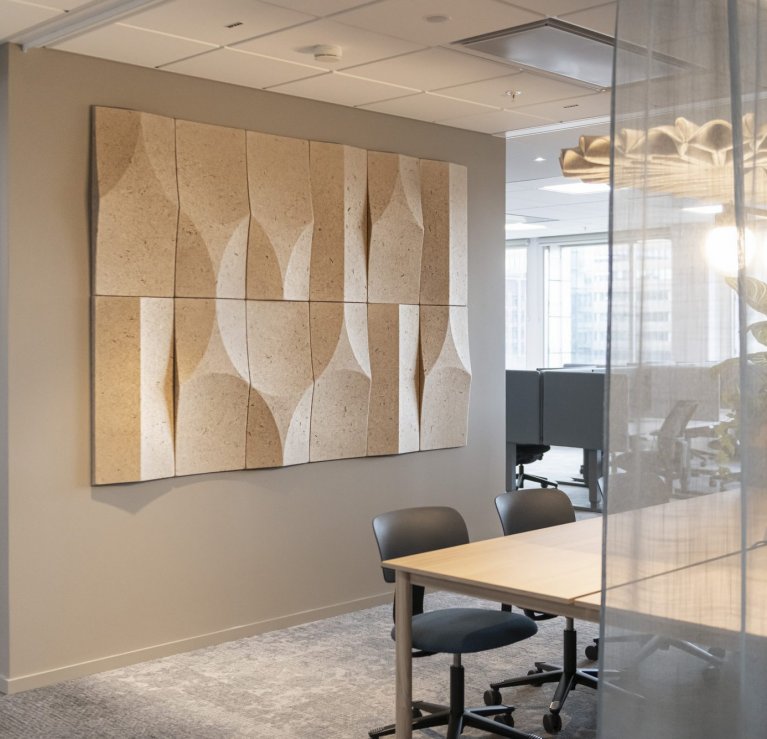

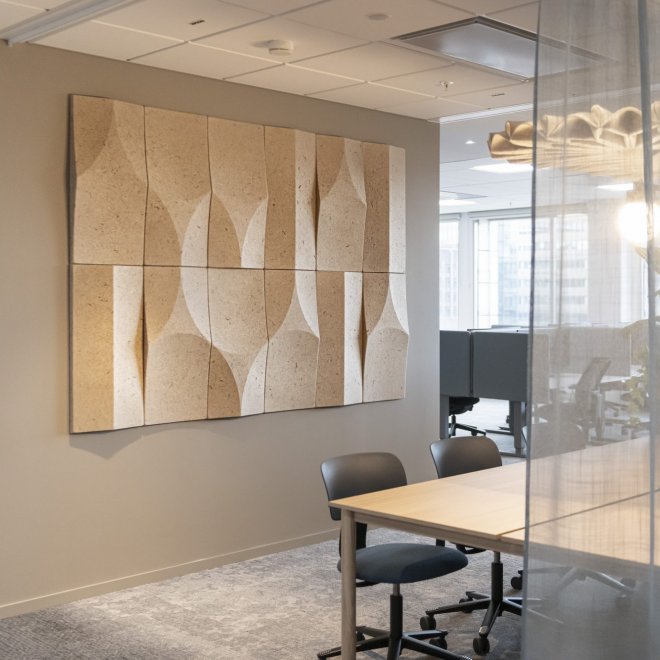

VANK BIO acoustic panels are made from a biocomposite based on fibrous plants, i.e. flax and hemp.
rPET
rPET

rPET

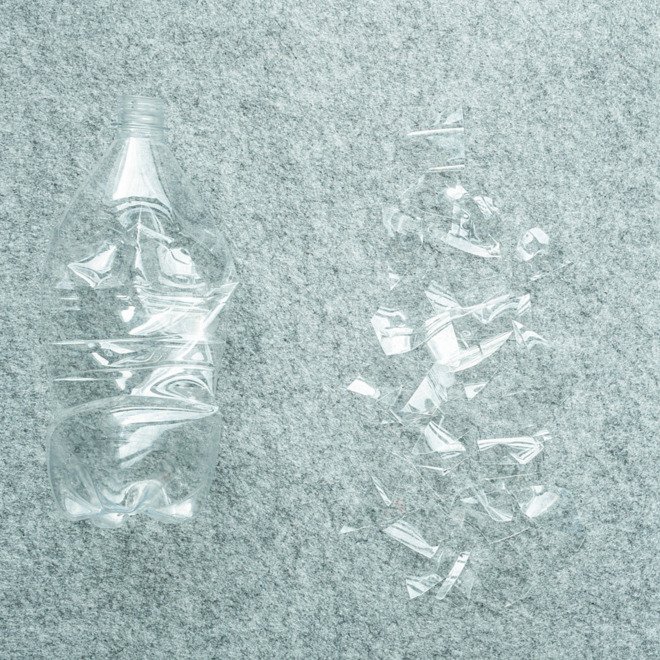

VANK rPET acoustic panels are made from non-woven recycled plastic. They can come in a wide range of colours if upholstered in a fabric of choice.

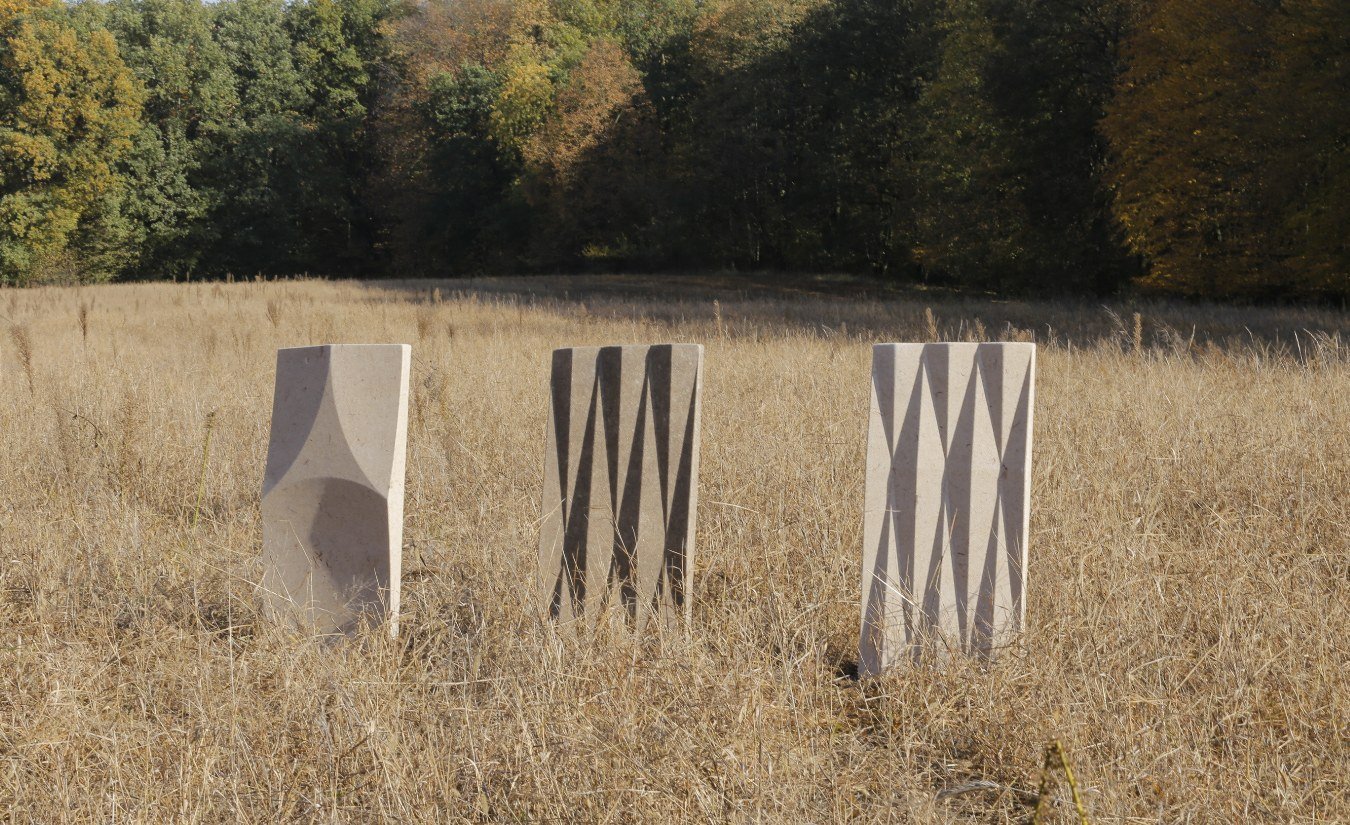

Inspired by nature, we’ve designed a modular solution in the shape of a harmonious relief. Form and technology go hand in hand to benefit interior acoustics and the well-being of the planet.
VANK_ELLIPSE
DIVERSITY OF FORM
DIVERSITY OF FORM

DIVERSITY OF FORM

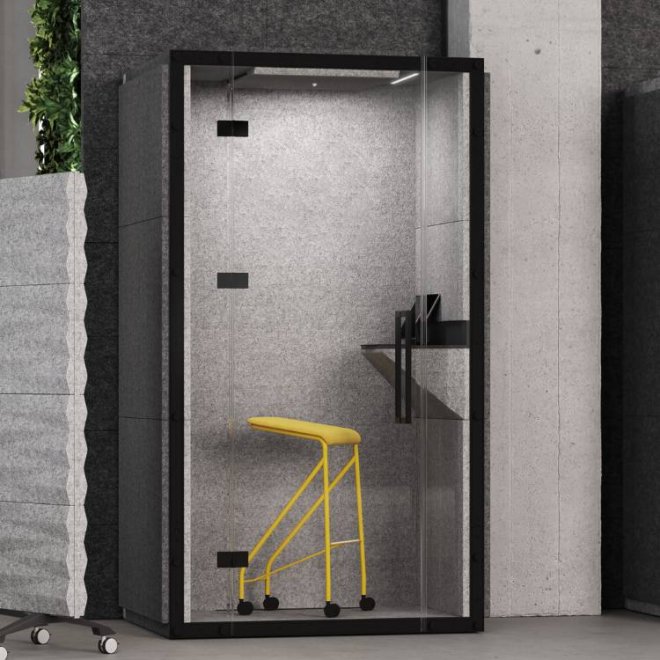

The pods come in many combinations: with one or two glass walls, with the body featuring the ellipse pattern on two sides side or one side only (the other is upholstered in plain fabric).
GRAPHIC LED
GRAPHIC LED

GRAPHIC LED

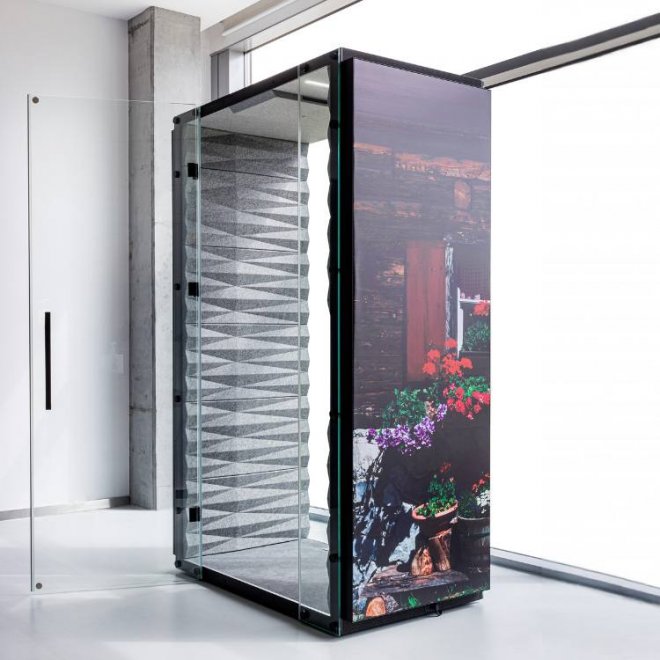

The pod is available in the GRAPHIC_LIGHT version with “Friday” mural artwork in 1 of 3 colours available or with a photo of the client’s choice. LED lighting on exterior walls.

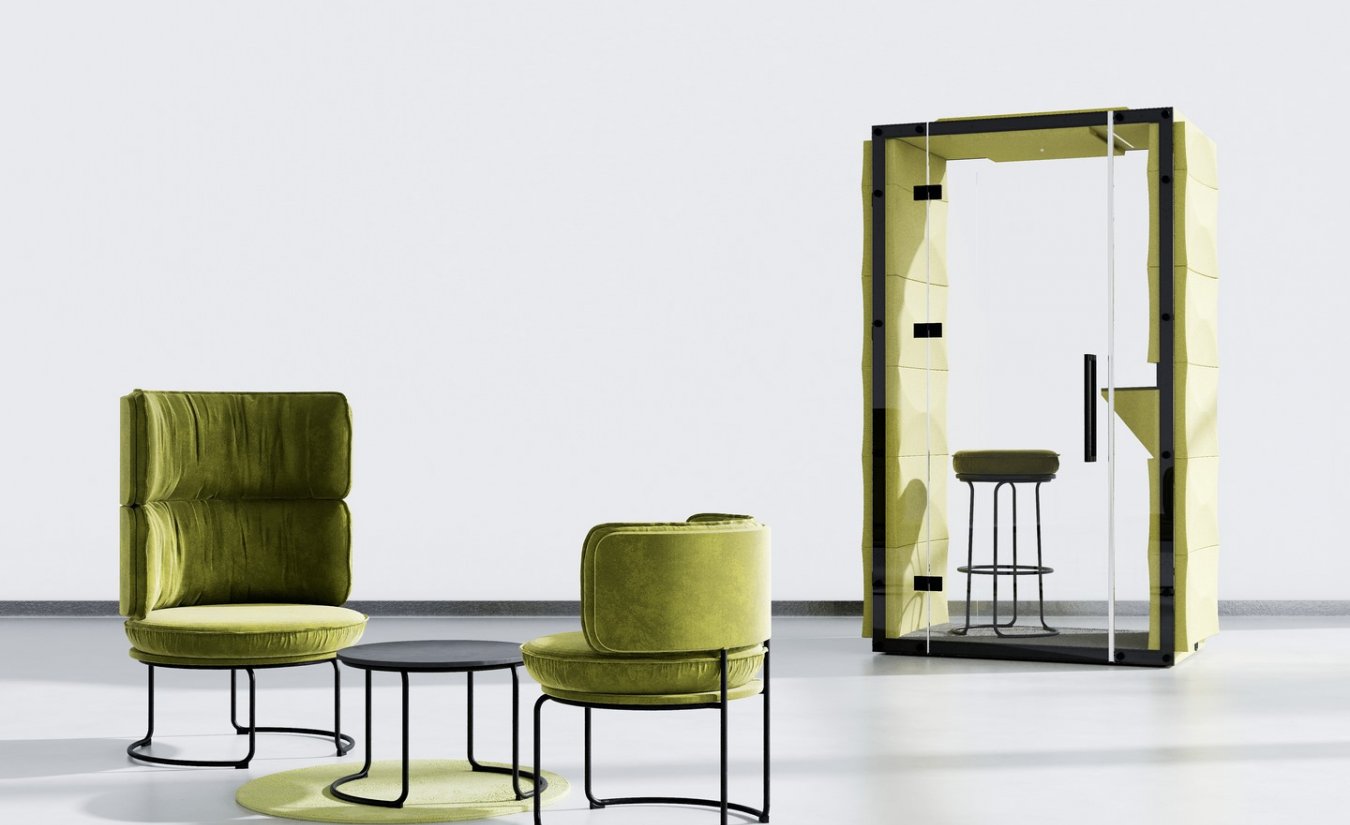

FREEDOM OF FURNISHING
FREEDOM OF FURNISHING

FREEDOM OF FURNISHING

The pods can be furnished with 1 VANK CO, RING or TINI barstool.

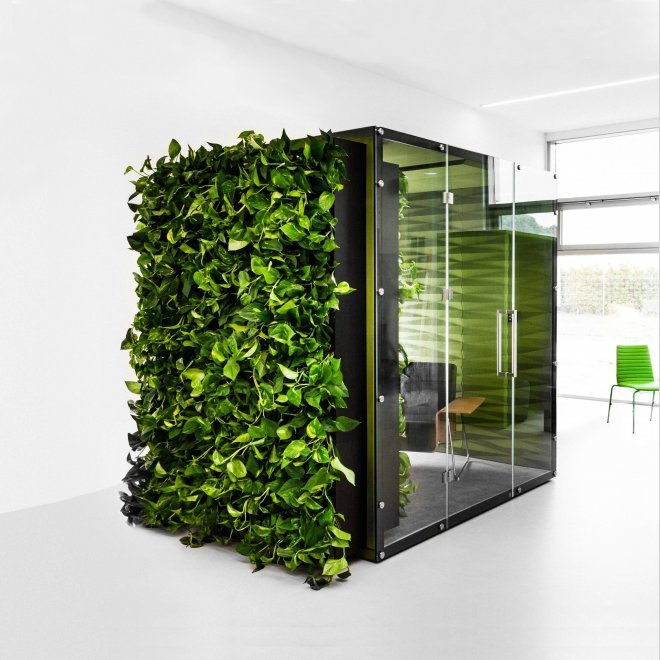

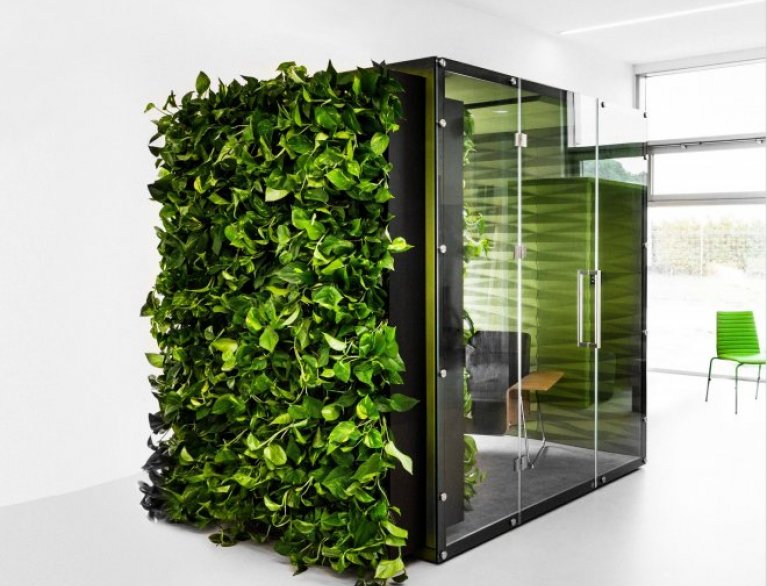

JUNGLE
JUNGLE

JUNGLE

The outer left wall of the pod is finished with a system of modules for growing air purifying potted plants. A green wall in the office reduces employee stress and brings emotional balance and well-being to the workplace.

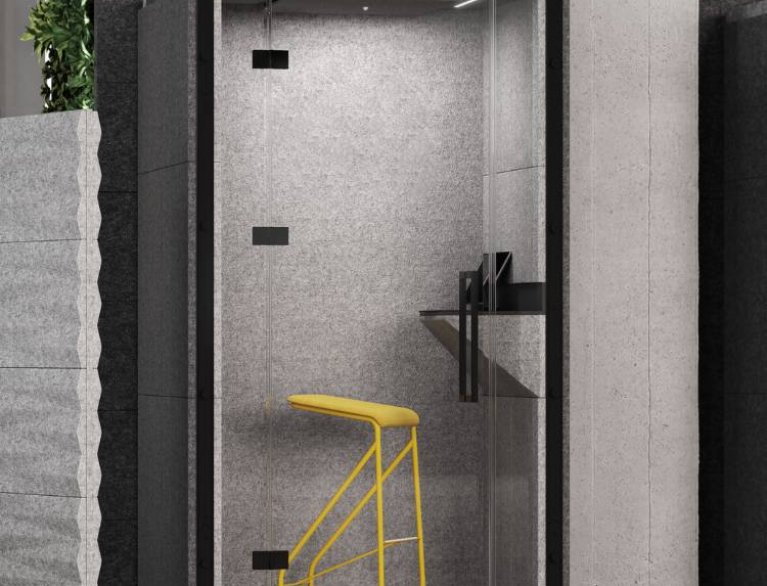

ERGONOMICS
ERGONOMICS

ERGONOMICS

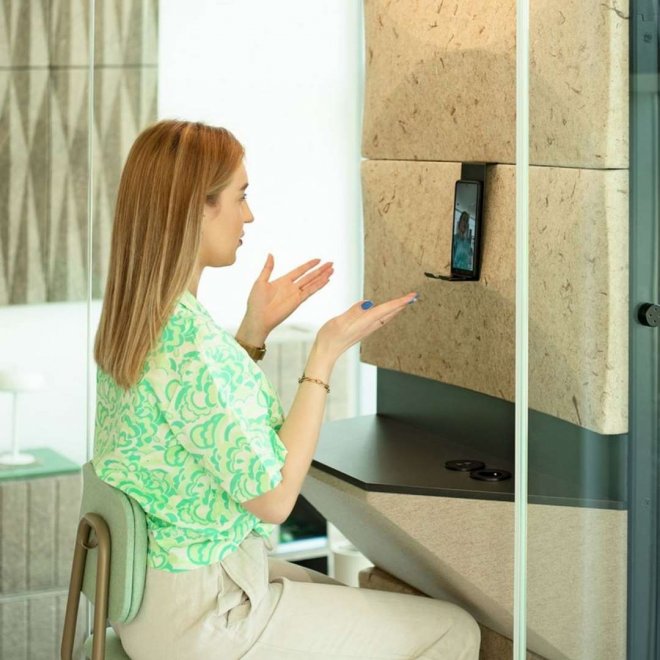

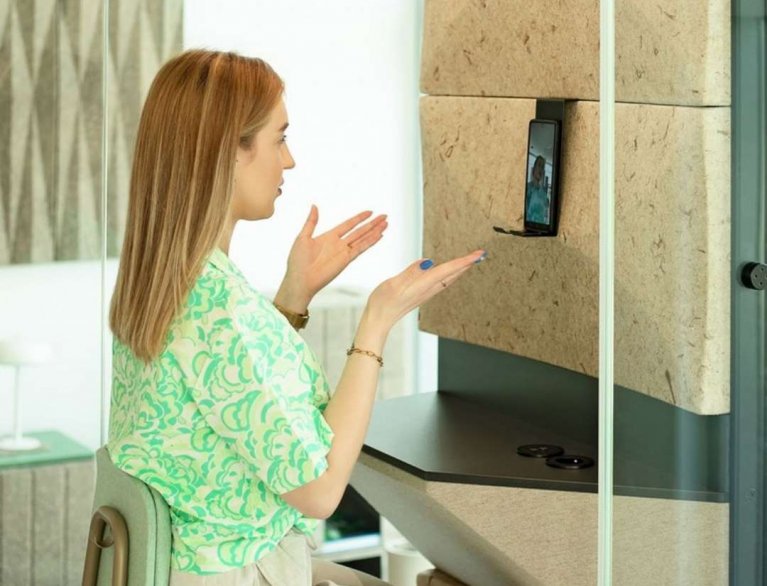

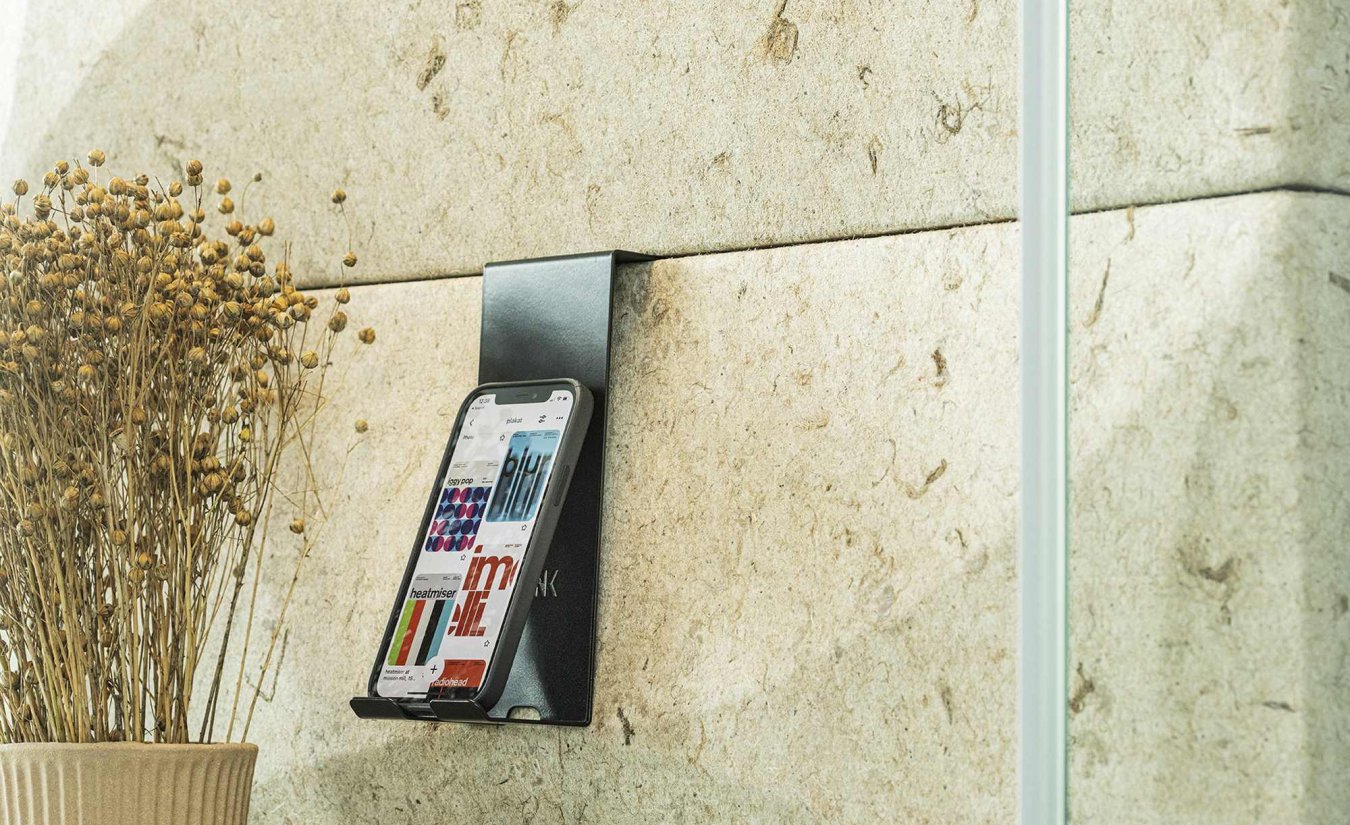

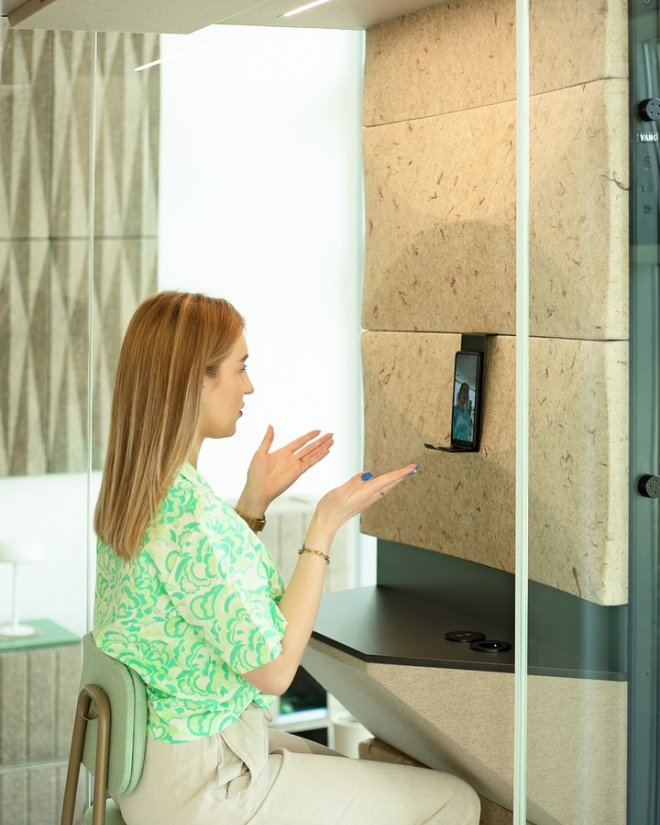

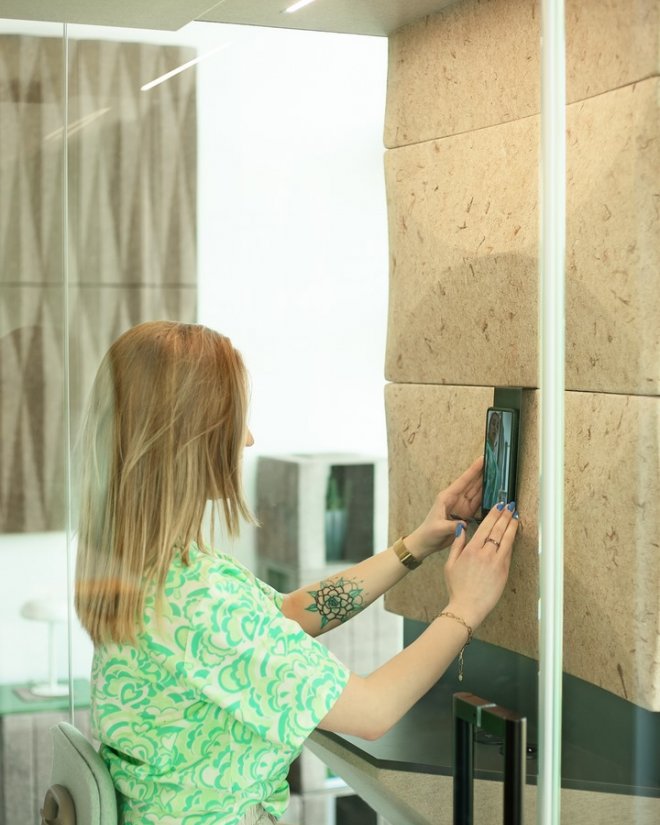

The 1-person pod comes with a laptop shelf that features connection panels. In order to make video conferencing more convenient, we have incorporated a black metal phone holder.
ACOUSTICS
ACOUSTICS

ACOUSTICS

The robustness of the materials and the precision of the assembly translate into a significant reduction in the speech level at D s.a = 30.7 dB, class A.
GREEN MOBILITY
GREEN MOBILITY

GREEN MOBILITY

All VANK acoustic pods can be moved freely at any time — and disassembled and assembled back if necessary. This is possible thanks to the castors fixed to the base and the heavy-duty design — suitable for repeated assembly.
TECHNOLOGY
TECHNOLOGY

TECHNOLOGY

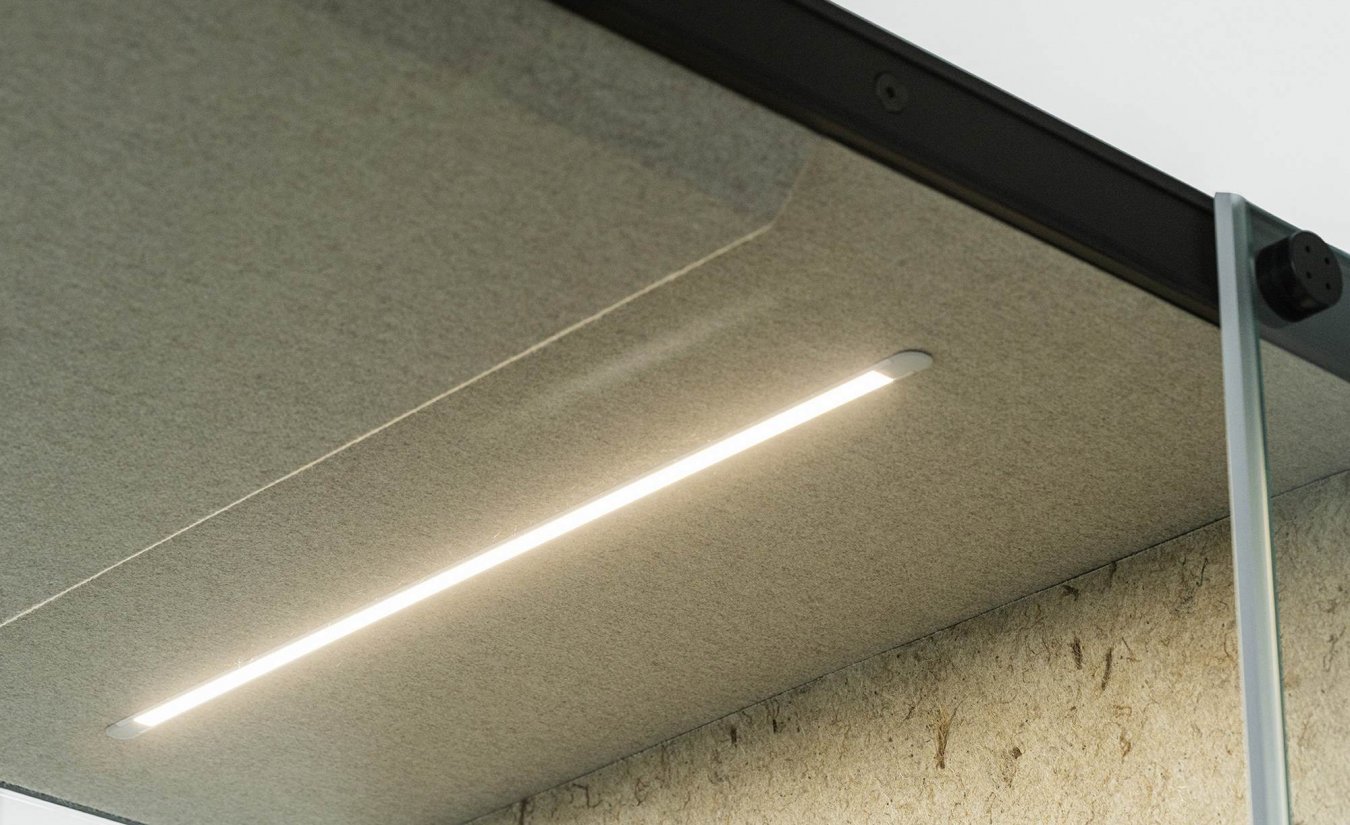

The 4,000 K lighting and ventilation systems are activated by means of a motion detector. A 1x230V+USB (charger) connection panel is fitted in the top of the shelf.
CUSTOMISABILITY
CUSTOMISABILITY

CUSTOMISABILITY

Available 2 pod heights: standard H1=238 or H2=223 cm. Power supply: bottom or coming out of the upper part of the roof.
1
 /
NATURAL BIO-MATERIAL
NATURAL BIO-MATERIAL

NATURAL BIO-MATERIAL

VANK BIO acoustic panels are made from a biocomposite based on fibrous plants, i.e. flax and hemp.
rPET
rPET

rPET

VANK rPET acoustic panels are made from non-woven recycled plastic. They can come in a wide range of colours if upholstered in a fabric of choice.
DIVERSITY OF FORM
DIVERSITY OF FORM

DIVERSITY OF FORM

The pods come in many combinations: with one or two glass walls, with the body featuring the ellipse pattern on two sides side or one side only (the other is upholstered in plain fabric).
GRAPHIC LED
GRAPHIC LED

GRAPHIC LED

The pod is available in the GRAPHIC_LIGHT version with “Friday” mural artwork in 1 of 3 colours available or with a photo of the client’s choice. LED lighting on exterior walls.
FREEDOM OF FURNISHING
FREEDOM OF FURNISHING

FREEDOM OF FURNISHING

The pods can be furnished with 1 VANK CO, RING or TINI barstool.
JUNGLE
JUNGLE

JUNGLE

The outer left wall of the pod is finished with a system of modules for growing air purifying potted plants. A green wall in the office reduces employee stress and brings emotional balance and well-being to the workplace.
ERGONOMICS
ERGONOMICS

ERGONOMICS

The 1-person pod comes with a laptop shelf that features connection panels. In order to make video conferencing more convenient, we have incorporated a black metal phone holder.
ACOUSTICS
ACOUSTICS

ACOUSTICS

The robustness of the materials and the precision of the assembly translate into a significant reduction in the speech level at D s.a = 30.7 dB, class A.
GREEN MOBILITY
GREEN MOBILITY

GREEN MOBILITY

All VANK acoustic pods can be moved freely at any time — and disassembled and assembled back if necessary. This is possible thanks to the castors fixed to the base and the heavy-duty design — suitable for repeated assembly.
TECHNOLOGY
TECHNOLOGY

TECHNOLOGY

The 4,000 K lighting and ventilation systems are activated by means of a motion detector. A 1x230V+USB (charger) connection panel is fitted in the top of the shelf.
CUSTOMISABILITY
CUSTOMISABILITY

CUSTOMISABILITY

Available 2 pod heights: standard H1=238 or H2=223 cm. Power supply: bottom or coming out of the upper part of the roof.

__ Acoustics

ABSORPTION

SOUND INSULATION

SPEECH LEVEL REDUCTION

ABSORPTION

1 / 3

The VANK panels have excellent sound absorption properties. According to ISO 354:2005, their sound absorption coefficient is alpha = 0.90, which places them in the top-rated Class A category of sound-absorbing materials.

In addition, VANK panels, thanks to their three-dimensional structure, also act as diffusers to break up sound. The use of acoustic diffusers helps avoid the echo effect.

1 / 3
More about acustics More about acustics

ABSORPTION

SOUND INSULATION

SPEECH LEVEL REDUCTION

SOUND INSULATION

2 / 3

The box has a unique wall construction that includes multiple layers and provides excellent sound insulation. This helps to reduce reverberation both inside the box and in the surrounding area.

Tests carriedout in accordance with ISO 10140-2:2011 showed high sound insulation of the VANK_BOX at Rw= 45 dB.

2 / 3
More about acustics More about acustics

ABSORPTION

SOUND INSULATION

SPEECH LEVEL REDUCTION

SPEECH LEVEL REDUCTION

3 / 3

The robustness of the materials, the excellence of the connections and the precision of the assembly work guarantee a significant reduction in the level of speech and the suppression of voices from inside the booth, so that the confidentiality of conversations is preserved.

Tests carried out in accordance with ISO 23351-1 showed that speech level reduction (DS,A) is 30,7 dB, qualifying VANK acoustic pods in Class A for products of this type.

3 / 3
More about acustics More about acustics
Contact us
Write what information you need
Write what information you need
Contact us
Check where to buy our furniture
Buy

__ Downloads

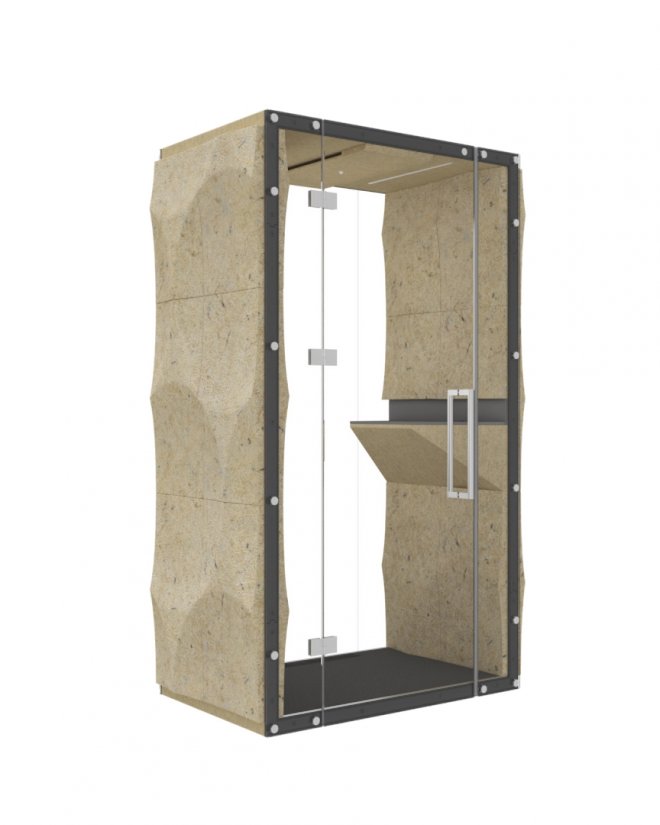

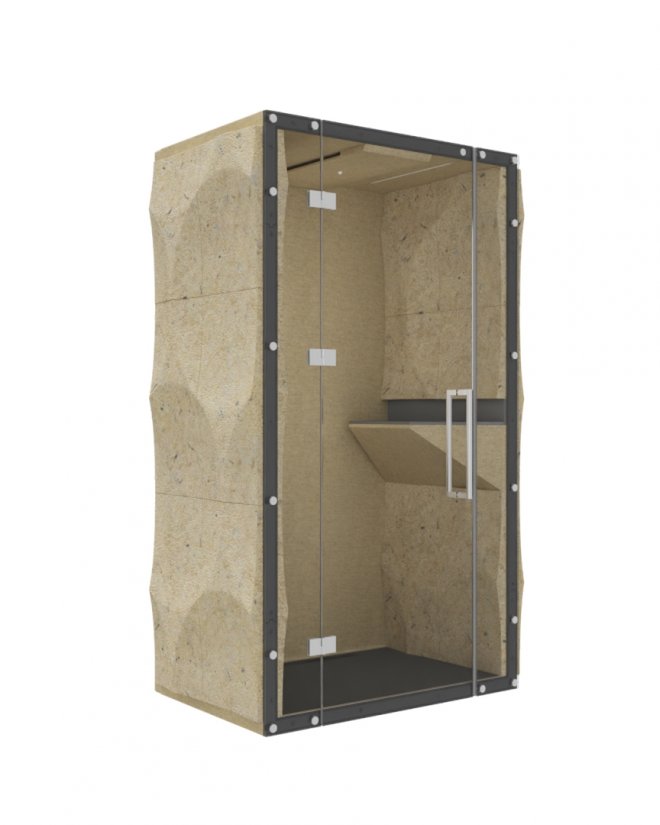

A free-standing upholstered enclosed pod for 1 person; door made of safety glass. Features: a writing shelf, lighting and ventilation systems with a motion sensor, a connection panel: 1x 230V + 2x USB (charger). The special structure pod body, the materials, the fabrics, the carpet flooring, and the high acoustic performance glass used make it possible for the inside of the pod to isolate its user from the surrounding environment.

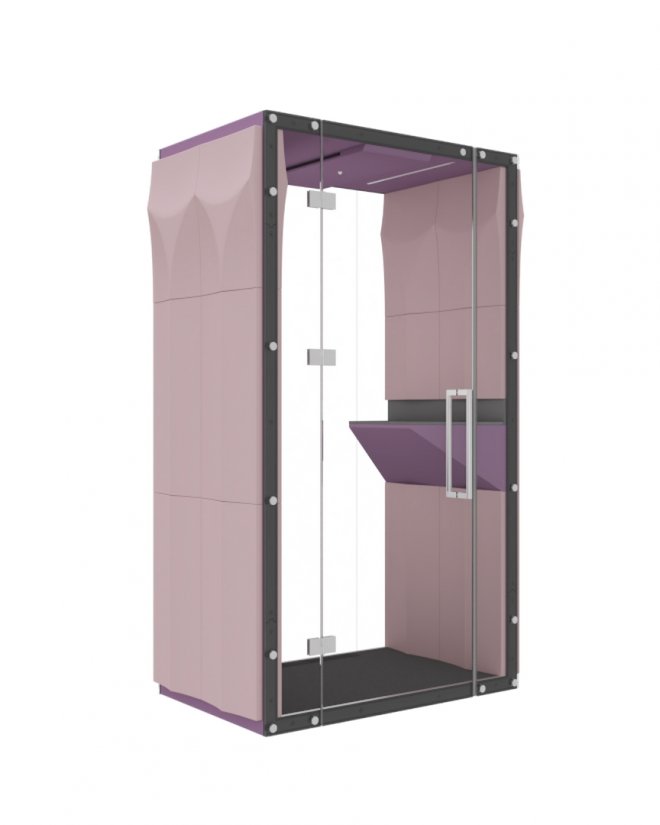

VW122070 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
VW122070 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
Total height: 238 (H1)
223 (H2) cm
Total depth: 94 cm
Total width: 134 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm

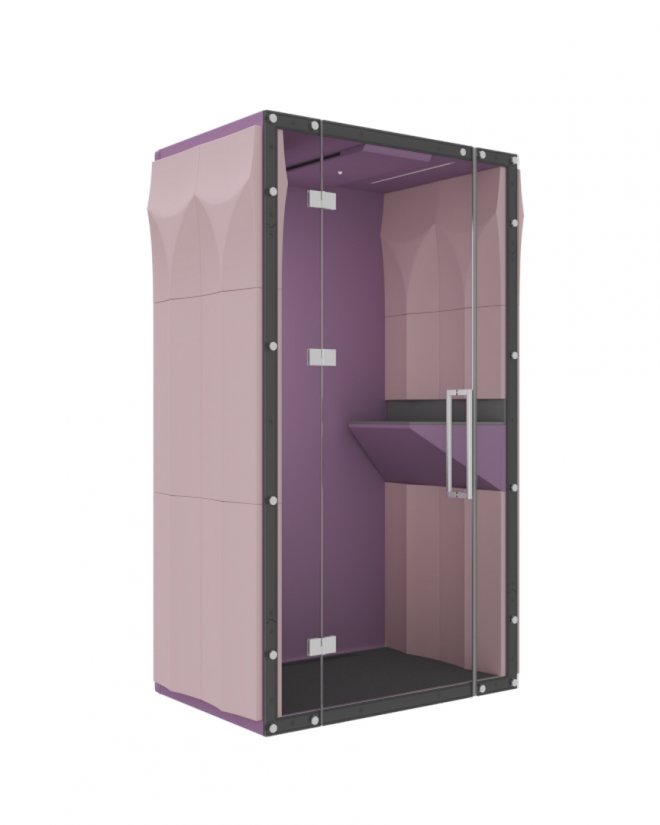

VW122080 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
VW122080 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
Total height: 238 (H1)
223 (H2) cm
Total depth: 94 cm
Total width: 143 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
VW124070 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
VW124070 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
Total height: 238 (H1)
223 (H2) cm
Total depth: 92 cm
Total width: 134 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm

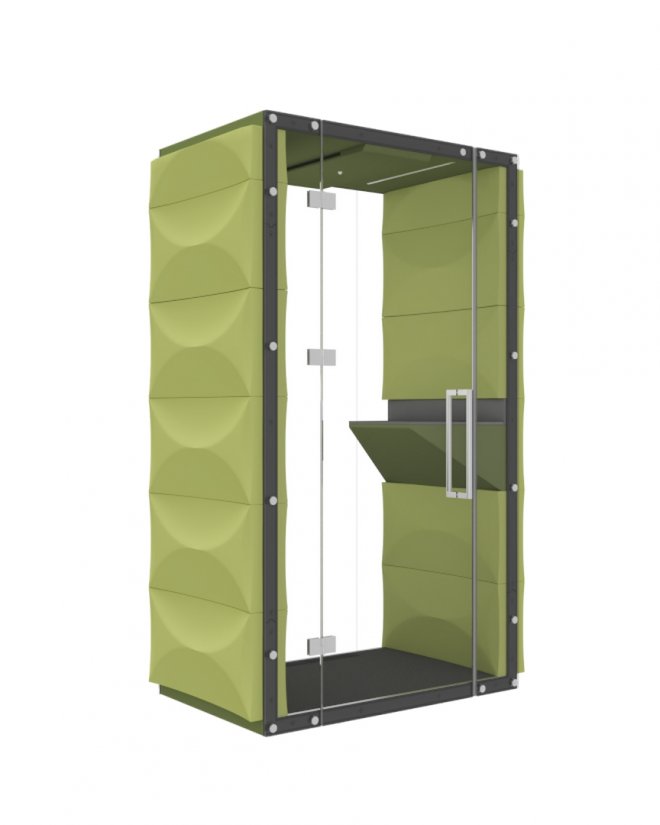

VW124080 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
VW124080 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
Total height: 238 (H1)
223 (H2) cm
Total depth: 92 cm
Total width: 143 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
GLB VW122070 Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
GLB VW122070 Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
Total height: 238 (H1)
223 (H2) cm
Total depth: 94 cm
Total width: 134 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
GLB VW122080 Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
GLB VW122080 Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
Total height: 238 (H1)
223 (H2) cm
Total depth: 94 cm
Total width: 143 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
GLB VW124070 Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
GLB VW124070 Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
Total height: 238 (H1)
223 (H2) cm
Total depth: 92 cm
Total width: 134 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
GLB VW124080 Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
GLB VW124080 Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
Total height: 238 (H1)
223 (H2) cm
Total depth: 92 cm
Total width: 143 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
VW122070 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
VW122070 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
Total height: 238 (H1) 223 (H2) cm
Total depth: 94 cm
Total width: 134 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
VW122080 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
VW122080 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
Total height: 238 (H1) 223 (H2) cm
Total depth: 94 cm
Total width: 143 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
VW124070 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
VW124070 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
Total height: 238 (H1) 223 (H2) cm
Total depth: 92 cm
Total width: 134 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
VW124080 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
VW124080 ELLIPSE COLUMN Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
Total height: 238 (H1) 223 (H2) cm
Total depth: 92 cm
Total width: 143 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
GLB VW122070 Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
GLB VW122070 Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
Total height: 238 (H1) 223 (H2) cm
Total depth: 94 cm
Total width: 134 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
GLB VW122080 Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
GLB VW122080 Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
Total height: 238 (H1) 223 (H2) cm
Total depth: 94 cm
Total width: 143 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
GLB VW124070 Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
GLB VW124070 Pod for 1 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
Total height: 238 (H1) 223 (H2) cm
Total depth: 92 cm
Total width: 134 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
GLB VW124080 Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
GLB VW124080 Pod for 1 person; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
Total height: 238 (H1) 223 (H2) cm
Total depth: 92 cm
Total width: 143 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 80 cm
Internal width: 107 cm
ACOUSTICS & WELLBEING
ACOUSTICS & WELLBEING
VANK_WELLBIOING 2024
VANK_WELLBIOING 2024
Inclusive workspaces
Inclusive workspaces

PCON is a simple piece of software for designing functional settings or detailed arrangements — including planning the necessary budget. You’re most welcome to make use of the OFML data of our products, prepared specifically with this 3D planning programme in mind.

GO TO VANK PCON DIRECTORY

RPET

rPET GREY
rPET GRAPHITE

BIOCOMPOSIT

BIO LIGHT
BIO DARK

SONUS / II PRICE GROUP

A heavy-duty acoustic mélange fabric with a felt finish. Composition: 10% viscose, 18% nylon, 72% polyester, weight: 200 g/m2. Environmental label: EU Ecolabel, Indoor Advantage™ “Gold”, Standard 100 by OEKO-TEX®.

fhr01
fhr02
fhr03
fhr05
fhr06
fhr07
fhr09
fhu04
fhu08
fhu10
fhu14
fhu15

BLAZER LITE / II PRICE GROUP

A heavy-duty acoustic and biodegradable fabric containing natural fibres. Felt finish and mélange colours. Composition: 100% renewable responsibly farmed wool, weight: 355 g/m2. Environmental label: Indoor Advantage™ “Gold”.

lth39
lth41
lth47
lth50
lth55
lth56
lth63
lth67

WELL / II PRICE GROUP

Composition: 92% wool, 8% polyamide, weight: 457 g/m2, abrasion resistance: ≥ 200,000 Martindale cycles.

02
14
16
29
39
42
44
49
62
63
64

SYNERGY / III PRICE GROUP

A heavy-duty fabric with a fine felt finish, containing natural fibres, available in 75 colours.  Composition: 95 % renewable responsibly farmed wool, 5% nylong, weight: 400 g/m2, abrasion resistance: ≥ 100,000 Martindale cycles. Environmental label: EU Ecolabel, Indoor Advantage™ “Gold”.

lds20
lds05
lds07
lds08
lds16
lds17
lds18
lds19
lds21
lds22
lds23
lds24
lds25
lds26
lds27
lds28
lds29
lds31
lds32
lds33
lds34
lds35
lds36
lds37
lds39
lds40
lds41
lds42
lds43
lds44
lds45
lds46
lds47
lds48
lds49
lds50
lds51
lds52
lds53
lds54
lds55
lds56
lds38
lds57
lds58
lds60
lds59
lds61
lds62
lds63
lds64
lds65
lds66
lds67
lds68
lds69
lds70
lds71
lds72
lds73
lds74
lds75
lds76
lds77
lds78
lds79
lds80
lds81
lds82
lds83
lds84
lds85
lds86
lds87
lds88

FLOORING

F-GR
F-BE

DAYBREAK2 / CURTAINS

The Curtains Daybreak2 from the renowned KVADRAT brand, designed by Patricia Urquiola. An irregular texture and a look reminiscent of natural linen mark these curtains. They also positively impact the privacy, acoustics, lighting, and overall aesthetics of our pods, and can be offered with neuroatypical people in mind.

0101
0172
0181
0301
0352
0402
0452
0521
0722
0772
0902
0942

TABLE TOPS

B-GR
B-WH

BASE

S-BKS
S-WHS

__ Collection ELLIPSE

The ELLIPSE collection of acoustic pods, walls, wall and desk panels has been created in response to the need for a space for conversations, for meetings that require a break from the influx of external stimuli and focus on what really matters. As a means to maintain the balance between personal space and teamwork. ELLIPSE panels with their three-dimensional structure act as diffusers to break up sound waves, bringing well-being to the office. They can be made of a biocomposite or non-woven rPET — grey or upholstered. Such acoustic solutions will work great not only in office environments, but also in hotels, public office buildings, at airports, and in all sorts of event, industrial, and logistics facilities.
ELLIPSE
ELLIPSE_0
ELLIPSE_1
VANK ELLIPSE
Explore the entire furniture collection ELLIPSE

__ Case Studies

Ørsted in the Varso office building in Warsaw / Poland

The design of the Ørsted office is a harmonious blend of Scandinavian simplicity and a gently activating functional space.

...
More
CASE STUDIES
Energy company, Brussels / Belgium

It’s always a pleasure to see new wall compositions featuring the ELLIPSE panel! This time, it was used in the latest project - a 280 m² office in Brussels for a leading energy company.

...
More
CASE STUDIES
blox AG and Zibris AG / Switzerland

Blox is a company based in Rothenburg, Switzerland that offers consulting services to architects, interior designers, and investors for office furnishings. They also distribute innovative products within the interior design industry.

...
More
CASE STUDIES
Concordia Design / Poland

Within the coworking space, freelancers and companies will find well-equipped common areas, kitchen, chill-out rooms, and conference rooms.

...
More
CASE STUDIES
ARUP, Warsaw / Poland

Together with Arup and Workplace, we are creating a new direction in design. A new Arup office space has been created in Warsaw. Centred around the regeneration of people and the planet. The project involved dozens of experts of various specialisations...

More
CASE STUDIES
Capmo, Munich / Germany

Capmo, the construction industry disruptor founded in 2018, has moved into a new office and equipped part of it with their sustainable VANK_ELLIPSE_BIO_BOX single pods.

...
More
CASE STUDIES
Atos, Paris / France

Atos is a French multinational information technology (IT) service and consulting company headquartered in Bezons, France and offices worldwide.

...
More
CASE STUDIES
E-commerce company near Poznań, Poland

An e-commerce company located at Panattoni Park near Poznań recently completed a project to fit-out their office space, conference and training rooms, meeting rooms, canteen, reception and collaboration area, gym, and a room for nursing mothers.

...
More
CASE STUDIES
Town Hall Oss / Netherlands

After conducting noise measurements at the Oss City Hall building, it was found that the meeting room required improvement in terms of its reverberation time.

...
More
CASE STUDIES
Scandinavian company / Poland

The interior design for a Scandinavian company operating in the maritime market in Szczecin included the development of five floors in an office building with an area of 2,800 m2.

...
More
CASE STUDIES

__ Add to arrangement

DIAMOND acoustic pods for 1
DIAMOND open acoustic pods
ELLIPSE acoustic pods
FLAT acoustic pods
WAVE acoustic pods for 1
WAVE acoustic pods
FLAT acoustic pods for 1
FLAT open acoustic pods
DIAMOND acoustic pods
ELLIPSE open acoustic pods
DIAMOND acoustic pods for 1
DIAMOND open acoustic pods
