Arranging the available workspace in the right way by providing employees with space for individual work, video conferencing, meetings, and brainstorming makes the workplace much more employee-friendly. Such arrangements are possible thanks to acoustic pods — VANK’s mobile rooms designed for 2, 3, 4, and 6. Thanks to the special design and the use of sound-absorbing materials, the pods effectively block outside noise and suppress the sound generated inside. ELLIPSE panels with their three-dimensional structure act as diffusers to break up sound waves, bringing well-being to the office. They can be made of a biocomposite or non-woven rPET — grey or upholstered. The pods feature a safety glass door and come with connection panels, a ventilation system, energy-efficient LED ceiling lighting, a sound system, a TV screen mount, and a control panel which measures: lighting intensity, air purity, and noise levels. The pod is also available in a mobile version — on wheels.
Acoustic pods will work well not only in office environments but also at event venues, in hotels, in public office buildings, and at airports.
Awards
/mixology-logo.svg){kind=logo}
MIXOLOGY 2023
The Mixology Awards by Mix Interiors Magazine celebrate the very best projects, products and people in commercial interior design, with a judging panel comprising key players in the industry. It’s a great honour to be recognised for our efforts on this new version of VANK_BOX.
GERMAN SUSTAINABILITY AWARD DESIGN 2022
VANK’s natural composite bio-panel and eco-transformation have been recognised by the jury of the German Sustainability Award Design competition, and the panel was named a finalist in the 2022 edition of the competition.
GREEN PRODUCT AWARD 2022
The VANK BIO panel, available in 5 different patterns, won the Green Product Award 2022 and received a special mention from a 26-member jury — Editor’s Choice — in the Interior & Lifestyle category. The panel is an essential element of VANK acoustic pods, mobile walls, and wall installations.
/4-crop-0-70.png){kind=logo}
/4-crop-0-84.png){kind=logo}
ICONIC AWARDS 2022 Winner - BIO
The design of VANK’s BIO acoustic pod received “The Winner” title in the Innovative Interiors category of the ICONIC AWARDS 2022 competition organised by the German Design Council.
__ Distinguishing features

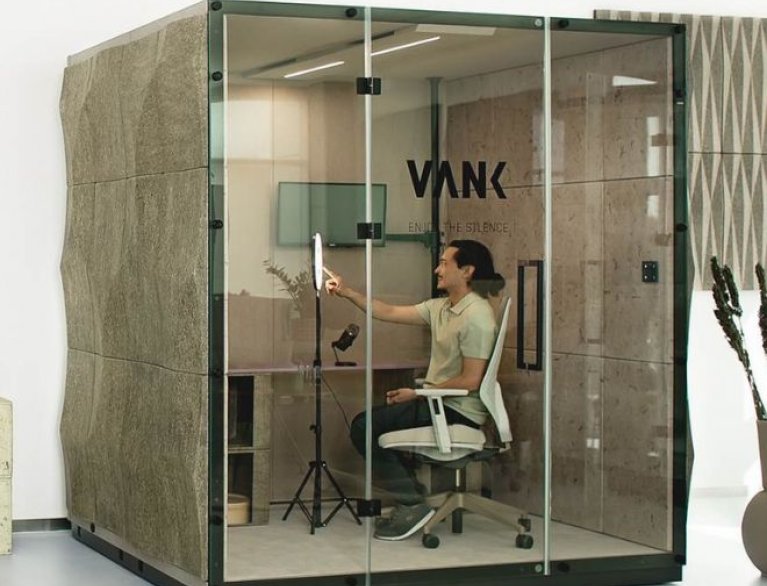

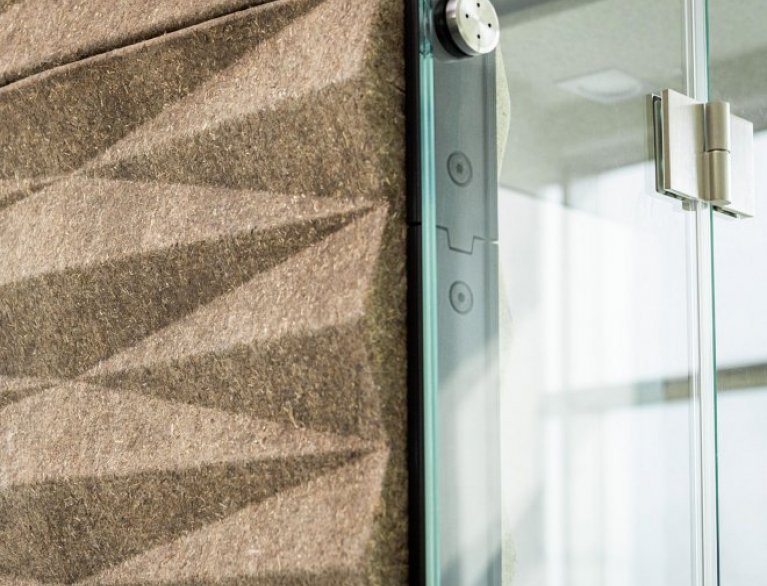

NATURAL BIO-MATERIAL

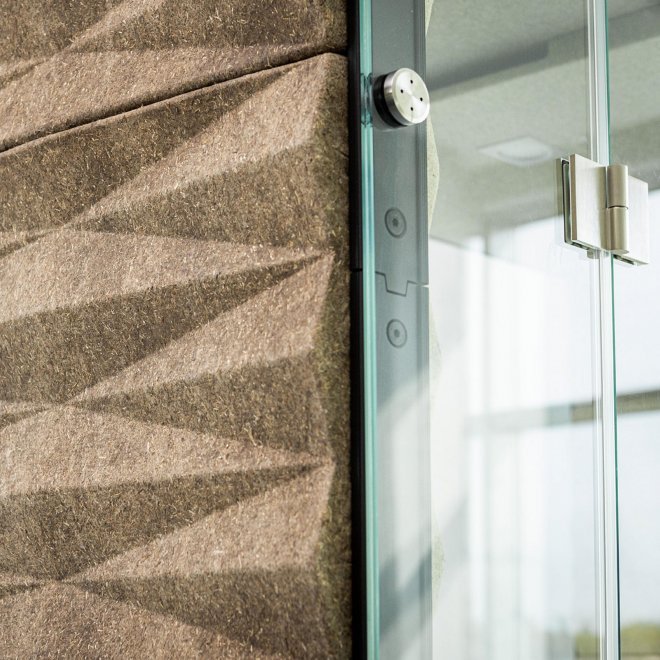

VANK BIO acoustic panels are made from a biocomposite based on fibrous plants, i.e. flax and hemp.
rPET
VANK rPET acoustic panels are made from non-woven recycled plastic. They can come in a wide range of colours if upholstered in a fabric of choice.

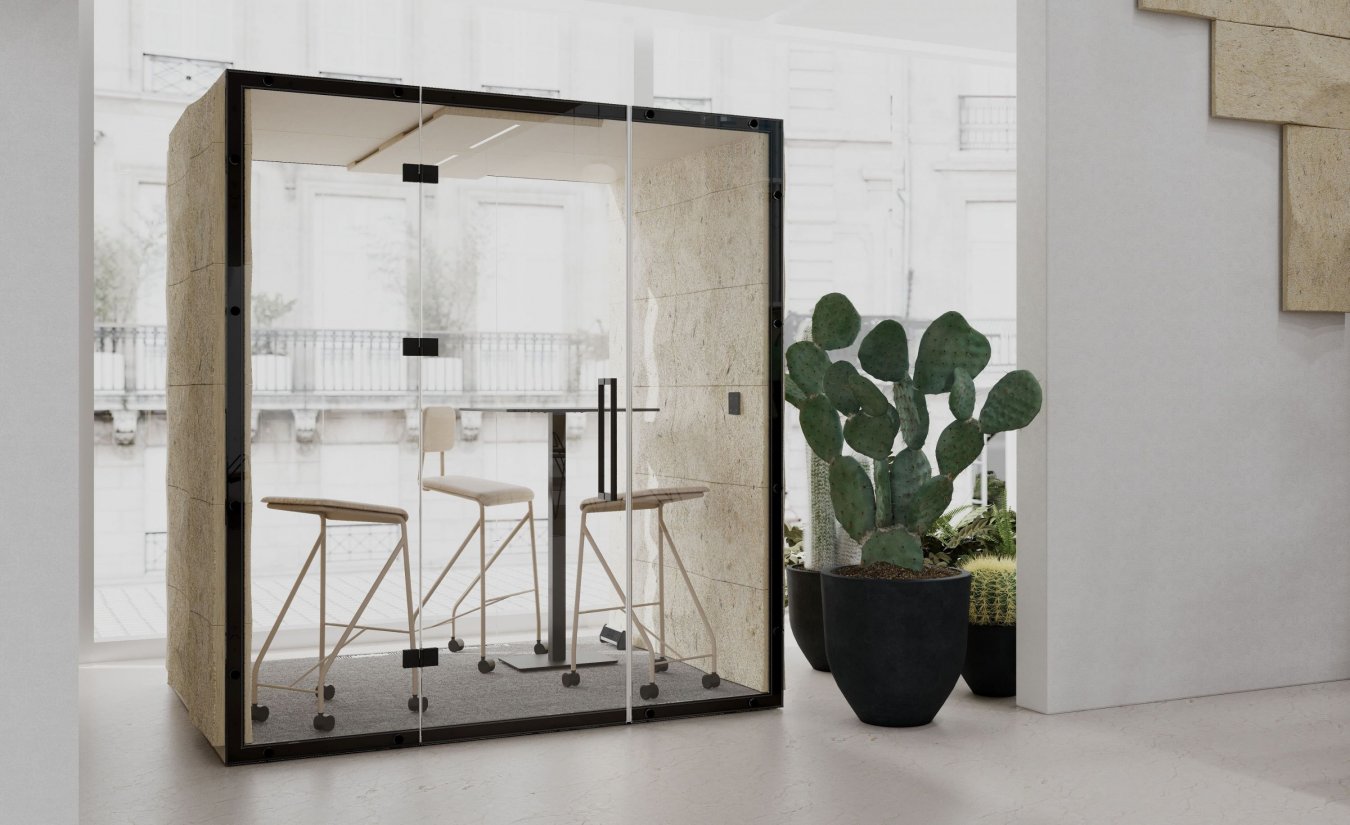

Inspired by nature, we’ve designed a modular solution in the shape of a harmonious relief. Form and technology go hand in hand to benefit interior acoustics and the well-being of the planet.

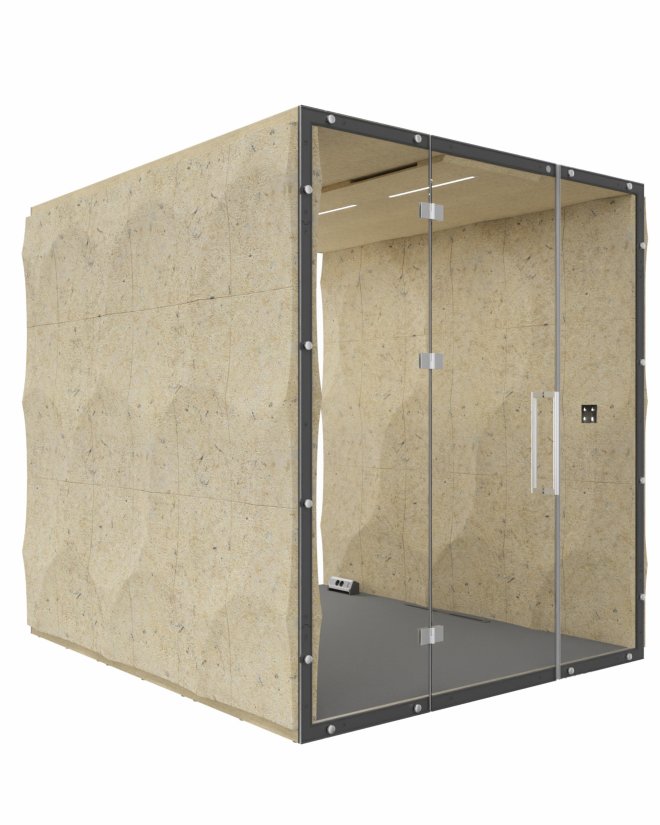

VANK_ELLIPSE

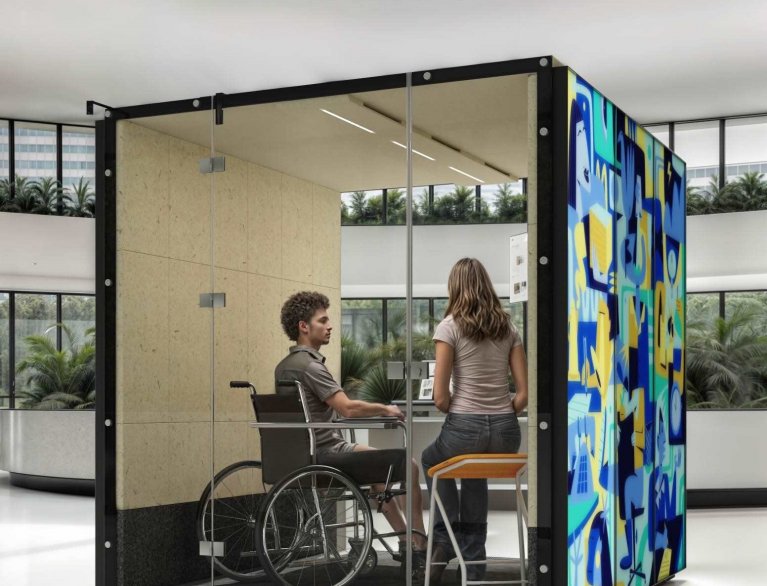

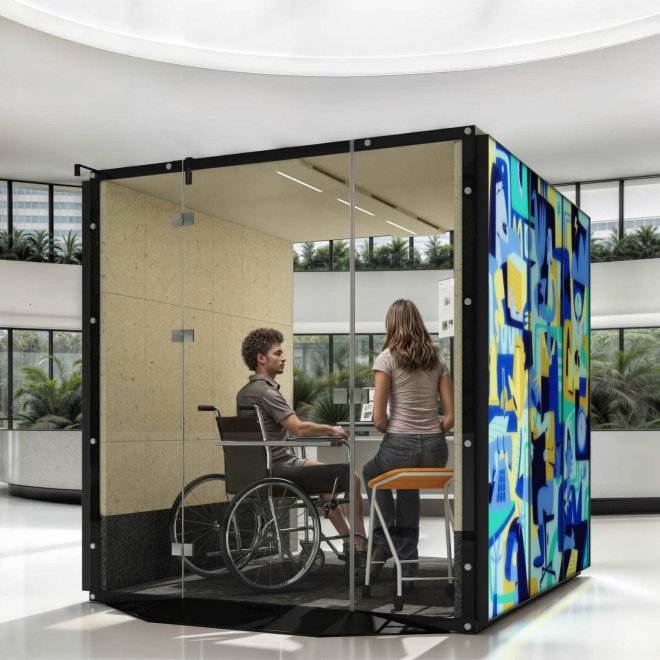

INCLUSIVENESS
VANK_BOX_EASY is a pod adapted to the needs of wheelchair users, designed as a personal workstation.

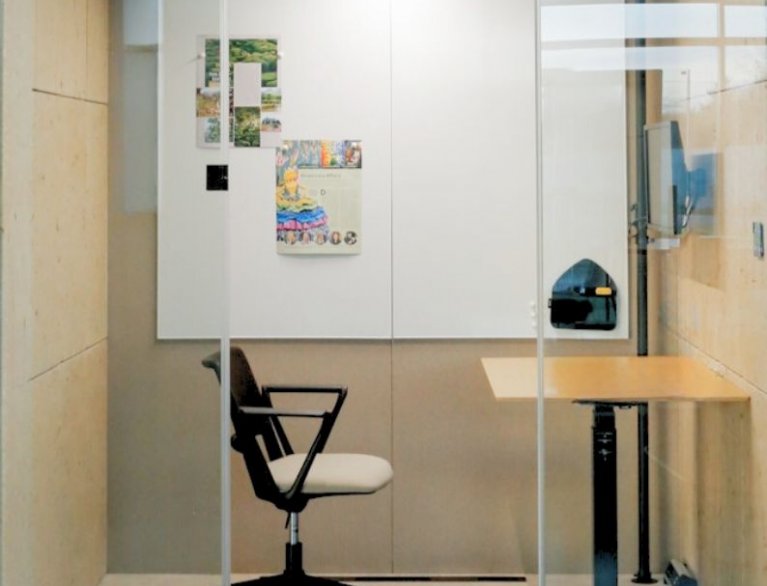

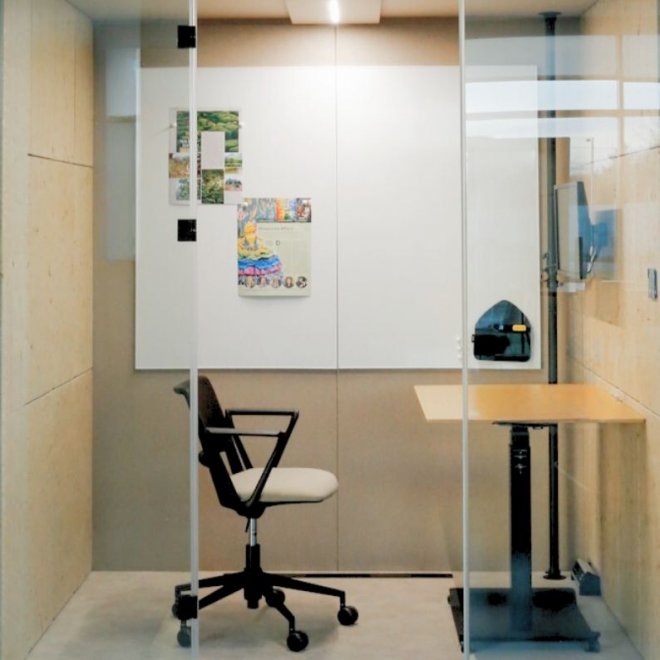

CREATIVE
The magnetic whiteboard can be used for writing and creating moodboards. A perfect tool for a brainstorming session inside the pod or nearby, turning the pod and its surroundings into an informal meeting space.

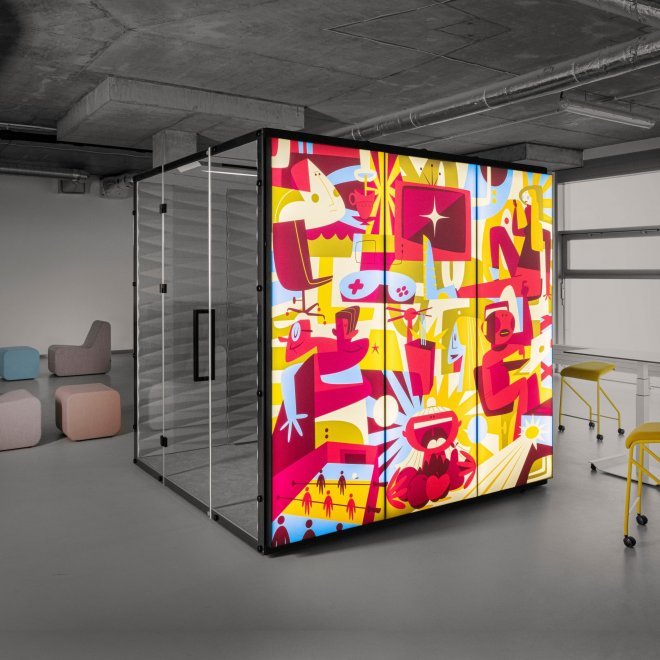

GRAPHIC LED

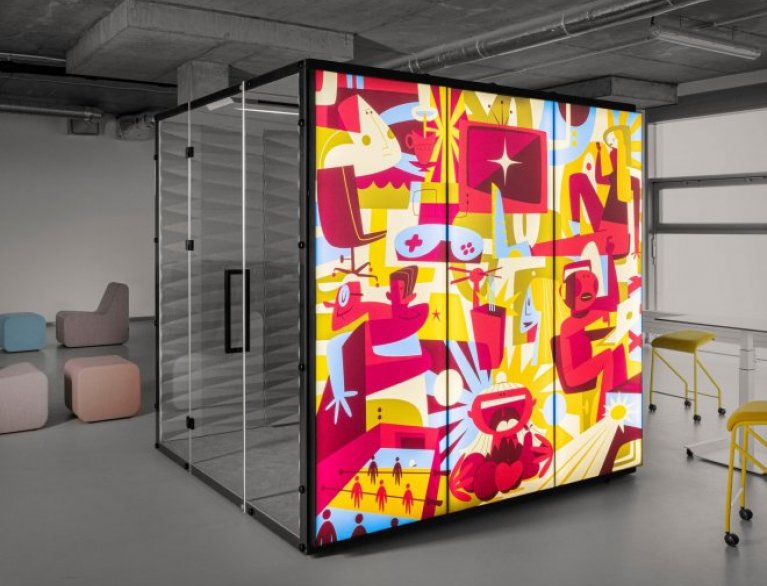

The pod is available in the GRAPHIC_LIGHT version with “Friday” mural artwork in 1 of 3 colours available or with a photo of the client’s choice. LED lighting on exterior walls.

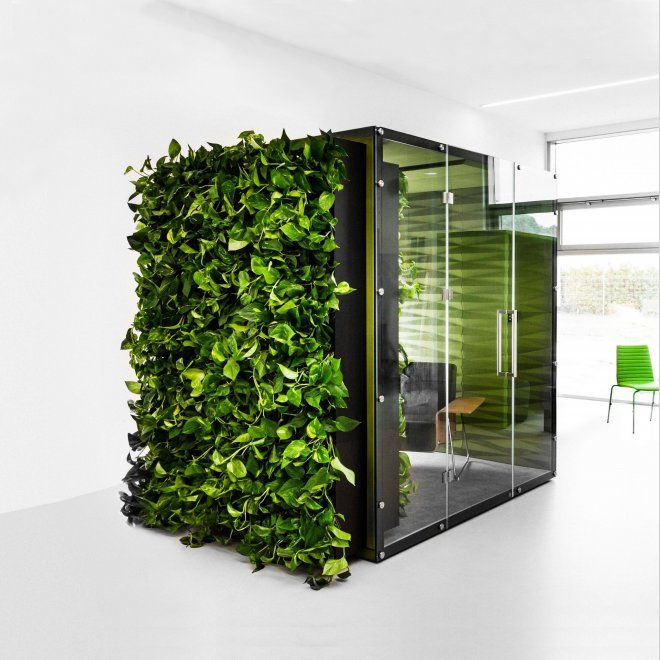

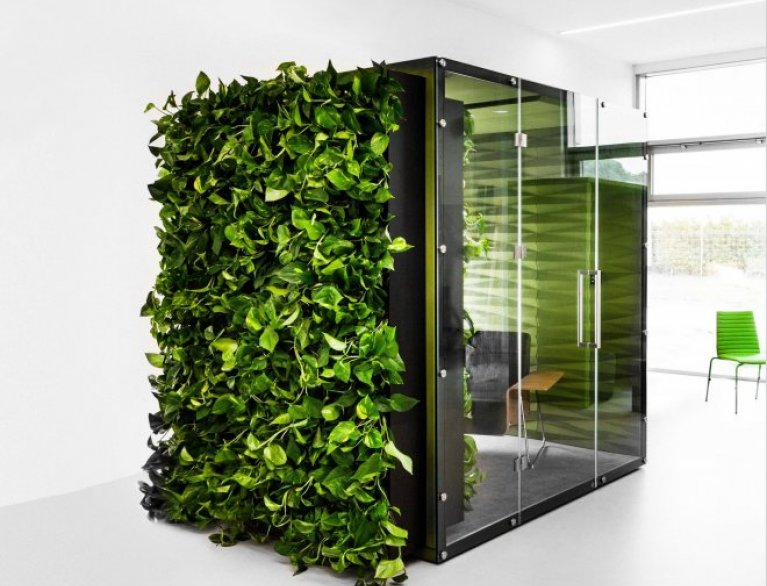

JUNGLE
The outer left wall of the pod is finished with a system of modules for growing air purifying potted plants. A green wall in the office reduces employee stress and brings emotional balance and well-being to the workplace.

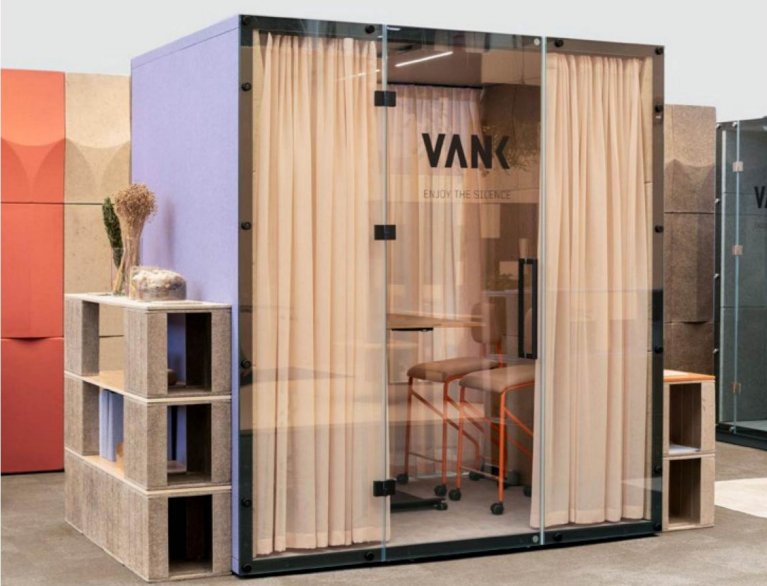

INTIMACY AND MOOD
When there’s need for privacy, focus or a special mood to accompany multi-user sessions, VANK_BOX_MOOD offers the single-colour translucent Daybreak2 curtains from Kvadrat.

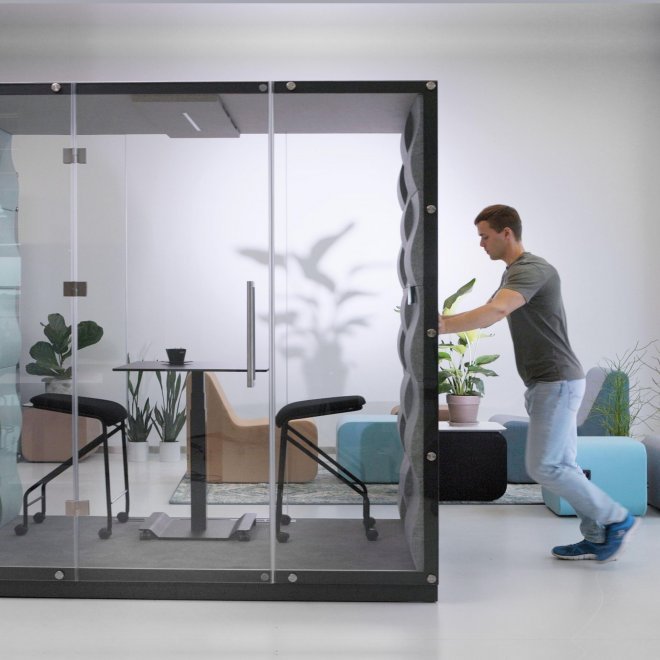

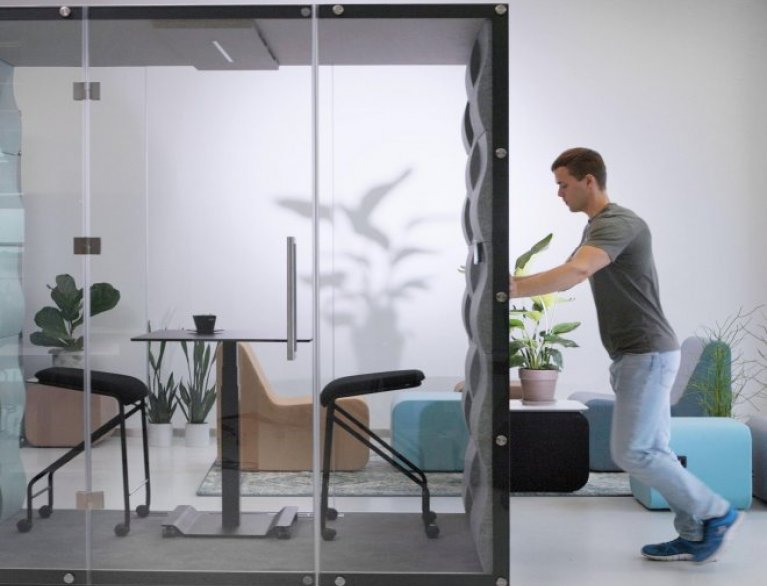

GREEN MOBILITY
All VANK acoustic pods can be moved freely at any time — and disassembled and assembled back if necessary. This is possible thanks to the castors fixed to the base and the heavy-duty design — suitable for repeated assembly.
FREEDOM OF FURNISHING
The freedom to furnish the pod with furniture makes it easy to adapt it to the current needs of the organisation. Available options include standard seats or collections like CO, CELOO, RING, V6, and PEEL.
TV MOUNT
To provide proper space for video conferencing, our pods feature TV mounts. Depending on the pod type, two kinds of mounts are available: corner or central.
SAFETY GLASS AND FIRE-RETARDANT MATERIALS
All glass elements are made of double-glazed, laminated, and tempered glass, which makes them safe to install and use. The acoustic panels and fabrics have been tested for flame retardancy according to EN 1021-1, EN 1021-2 (cigarette and match).
QUIET AND EFFICIENT VENTILATION
Mechanical supply and exhaust ventilation, providing air exchange during use. Adjustable ventilation with the possibility of ventilating the space before and after meetings in pods for 2 and more.
ADJUSTABLE LED LIGHTING
Neutral light colour — 4,000 K. Illuminance compliant with the standard for office work. Adjustable lighting intensity in pods for 2 and more.
CUSTOMISABILITY

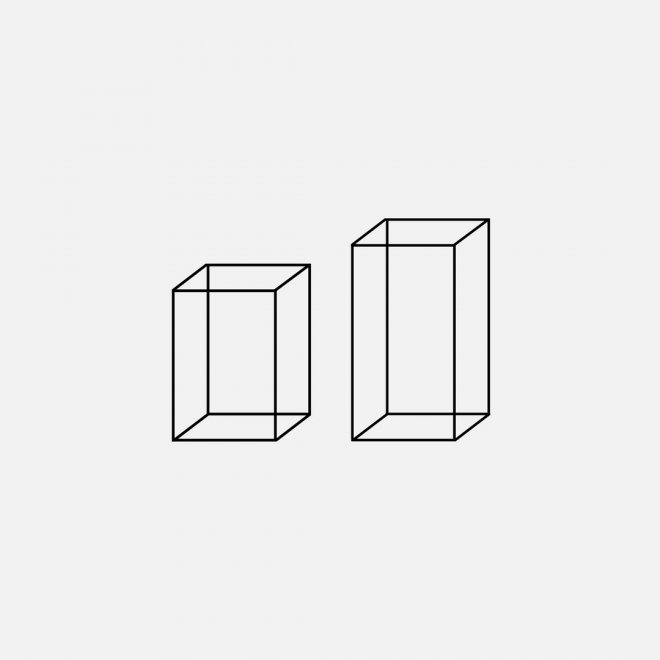

Available 2 pod heights: standard H1=238 or H2=223 cm. Power supply: bottom or coming out of the upper part of the roof.
POWER SUPPLY, POWER SOCKETS, AND USB CHARGERS
IN pods for 2 and more, a 2x230V+2xUSB connection panel is fitted near the floor or in the fixed seats.
1
/
NATURAL BIO-MATERIAL
VANK BIO acoustic panels are made from a biocomposite based on fibrous plants, i.e. flax and hemp.
rPET
VANK rPET acoustic panels are made from non-woven recycled plastic. They can come in a wide range of colours if upholstered in a fabric of choice.
INCLUSIVENESS
VANK_BOX_EASY is a pod adapted to the needs of wheelchair users, designed as a personal workstation.
CREATIVE
The magnetic whiteboard can be used for writing and creating moodboards. A perfect tool for a brainstorming session inside the pod or nearby, turning the pod and its surroundings into an informal meeting space.
GRAPHIC LED
The pod is available in the GRAPHIC_LIGHT version with “Friday” mural artwork in 1 of 3 colours available or with a photo of the client’s choice. LED lighting on exterior walls.
JUNGLE
The outer left wall of the pod is finished with a system of modules for growing air purifying potted plants. A green wall in the office reduces employee stress and brings emotional balance and well-being to the workplace.
INTIMACY AND MOOD
When there’s need for privacy, focus or a special mood to accompany multi-user sessions, VANK_BOX_MOOD offers the single-colour translucent Daybreak2 curtains from Kvadrat.
GREEN MOBILITY
All VANK acoustic pods can be moved freely at any time — and disassembled and assembled back if necessary. This is possible thanks to the castors fixed to the base and the heavy-duty design — suitable for repeated assembly.
FREEDOM OF FURNISHING
The freedom to furnish the pod with furniture makes it easy to adapt it to the current needs of the organisation. Available options include standard seats or collections like CO, CELOO, RING, V6, and PEEL.
TV MOUNT
To provide proper space for video conferencing, our pods feature TV mounts. Depending on the pod type, two kinds of mounts are available: corner or central.
SAFETY GLASS AND FIRE-RETARDANT MATERIALS
All glass elements are made of double-glazed, laminated, and tempered glass, which makes them safe to install and use. The acoustic panels and fabrics have been tested for flame retardancy according to EN 1021-1, EN 1021-2 (cigarette and match).
QUIET AND EFFICIENT VENTILATION
Mechanical supply and exhaust ventilation, providing air exchange during use. Adjustable ventilation with the possibility of ventilating the space before and after meetings in pods for 2 and more.
ADJUSTABLE LED LIGHTING
Neutral light colour — 4,000 K. Illuminance compliant with the standard for office work. Adjustable lighting intensity in pods for 2 and more.
CUSTOMISABILITY
Available 2 pod heights: standard H1=238 or H2=223 cm. Power supply: bottom or coming out of the upper part of the roof.
POWER SUPPLY, POWER SOCKETS, AND USB CHARGERS
IN pods for 2 and more, a 2x230V+2xUSB connection panel is fitted near the floor or in the fixed seats.
__ Acoustics
Write what information you need
Contact us
Check where to buy our furniture
Buy
__ Downloads
Acoustic pods support focused work. Available in versions for 1 person as well as for 2, 3, 4, and 6 people. Features that improve user comfort: LED lighting, ventilation, connection panel. Enclosed pods are equipped with a 4-button wall-mounted touch
panel PA-4 for stepwise adjustment of lighting and ventilation levels, optionally – with a 6-button wall-mounted touch panel PA-6 with stepless adjustment of lighting, stepwise adjustment of ventilation, and a sensor of air purity, lighting, and noise levels; controlled automatically or manually. Connection panels are fitted in the floor or the seat. If the pod features seats, the connection panel is fitted in the front side of the seat. The special structure pod body, the materials, the fabrics, the carpet flooring, and the high acoustic performance glass used make it possible for the inside of the pod to isolate its user from the surrounding environment.
VW222070 ELLIPSE COLUMN Pod for 2 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 94 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
VW222080 ELLIPSE COLUMN Pod for 2 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 94 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
VW224070 ELLIPSE COLUMN Pod for 2 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 92 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
VW224080 ELLIPSE COLUMN Pod for 2 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 92 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
VW322070 ELLIPSE COLUMN Pod for 3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 134 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
VW322080 ELLIPSE COLUMN Pod for 3 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 134 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
VW324070 ELLIPSE COLUMN Pod for 3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 132 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
VW324080 ELLIPSE COLUMN Pod for 3 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 132 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |

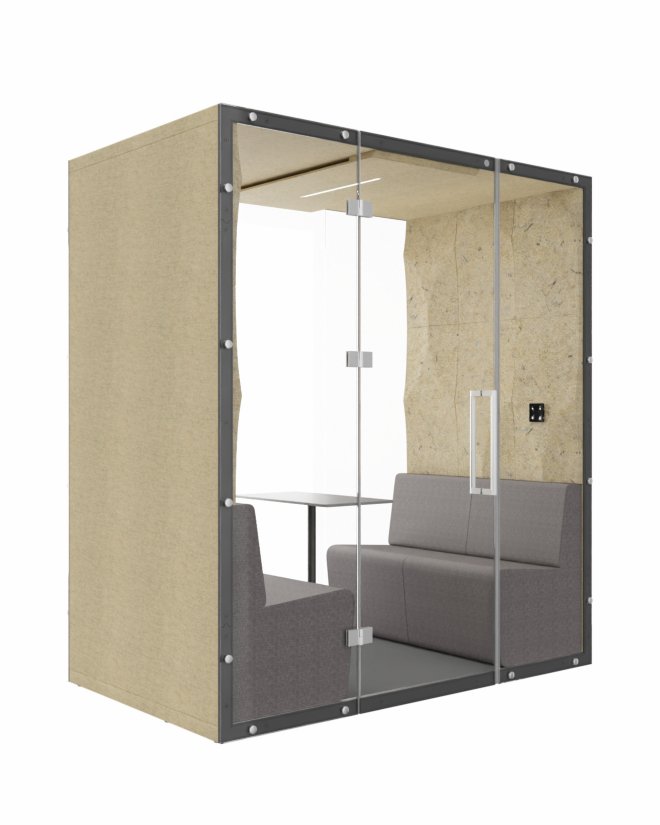

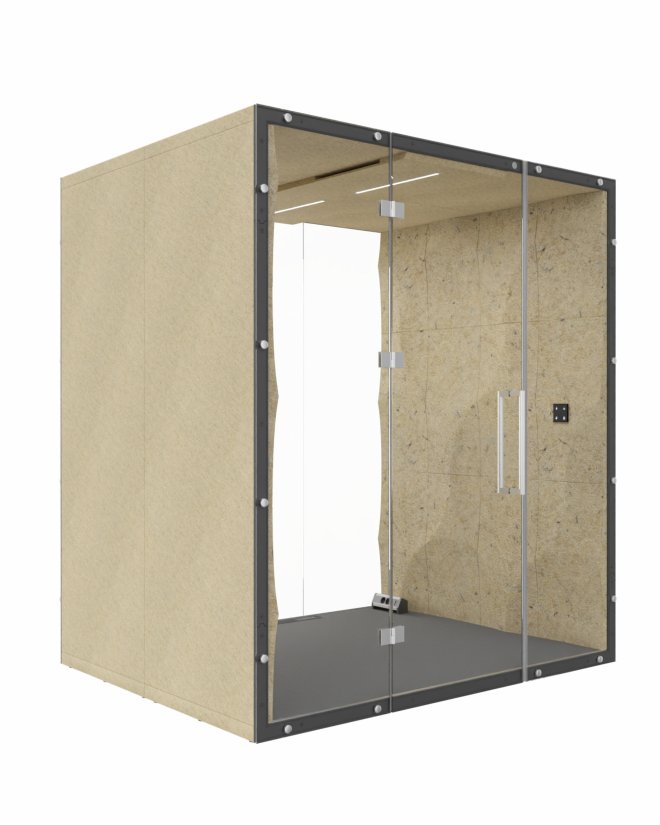

VW422070 ELLIPSE COLUMN Pod for 4 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 174 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
VW422080 ELLIPSE COLUMN Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 174 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
VW424070 ELLIPSE COLUMN Pod for 4 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 172 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
VW424080 ELLIPSE COLUMN Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 172 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
VW622070 ELLIPSE COLUMN Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
VW622080 ELLIPSE COLUMN Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
VW624070 ELLIPSE COLUMN Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
VW624080 ELLIPSE COLUMN Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 252 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
GLB VW222070 Pod for 2 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 94 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
GLB VW222080 Pod for 2 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 94 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
GLB VW224070 Pod for 2 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 92 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
GLB VW224080 Pod for 2 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 92 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
GLB VW322070 Pod for 3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 134 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
GLB VW322080 Pod for 3 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 134 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
GLB VW324070 Pod for 3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 132 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
GLB VW324080 Pod for 3 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 132 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |

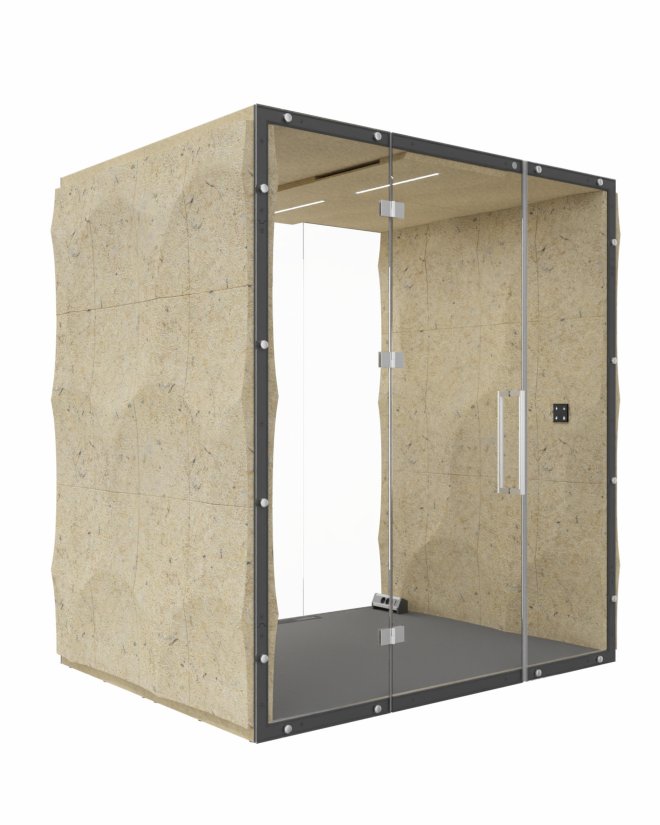

GLB VW422070 Pod for 4 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 174 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
GLB VW422080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 174 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
GLB VW424070 Pod for 4 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 172 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
GLB VW424080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 172 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
GLB VW622070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
GLB VW622080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
GLB VW624070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
GLB VW624080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 252 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
TS-2
A set of 2 seats and a table as furnishings of a pod for 2.
TS-3
A set of 4 seats and a table as furnishings of a pod for 3.
TS-4
A set of 4 seats and a table as furnishings of a pod for 4.
TS-6
A set of 6 seats and a table as furnishings of a pod for 6.
VW222070 ELLIPSE COLUMN Pod for 2 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 94 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
VW222080 ELLIPSE COLUMN Pod for 2 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 94 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
VW224070 ELLIPSE COLUMN Pod for 2 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 92 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
VW224080 ELLIPSE COLUMN Pod for 2 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 92 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
VW322070 ELLIPSE COLUMN Pod for 3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 134 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
VW322080 ELLIPSE COLUMN Pod for 3 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 134 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
VW324070 ELLIPSE COLUMN Pod for 3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 132 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
VW324080 ELLIPSE COLUMN Pod for 3 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 132 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
VW422070 ELLIPSE COLUMN Pod for 4 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 174 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
VW422080 ELLIPSE COLUMN Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 174 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
VW424070 ELLIPSE COLUMN Pod for 4 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 172 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
VW424080 ELLIPSE COLUMN Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 172 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
VW622070 ELLIPSE COLUMN Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
VW622080 ELLIPSE COLUMN Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
VW624070 ELLIPSE COLUMN Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
VW624080 ELLIPSE COLUMN Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 252 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
GLB VW222070 Pod for 2 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 94 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
GLB VW222080 Pod for 2 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 94 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
GLB VW224070 Pod for 2 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 92 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
GLB VW224080 Pod for 2 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 92 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 80 cm |
| Internal width: | 187 cm |
GLB VW322070 Pod for 3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 134 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
GLB VW322080 Pod for 3 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 134 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
GLB VW324070 Pod for 3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 132 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
GLB VW324080 Pod for 3 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 132 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 120 cm |
| Internal width: | 187 cm |
GLB VW422070 Pod for 4 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 174 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
GLB VW422080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 174 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
GLB VW424070 Pod for 4 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 172 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
GLB VW424080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 172 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 160 cm |
| Internal width: | 187 cm |
GLB VW622070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
GLB VW622080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
GLB VW624070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 254 cm |
| Total width: | 214 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
GLB VW624080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
| Total height: | 238 (H1) 223 (H2) cm |
| Total depth: | 252 cm |
| Total width: | 223 cm |
| Internal height: | 218 (H1) 203 (H2) cm |
| Internal depth: | 240 cm |
| Internal width: | 187 cm |
TS-2
A set of 2 seats and a table as furnishings of a pod for 2.
TS-3
A set of 4 seats and a table as furnishings of a pod for 3.
TS-4
A set of 4 seats and a table as furnishings of a pod for 4.
TS-6
A set of 6 seats and a table as furnishings of a pod for 6.
ACOUSTICS & WELLBEING
VANK_WELLBIOING 2024
Inclusive workspaces
Download all pictures
Download all pictures
PCON is a simple piece of software for designing functional settings or detailed arrangements — including planning the necessary budget. You’re most welcome to make use of the OFML data of our products, prepared specifically with this 3D planning programme in mind.
RPET
rPET GREY
rPET GRAPHITE
BIOCOMPOSIT
BIO LIGHT
BIO DARK
SONUS / II PRICE GROUP
A heavy-duty acoustic mélange fabric with a felt finish. Composition: 10% viscose, 18% nylon, 72% polyester, weight: 200 g/m2. Environmental label: EU Ecolabel, Indoor Advantage™ “Gold”, Standard 100 by OEKO-TEX®.
BLAZER LITE / II PRICE GROUP
A heavy-duty acoustic and biodegradable fabric containing natural fibres. Felt finish and mélange colours. Composition: 100% renewable responsibly farmed wool, weight: 355 g/m2. Environmental label: Indoor Advantage™ “Gold”.
lth39
lth41
lth47
lth50
lth55
lth56
lth63
lth67
WELL / II PRICE GROUP
Composition: 92% wool, 8% polyamide, weight: 457 g/m2, abrasion resistance: ≥ 200,000 Martindale cycles.
SYNERGY / III PRICE GROUP
A heavy-duty fabric with a fine felt finish, containing natural fibres, available in 75 colours. Composition: 95 % renewable responsibly farmed wool, 5% nylong, weight: 400 g/m2, abrasion resistance: ≥ 100,000 Martindale cycles. Environmental label: EU Ecolabel, Indoor Advantage™ “Gold”.
lds22
lds23
lds24
lds25
lds26
lds27
lds28
lds29
lds31
lds32
lds33
lds34
lds35
lds36
lds37
lds39
lds40
lds41
lds42
lds43
lds44
lds45
lds46
lds47
lds48
lds49
lds50
lds51
lds52
lds53
lds54
lds55
lds56
lds38
lds57
lds58
lds60
lds59
lds61
lds62
lds63
lds64
lds65
lds66
lds67
lds68
lds69
lds70
lds71
lds72
lds73
lds74
lds75
lds76
lds77
lds78
lds79
lds80
lds81
lds82
lds83
lds84
lds85
lds86
lds87
lds88
FLOORING
F-GR
F-BE
DAYBREAK2 / CURTAINS

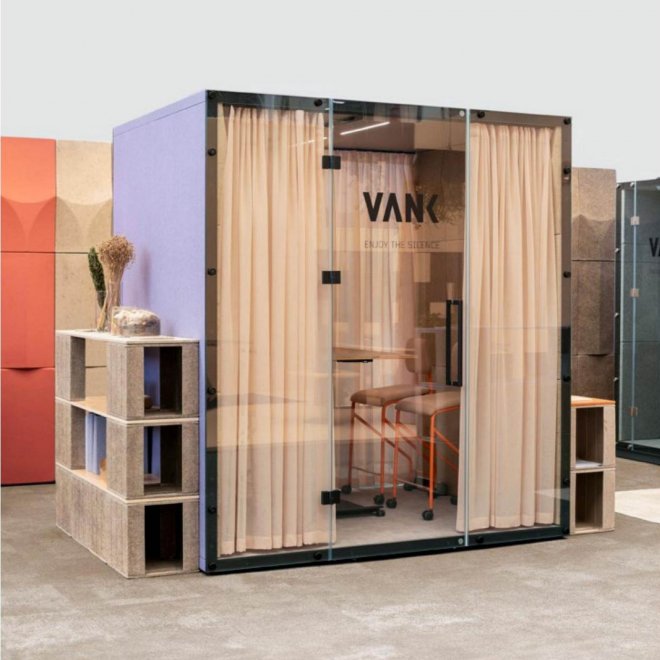

The Curtains Daybreak2 from the renowned KVADRAT brand, designed by Patricia Urquiola. An irregular texture and a look reminiscent of natural linen mark these curtains. They also positively impact the privacy, acoustics, lighting, and overall aesthetics of our pods, and can be offered with neuroatypical people in mind.
TABLE TOPS
B-GR
B-WH
BASE
S-BKS
S-WHS

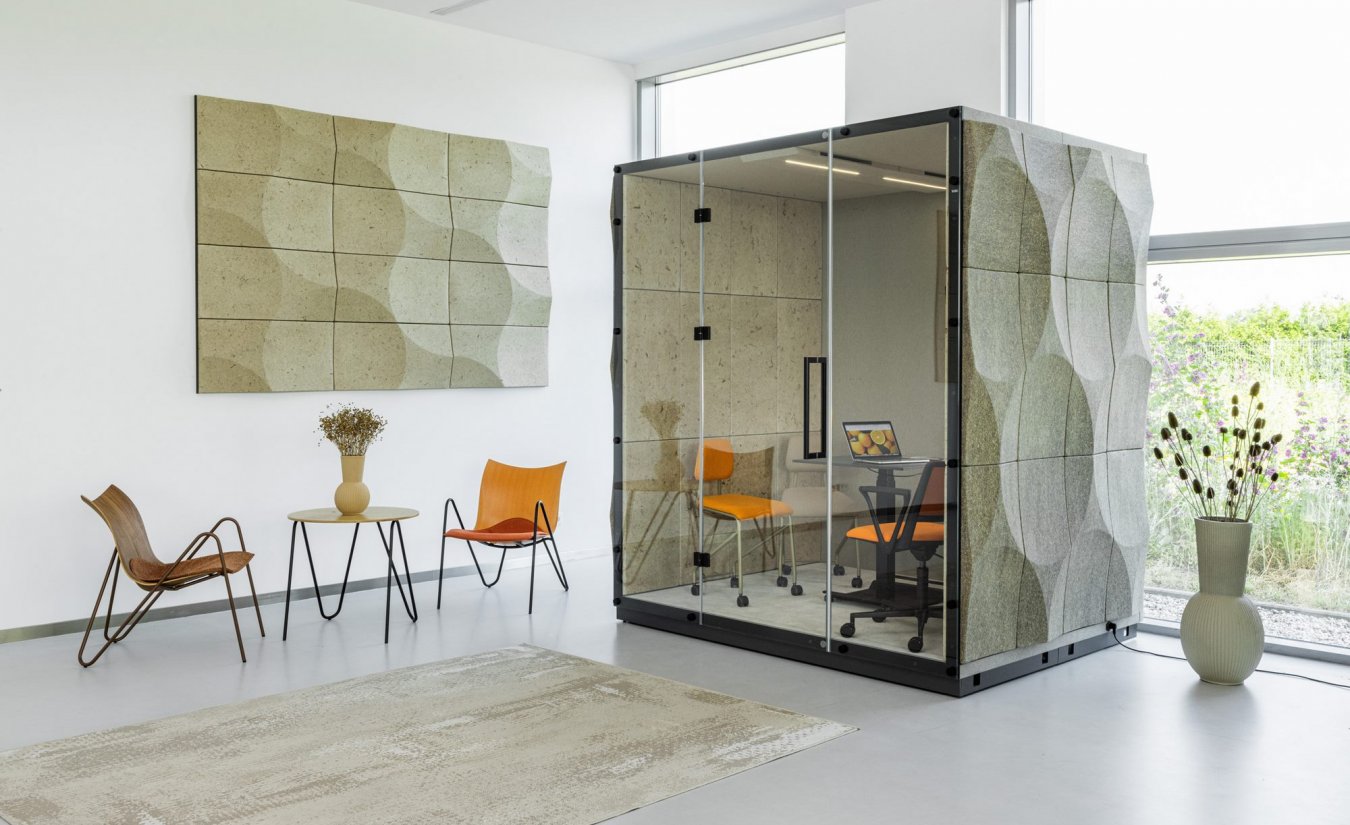

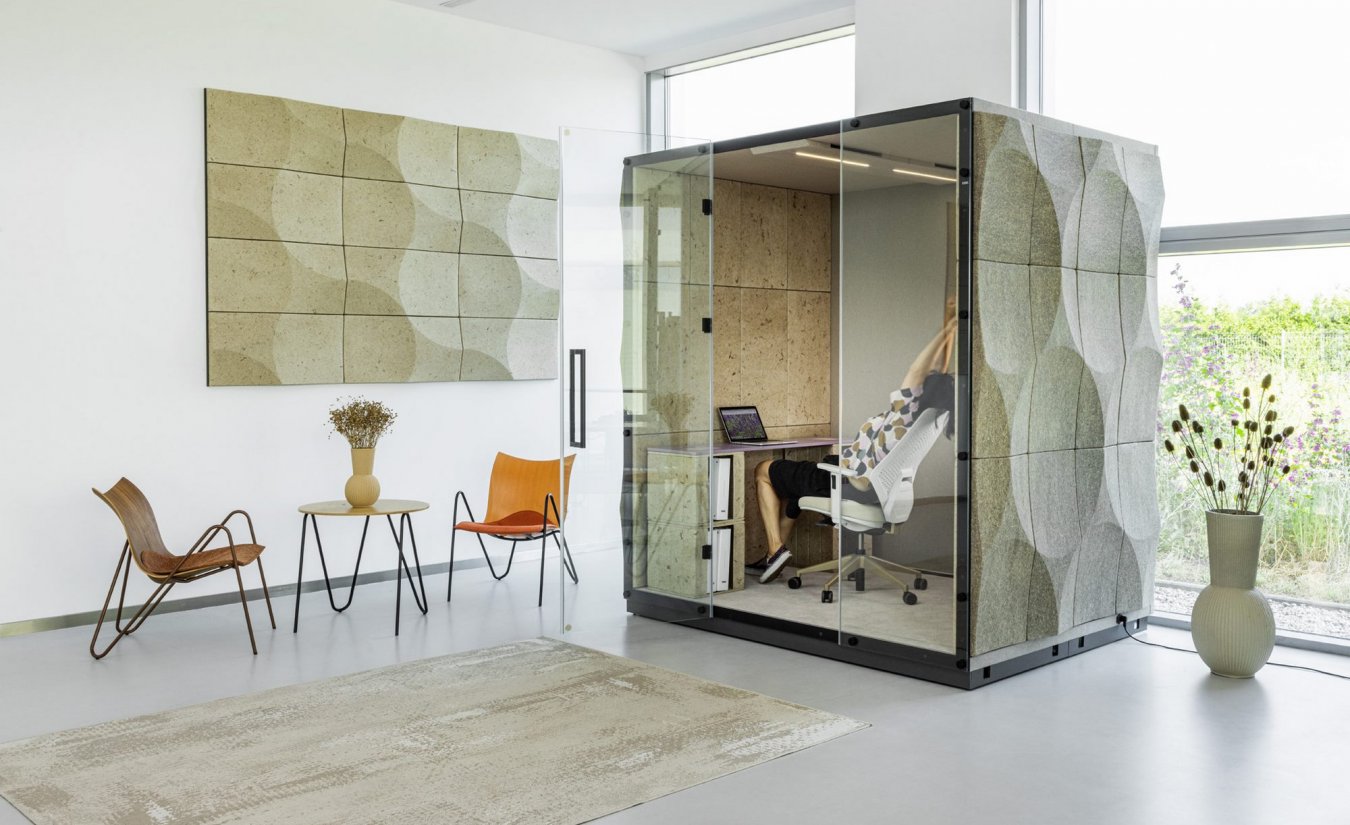

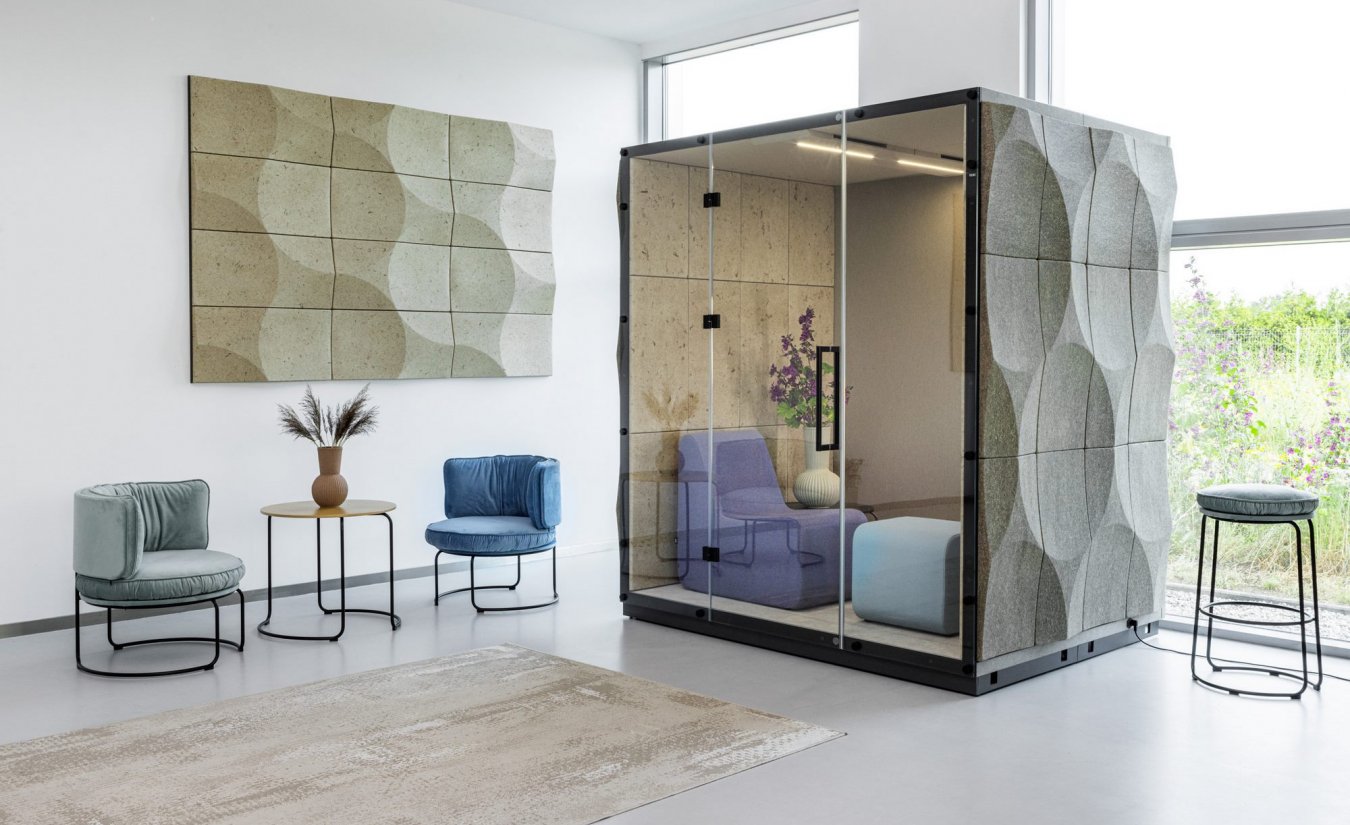

The ELLIPSE collection of acoustic pods, walls, wall and desk panels has been created in response to the need for a space for conversations, for meetings that require a break from the influx of external stimuli and focus on what really matters. As a means to maintain the balance between personal space and teamwork. ELLIPSE panels with their three-dimensional structure act as diffusers to break up sound waves, bringing well-being to the office. They can be made of a biocomposite or non-woven rPET — grey or upholstered. Such acoustic solutions will work great not only in office environments, but also in hotels, public office buildings, at airports, and in all sorts of event, industrial, and logistics facilities.
The design of the Ørsted office is a harmonious blend of Scandinavian simplicity and a gently activating functional space.
...
It’s always a pleasure to see new wall compositions featuring the ELLIPSE panel! This time, it was used in the latest project - a 280 m² office in Brussels for a leading energy company.
...
Blox is a company based in Rothenburg, Switzerland that offers consulting services to architects, interior designers, and investors for office furnishings. They also distribute innovative products within the interior design industry.
...
Within the coworking space, freelancers and companies will find well-equipped common areas, kitchen, chill-out rooms, and conference rooms.
...
Together with Arup and Workplace, we are creating a new direction in design. A new Arup office space has been created in Warsaw. Centred around the regeneration of people and the planet. The project involved dozens of experts of various specialisations...
Capmo, the construction industry disruptor founded in 2018, has moved into a new office and equipped part of it with their sustainable VANK_ELLIPSE_BIO_BOX single pods.
...
Atos is a French multinational information technology (IT) service and consulting company headquartered in Bezons, France and offices worldwide.
...
An e-commerce company located at Panattoni Park near Poznań recently completed a project to fit-out their office space, conference and training rooms, meeting rooms, canteen, reception and collaboration area, gym, and a room for nursing mothers.
...
After conducting noise measurements at the Oss City Hall building, it was found that the meeting room required improvement in terms of its reverberation time.
...
The interior design for a Scandinavian company operating in the maritime market in Szczecin included the development of five floors in an office building with an area of 2,800 m2.
...
