  1. Vank
  2. Products
  3. Acoustic pods
  4. DIAMOND

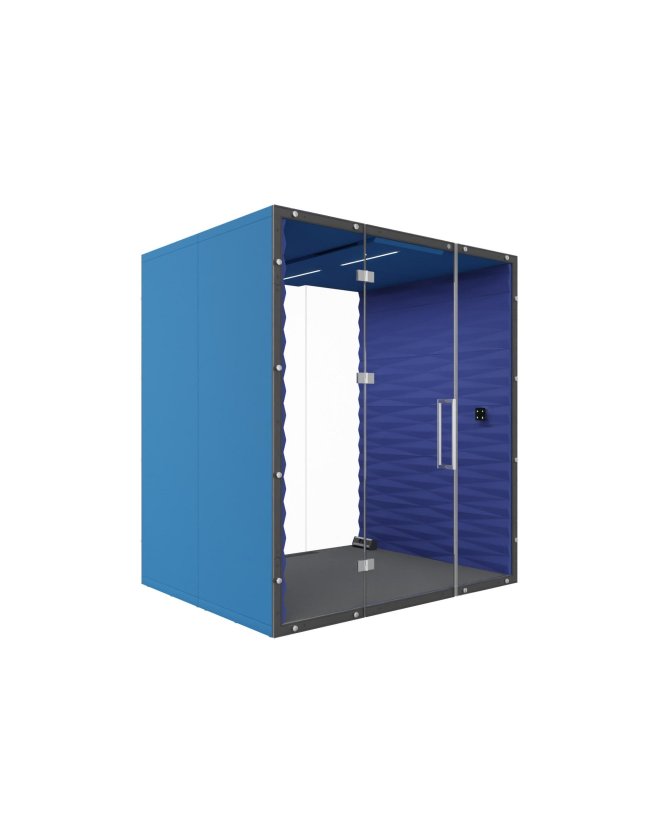

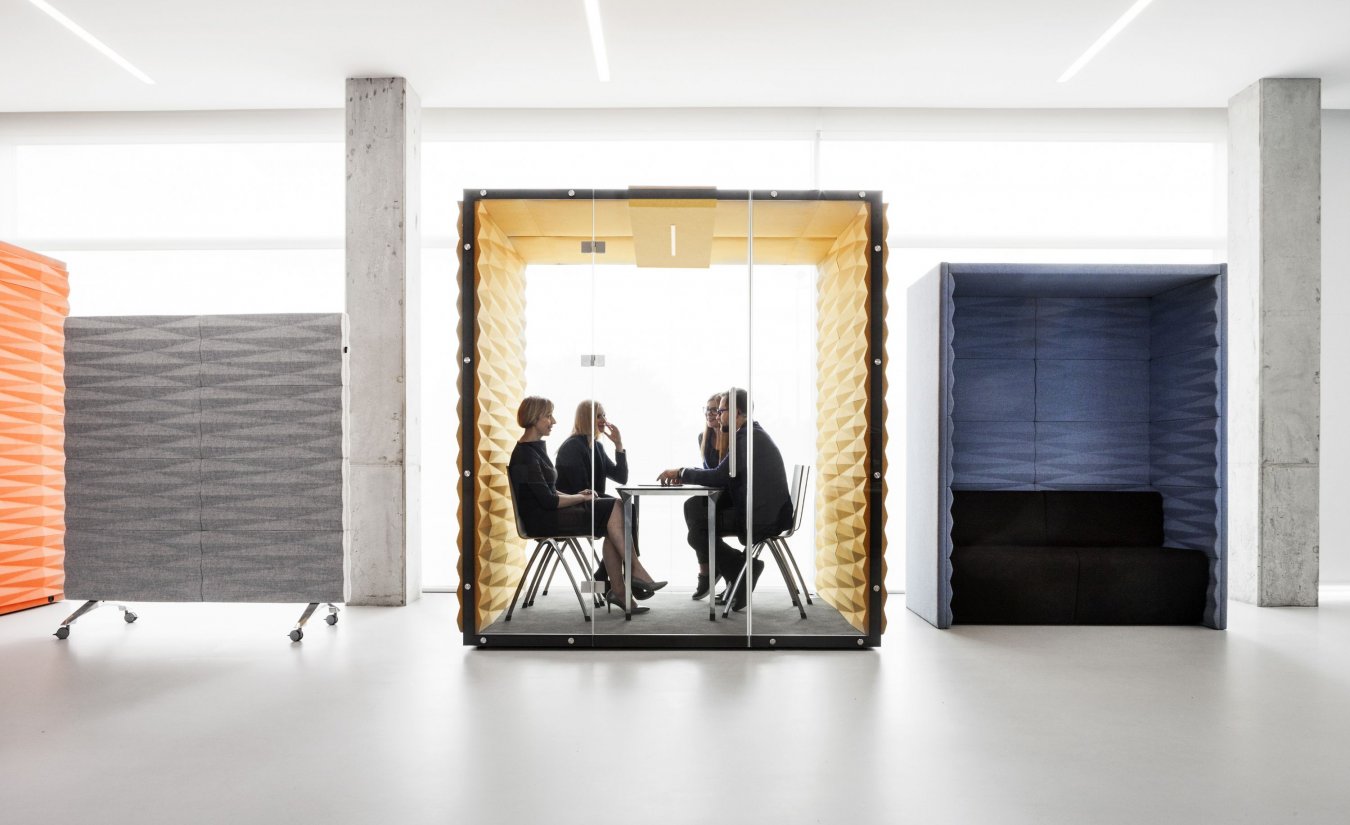

DIAMOND acoustic pods
Arranging the available workspace in the right way by providing employees with space for individual work, video conferencing, meetings, and brainstorming makes the workplace much more employee-friendly. Such arrangements are possible thanks to acoustic pods — VANK’s mobile rooms designed for 2/3, 4, and 6. Thanks to the special design and the use of sound-absorbing materials, the pods effectively block outside noise and suppress the sound generated inside. DIAMOND panels with their three-dimensional structure act as diffusers to break up sound waves, bringing well-being to the office. They can be made of a biocomposite or non-woven rPET — grey or upholstered. The pods feature a safety glass door and come with connection panels, a ventilation system, energy-efficient LED ceiling lighting, a sound system, a TV screen mount, and a control panel which measures: lighting intensity, air purity, and noise levels. The pod is also available in a mobile version — on wheels. Acoustic pods will work well not only in office environments but also at event venues, in hotels, in public office buildings, and at airports.
Awards
MIXOLOGY 2023
MIXOLOGY 2023

MIXOLOGY 2023

The Mixology Awards by Mix Interiors Magazine celebrate the very best projects, products and people in commercial interior design, with a judging panel comprising key players in the industry. It’s a great honour to be recognised for our efforts on this new version of VANK_BOX.

GERMAN SUSTAINABILITY AWARD DESIGN 2022
GERMAN SUSTAINABILITY AWARD DESIGN 2022

GERMAN SUSTAINABILITY AWARD DESIGN 2022

VANK’s natural composite bio-panel and eco-transformation have been recognised by the jury of the German Sustainability Award Design competition, and the panel was named a finalist in the 2022 edition of the competition.

GREEN PRODUCT AWARD 2022
GREEN PRODUCT AWARD 2022

GREEN PRODUCT AWARD 2022

The VANK BIO panel, available in 5 different patterns, won the Green Product Award 2022 and received a special mention from a 26-member jury — Editor’s Choice — in the Interior & Lifestyle category. The panel is an essential element of VANK acoustic pods, mobile walls, and wall installations.

ICONIC AWARDS 2022 Winner - BIO
ICONIC AWARDS 2022 Winner - BIO

ICONIC AWARDS 2022 Winner - BIO

The design of VANK’s BIO acoustic pod received “The Winner” title in the Innovative Interiors category of the ICONIC AWARDS 2022 competition organised by the German Design Council.

__ Distinguishing features

NATURAL BIO-MATERIAL
NATURAL BIO-MATERIAL

NATURAL BIO-MATERIAL

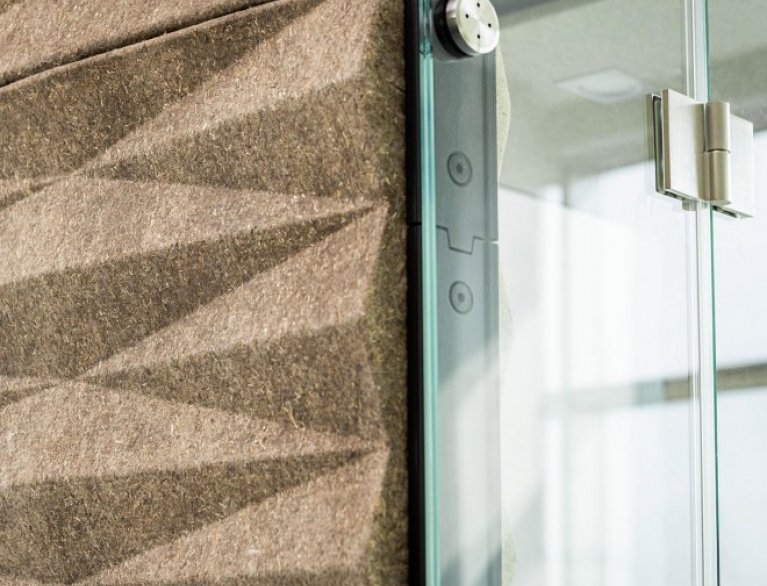

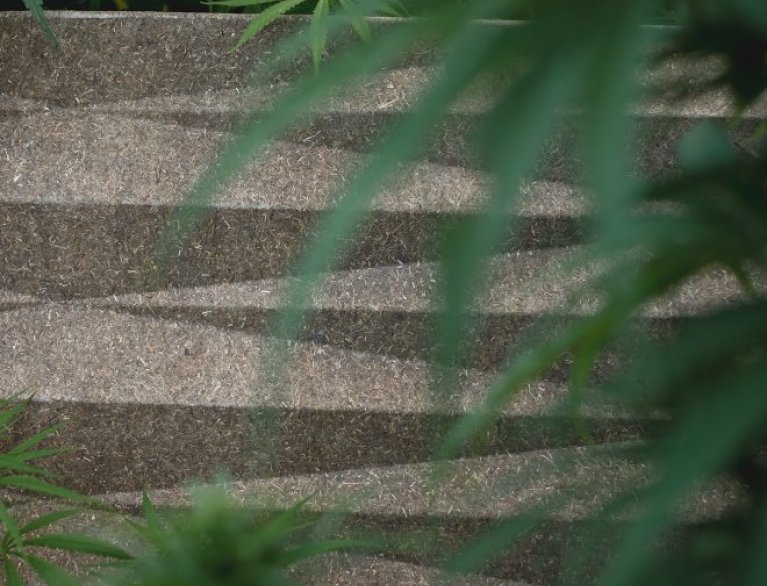

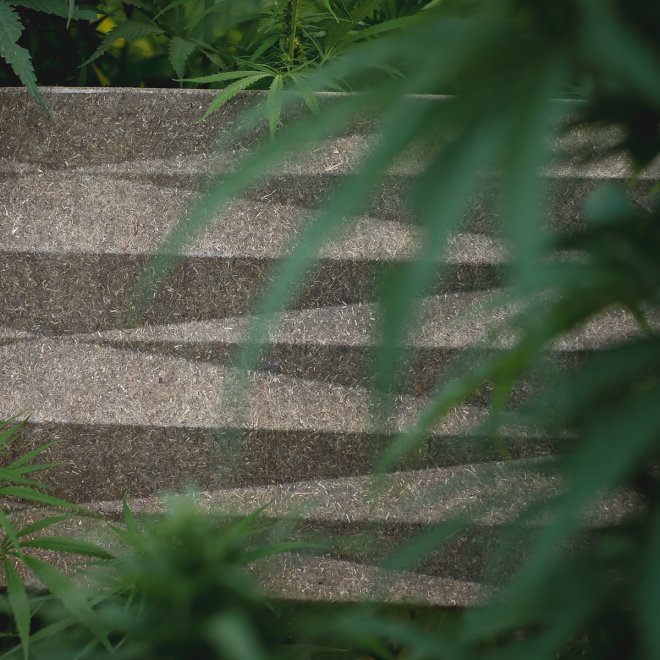

VANK BIO acoustic panels are made from a biocomposite based on fibrous plants, i.e. flax and hemp.
rPET
rPET

rPET

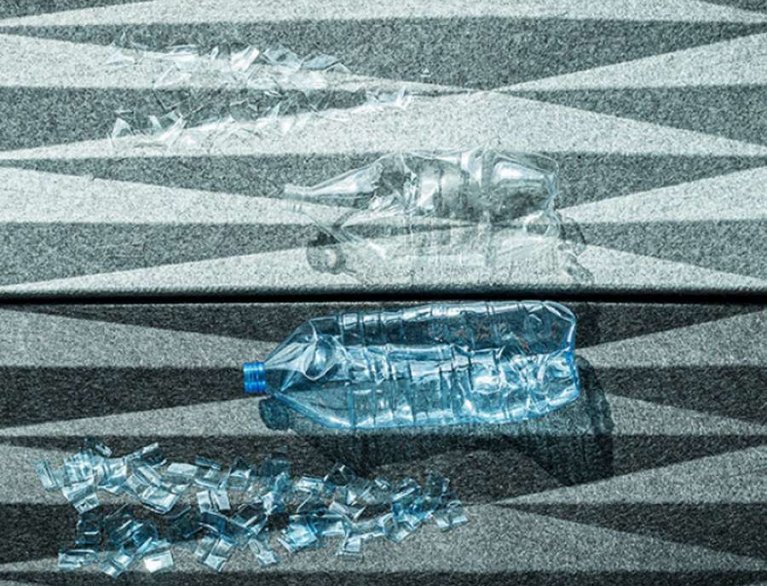

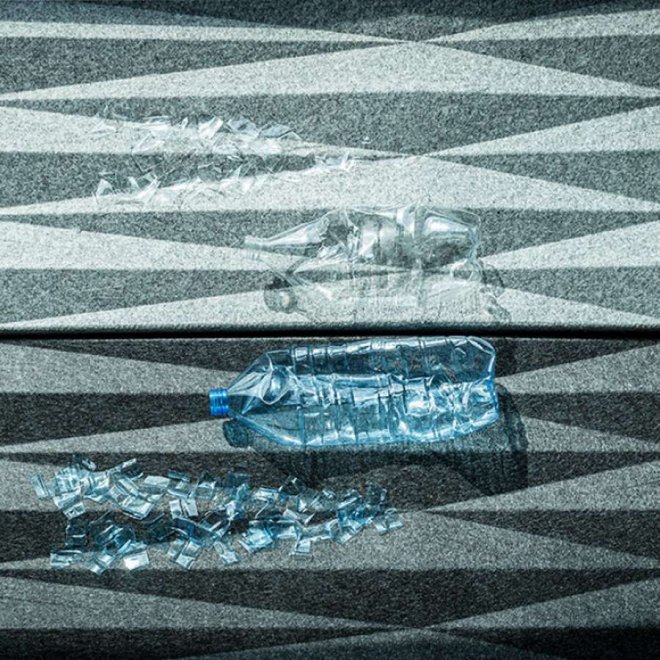

VANK rPET acoustic panels are made from non-woven recycled plastic. They can come in a wide range of colours if upholstered in a fabric of choice.

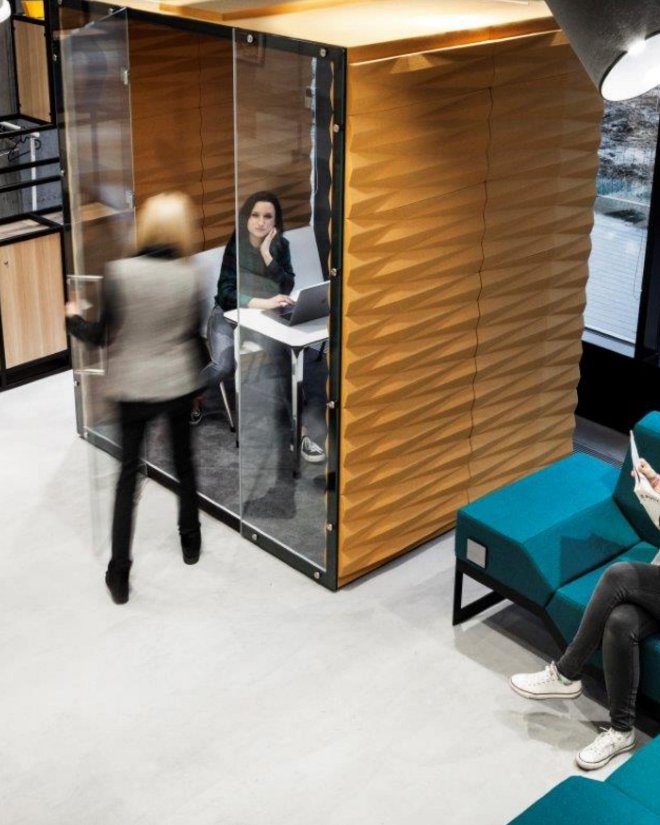

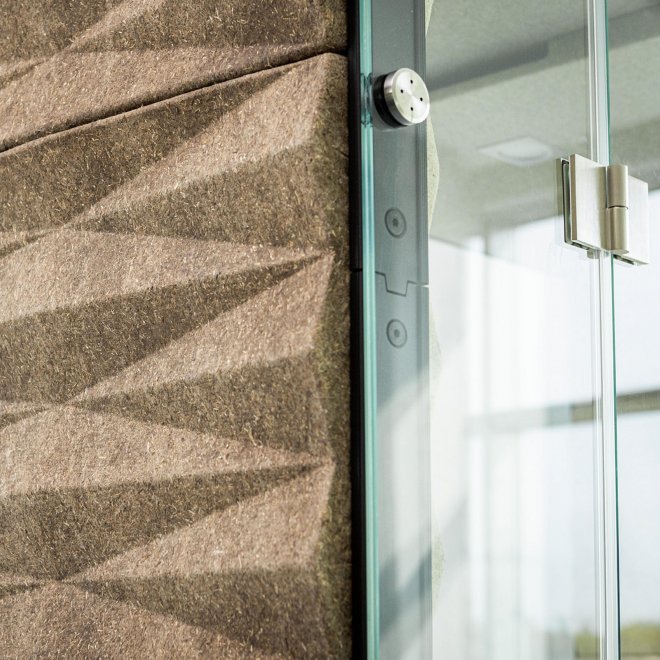

The distinct diamond-shaped structure of DIAMOND collection has been a hallmark of the VANK brand since its inception. It is the cornerstone of our line of acoustic solutions for office environments.
VANK_DIAMOND
DIVERSITY OF FORM
DIVERSITY OF FORM

DIVERSITY OF FORM

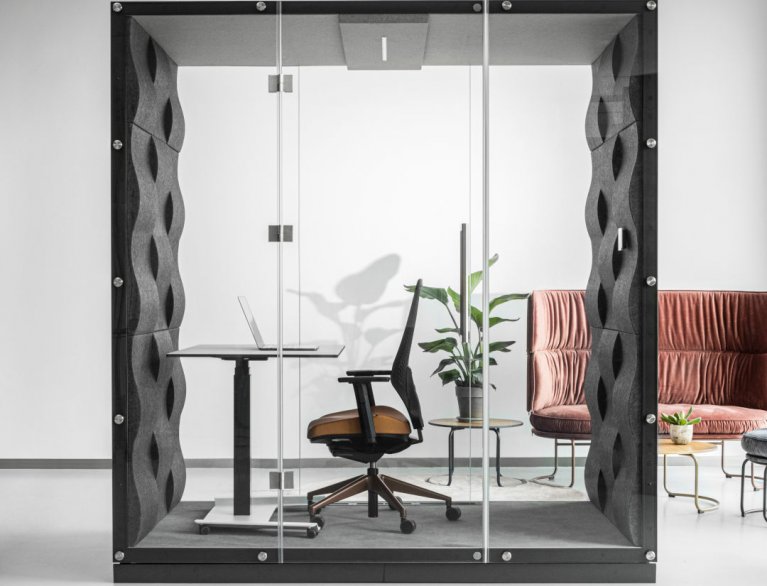

The pods come in many combinations: with one or two glass walls, with the body featuring the diamond pattern on two sides side or one side only (the other is upholstered in plain fabric).
CREATIVE
CREATIVE

CREATIVE

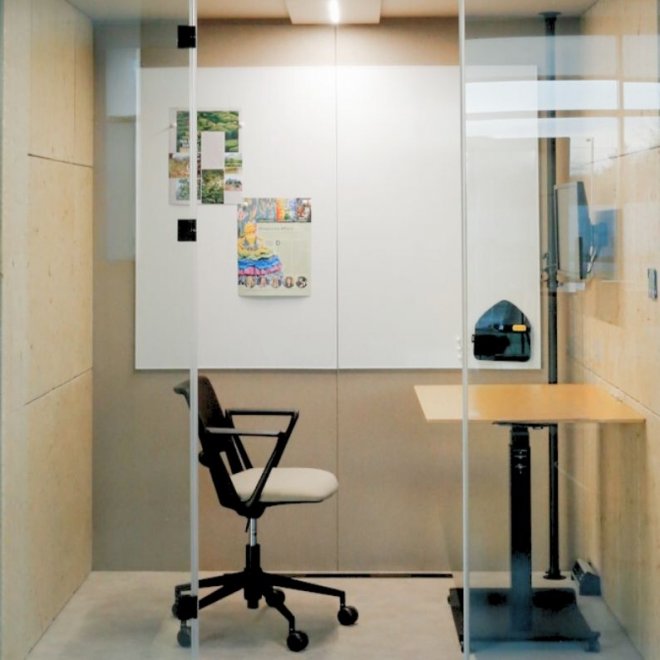

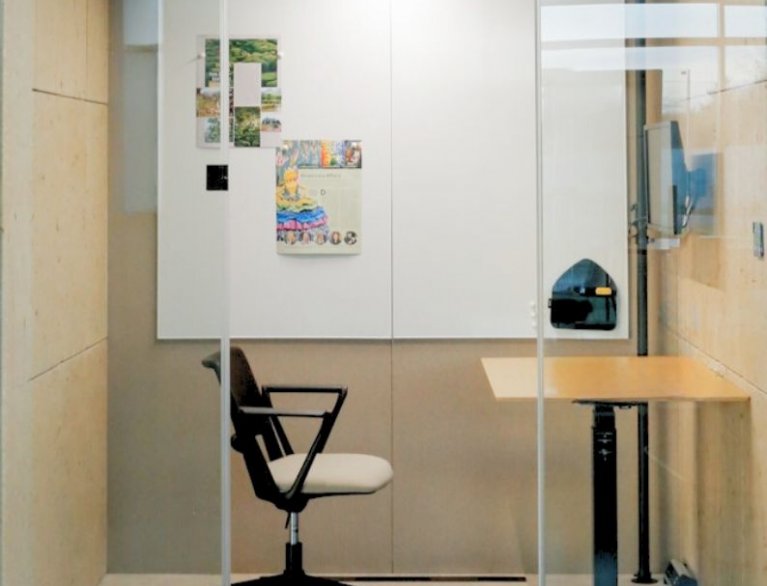

The magnetic whiteboard can be used for writing and creating moodboards. A perfect tool for a brainstorming session inside the pod or nearby, turning the pod and its surroundings into an informal meeting space.
GRAPHIC LED
GRAPHIC LED

GRAPHIC LED

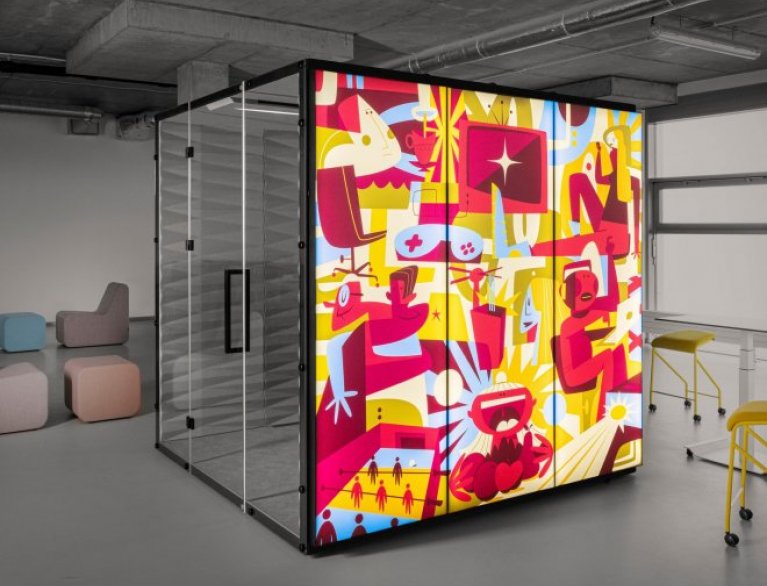

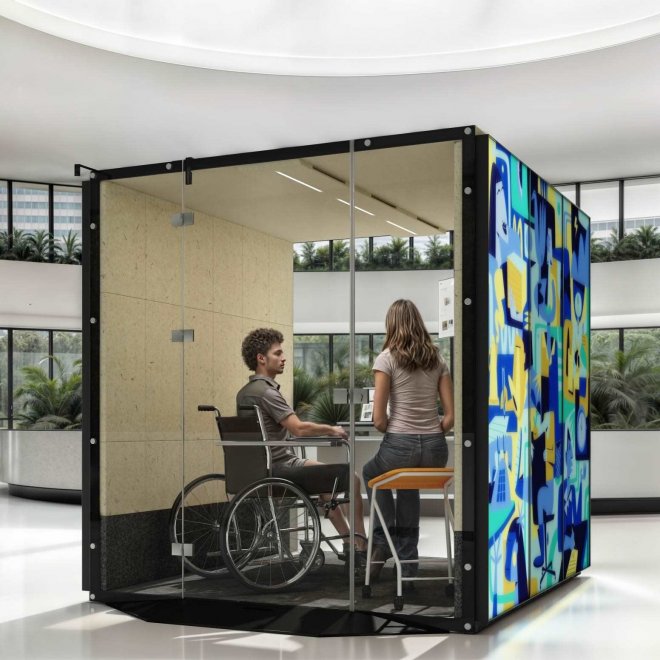

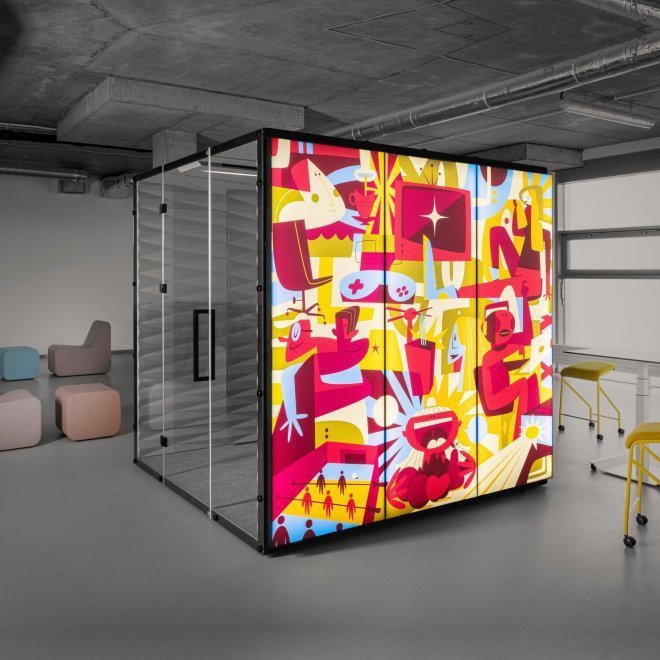

The pod is available in the GRAPHIC_LIGHT version with “Friday” mural artwork in 1 of 3 colours available or with a photo of the client’s choice. LED lighting on exterior walls.
JUNGLE
JUNGLE

JUNGLE

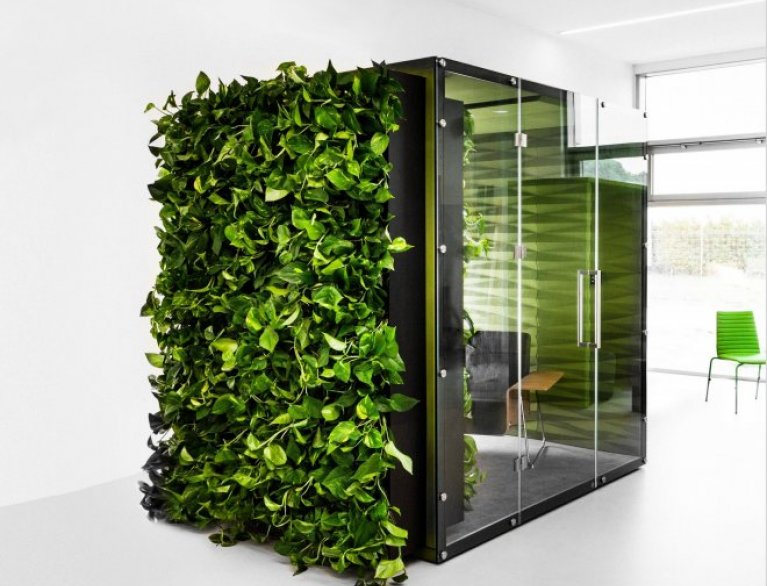

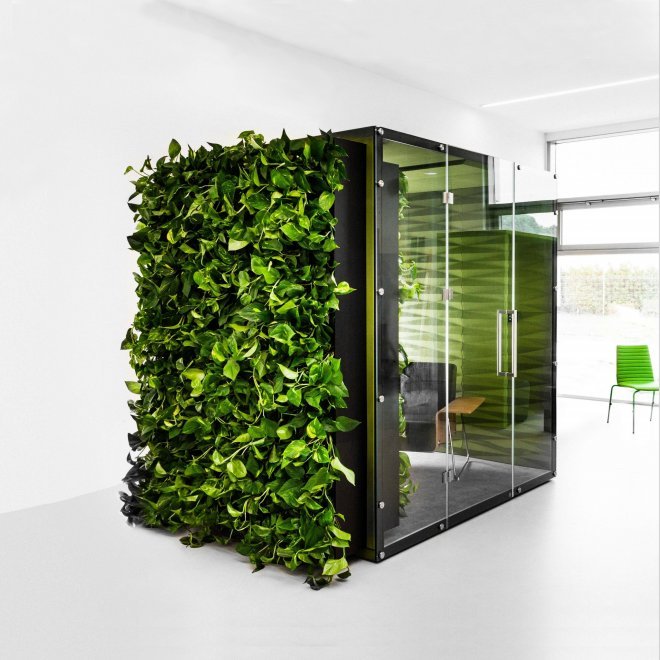

The outer left wall of the pod is finished with a system of modules for growing air purifying potted plants. A green wall in the office reduces employee stress and brings emotional balance and well-being to the workplace.
GREEN MOBILITY
GREEN MOBILITY

GREEN MOBILITY

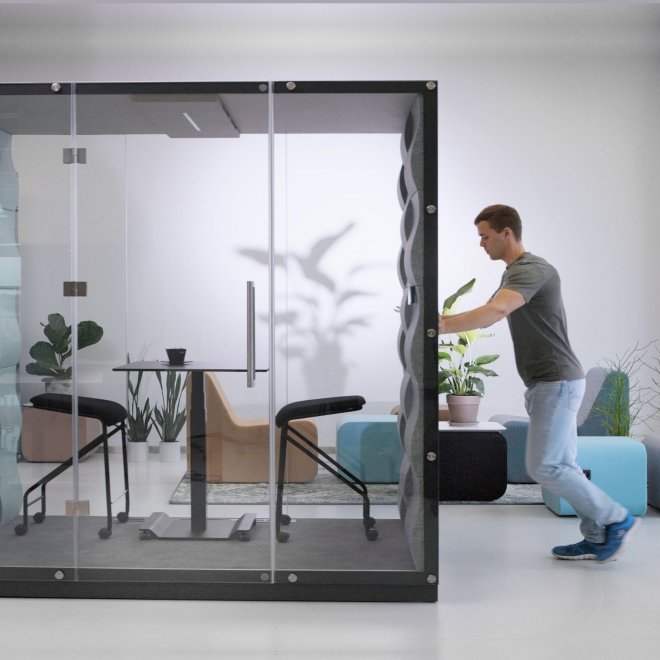

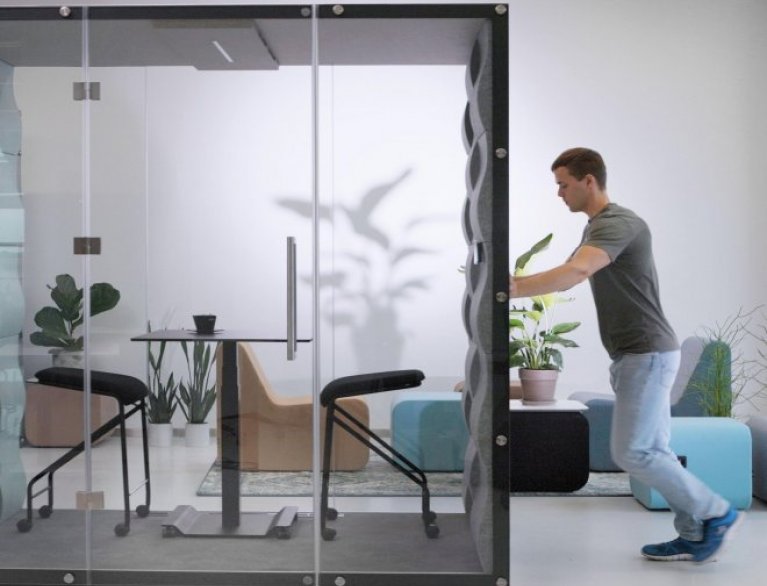

All VANK acoustic pods can be moved freely at any time — and disassembled and assembled back if necessary. This is possible thanks to the castors fixed to the base and the heavy-duty design — suitable for repeated assembly.
FREEDOM OF FURNISHING
FREEDOM OF FURNISHING

FREEDOM OF FURNISHING

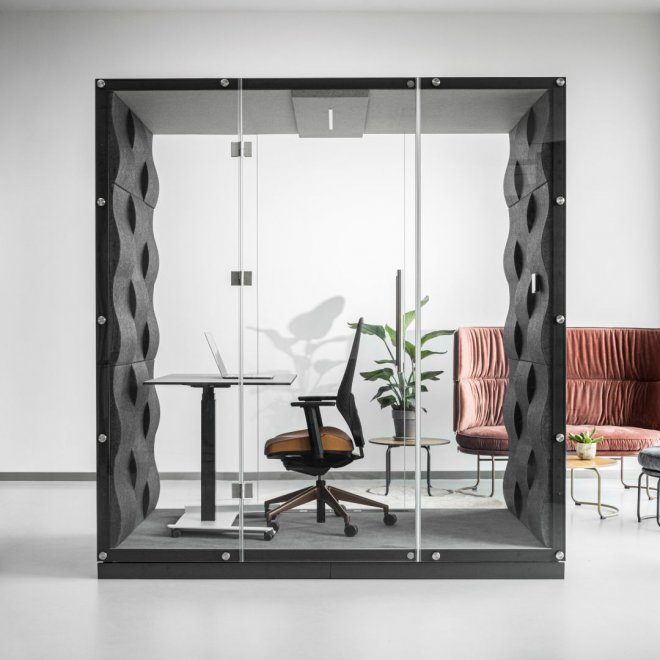

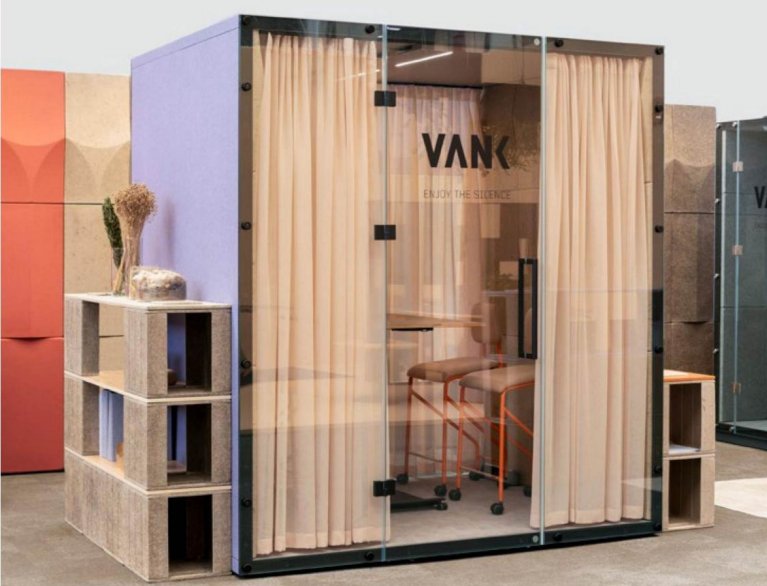

The freedom to furnish the pod with furniture makes it easy to adapt it to the current needs of the organisation. Available options include standard seats or collections like CO, CELOO, RING, V6, and PEEL.
TV MOUNT
TV MOUNT

TV MOUNT

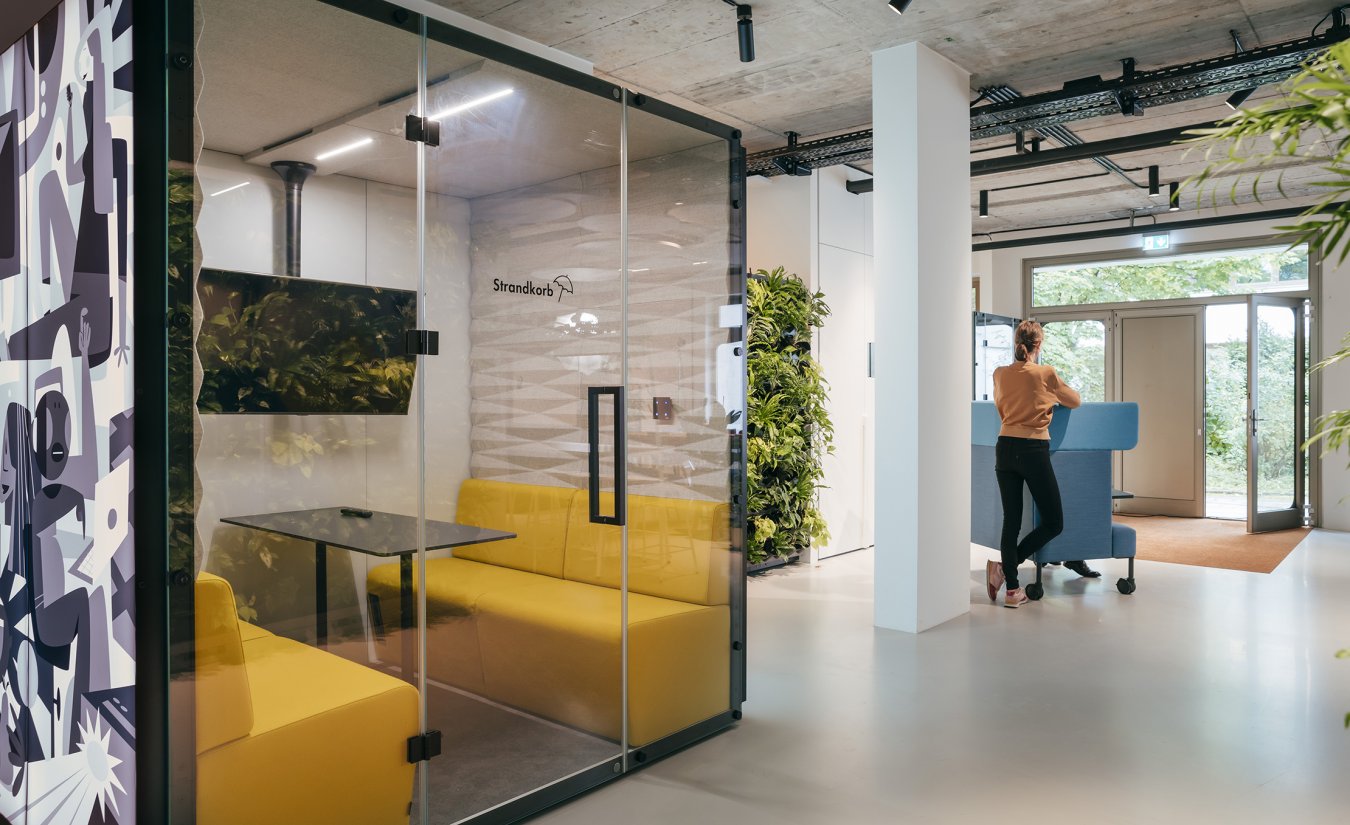

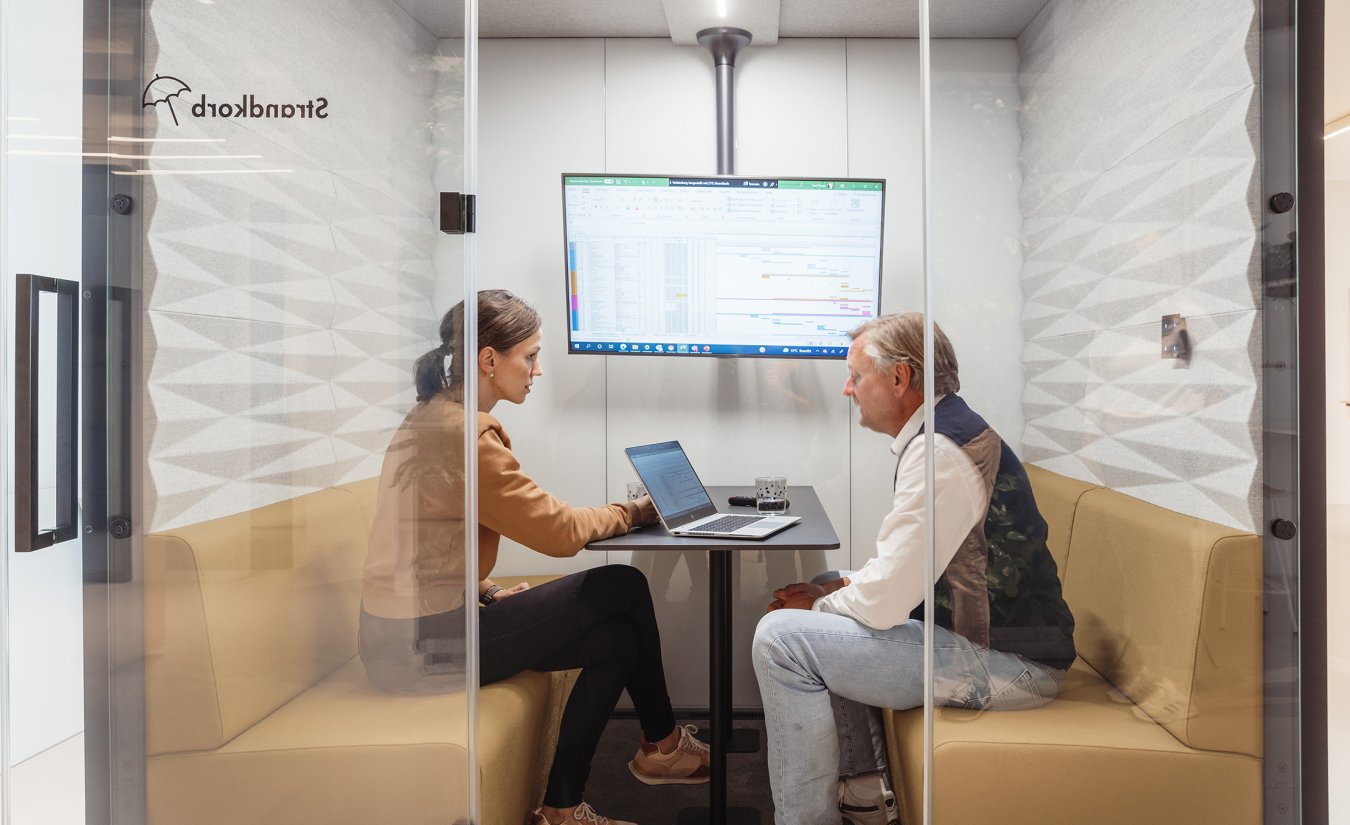

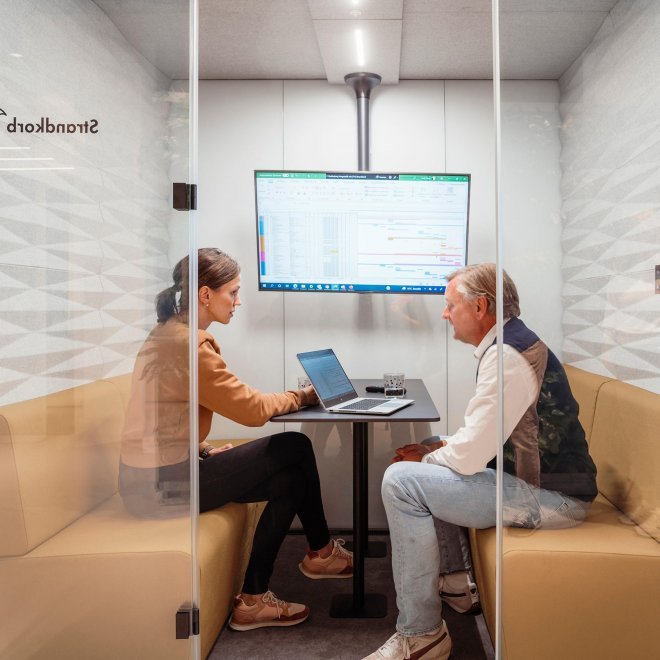

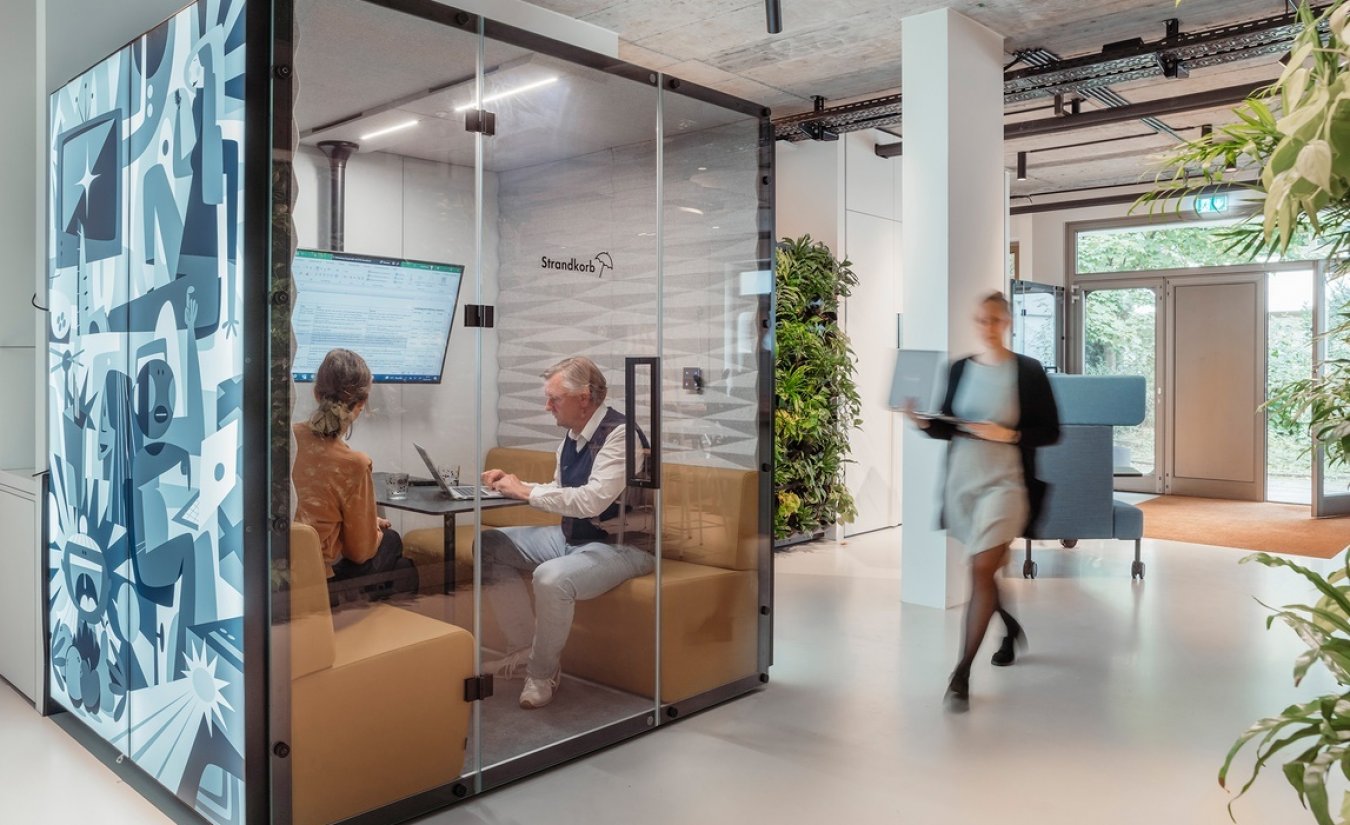

To provide proper space for video conferencing, our pods feature TV mounts. Depending on the pod type, two kinds of mounts are available: corner or central.
SAFETY GLASS AND FIRE-RETARDANT MATERIALS
SAFETY GLASS AND FIRE-RETARDANT MATERIALS

SAFETY GLASS AND FIRE-RETARDANT MATERIALS

All glass elements are made of double-glazed, laminated, and tempered glass, which makes them safe to install and use. The acoustic panels and fabrics have been tested for flame retardancy according to EN 1021-1, EN 1021-2 (cigarette and match).
CUSTOMISABILITY
CUSTOMISABILITY

CUSTOMISABILITY

Available 2 pod heights: standard H1=238 or H2=223 cm. Power supply: bottom or coming out of the upper part of the roof.
QUIET AND EFFICIENT VENTILATION
QUIET AND EFFICIENT VENTILATION

QUIET AND EFFICIENT VENTILATION

Mechanical supply and exhaust ventilation, providing air exchange during use. Adjustable ventilation with the possibility of ventilating the space before and after meetings in pods for 2 and more.
ADJUSTABLE LED LIGHTING
ADJUSTABLE LED LIGHTING

ADJUSTABLE LED LIGHTING

Neutral light colour — 4,000 K. Illuminance compliant with the standard for office work. Adjustable lighting intensity in pods for 2 and more.
WIRELESS INTERNAL SOUND SYSTEM
WIRELESS INTERNAL SOUND SYSTEM

WIRELESS INTERNAL SOUND SYSTEM

An optional mono/stereo sound system to play audio/ music from mobile devices via Bluetooth.
POWER SUPPLY, POWER SOCKETS, AND USB CHARGERS
POWER SUPPLY, POWER SOCKETS, AND USB CHARGERS

POWER SUPPLY, POWER SOCKETS, AND USB CHARGERS

IN pods for 2 and more, a 2x230V+2xUSB connection panel is fitted near the floor or in the fixed seats.
1
 /
NATURAL BIO-MATERIAL
NATURAL BIO-MATERIAL

NATURAL BIO-MATERIAL

VANK BIO acoustic panels are made from a biocomposite based on fibrous plants, i.e. flax and hemp.
rPET
rPET

rPET

VANK rPET acoustic panels are made from non-woven recycled plastic. They can come in a wide range of colours if upholstered in a fabric of choice.
DIVERSITY OF FORM
DIVERSITY OF FORM

DIVERSITY OF FORM

The pods come in many combinations: with one or two glass walls, with the body featuring the diamond pattern on two sides side or one side only (the other is upholstered in plain fabric).
CREATIVE
CREATIVE

CREATIVE

The magnetic whiteboard can be used for writing and creating moodboards. A perfect tool for a brainstorming session inside the pod or nearby, turning the pod and its surroundings into an informal meeting space.
GRAPHIC LED
GRAPHIC LED

GRAPHIC LED

The pod is available in the GRAPHIC_LIGHT version with “Friday” mural artwork in 1 of 3 colours available or with a photo of the client’s choice. LED lighting on exterior walls.
JUNGLE
JUNGLE

JUNGLE

The outer left wall of the pod is finished with a system of modules for growing air purifying potted plants. A green wall in the office reduces employee stress and brings emotional balance and well-being to the workplace.
GREEN MOBILITY
GREEN MOBILITY

GREEN MOBILITY

All VANK acoustic pods can be moved freely at any time — and disassembled and assembled back if necessary. This is possible thanks to the castors fixed to the base and the heavy-duty design — suitable for repeated assembly.
FREEDOM OF FURNISHING
FREEDOM OF FURNISHING

FREEDOM OF FURNISHING

The freedom to furnish the pod with furniture makes it easy to adapt it to the current needs of the organisation. Available options include standard seats or collections like CO, CELOO, RING, V6, and PEEL.
TV MOUNT
TV MOUNT

TV MOUNT

To provide proper space for video conferencing, our pods feature TV mounts. Depending on the pod type, two kinds of mounts are available: corner or central.
SAFETY GLASS AND FIRE-RETARDANT MATERIALS
SAFETY GLASS AND FIRE-RETARDANT MATERIALS

SAFETY GLASS AND FIRE-RETARDANT MATERIALS

All glass elements are made of double-glazed, laminated, and tempered glass, which makes them safe to install and use. The acoustic panels and fabrics have been tested for flame retardancy according to EN 1021-1, EN 1021-2 (cigarette and match).
CUSTOMISABILITY
CUSTOMISABILITY

CUSTOMISABILITY

Available 2 pod heights: standard H1=238 or H2=223 cm. Power supply: bottom or coming out of the upper part of the roof.
QUIET AND EFFICIENT VENTILATION
QUIET AND EFFICIENT VENTILATION

QUIET AND EFFICIENT VENTILATION

Mechanical supply and exhaust ventilation, providing air exchange during use. Adjustable ventilation with the possibility of ventilating the space before and after meetings in pods for 2 and more.
ADJUSTABLE LED LIGHTING
ADJUSTABLE LED LIGHTING

ADJUSTABLE LED LIGHTING

Neutral light colour — 4,000 K. Illuminance compliant with the standard for office work. Adjustable lighting intensity in pods for 2 and more.
WIRELESS INTERNAL SOUND SYSTEM
WIRELESS INTERNAL SOUND SYSTEM

WIRELESS INTERNAL SOUND SYSTEM

An optional mono/stereo sound system to play audio/ music from mobile devices via Bluetooth.
POWER SUPPLY, POWER SOCKETS, AND USB CHARGERS
POWER SUPPLY, POWER SOCKETS, AND USB CHARGERS

POWER SUPPLY, POWER SOCKETS, AND USB CHARGERS

IN pods for 2 and more, a 2x230V+2xUSB connection panel is fitted near the floor or in the fixed seats.

__ Acoustics

ABSORPTION

SOUND INSULATION

SPEECH LEVEL REDUCTION

ABSORPTION

1 / 3

The VANK panels have excellent sound absorption properties. According to ISO 354:2005, their sound absorption coefficient is alpha = 0.90, which places them in the top-rated Class A category of sound-absorbing materials.

In addition, VANK panels, thanks to their three-dimensional structure, also act as diffusers to break up sound. The use of acoustic diffusers helps avoid the echo effect.

1 / 3
More about acustics More about acustics

ABSORPTION

SOUND INSULATION

SPEECH LEVEL REDUCTION

SOUND INSULATION

2 / 3

The box has a unique wall construction that includes multiple layers and provides excellent sound insulation. This helps to reduce reverberation both inside the box and in the surrounding area.

Tests carriedout in accordance with ISO 10140-2:2011 showed high sound insulation of the VANK_BOX at Rw= 45 dB.
2 / 3
More about acustics More about acustics

ABSORPTION

SOUND INSULATION

SPEECH LEVEL REDUCTION

SPEECH LEVEL REDUCTION

3 / 3

The robustness of the materials, the excellence of the connections and the precision of the assembly work guarantee a significant reduction in the level of speech and the suppression of voices from inside the booth, so that the confidentiality of conversations is preserved.

Tests carried out in accordance with ISO 23351-1 showed that speech level reduction (DS,A) is 30,7 dB, qualifying VANK acoustic pods in Class A for products of this type.
3 / 3
More about acustics More about acustics
Contact us
Write what information you need
Write what information you need
Contact us
Check where to buy our furniture
Buy

__ Downloads

Acoustic pods support focused work. Available in versions for 1 person as well as for 2-3, 4, and 6 people. Features that improve user comfort: LED lighting, ventilation, connection panel. Enclosed pods are equipped with a 4-button wall-mounted touch panel PA-4 for stepwise adjustment of lighting and ventilation levels, optionally – with a 6-button wall-mounted touch panel PA-6 with stepless adjustment of lighting, stepwise adjustment of ventilation, and a sensor of air purity, lighting, and noise levels; controlled automatically or manually. Connection panels are fitted in the floor or the seat. If the pod features seats, the connection panel is fitted in the front side of the seat. The special structure pod body, the materials, the fabrics, the carpet flooring, and the high acoustic performance glass used make it possible for the inside of the pod to isolate its user from the surrounding environment.

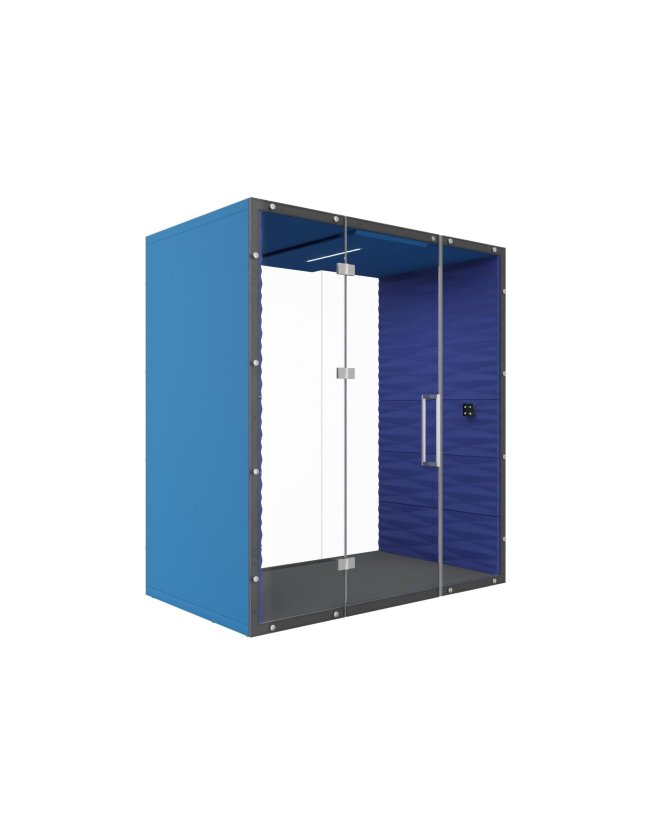

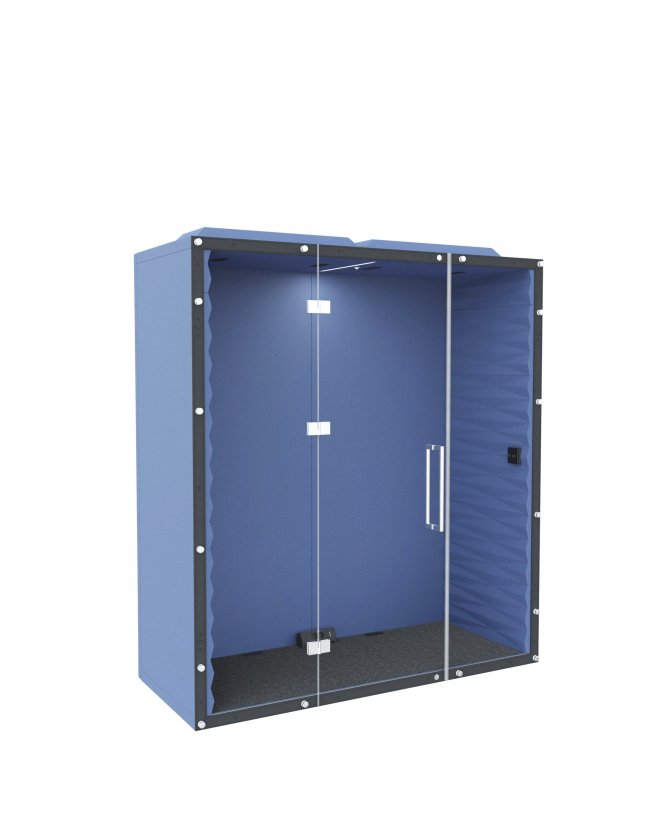

DIA VW222070 Pod for 2-3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
DIA VW222070 Pod for 2-3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
Total height: 238 (H1)
223 (H2) cm
Total depth: 134 cm
Total width: 214 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 120 cm
Internal width: 193 cm
DIA VW222080 Pod for 2-3 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
DIA VW222080 Pod for 2-3 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
Total height: 238 (H1)
223 (H2) cm
Total depth: 134 cm
Total width: 217 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 120 cm
Internal width: 193 cm
DIA VW224070 Pod for 2-3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
DIA VW224070 Pod for 2-3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
Total height: 238 (H1)
223 (H2) cm
Total depth: 132 cm
Total width: 214 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 120 cm
Internal width: 193 cm

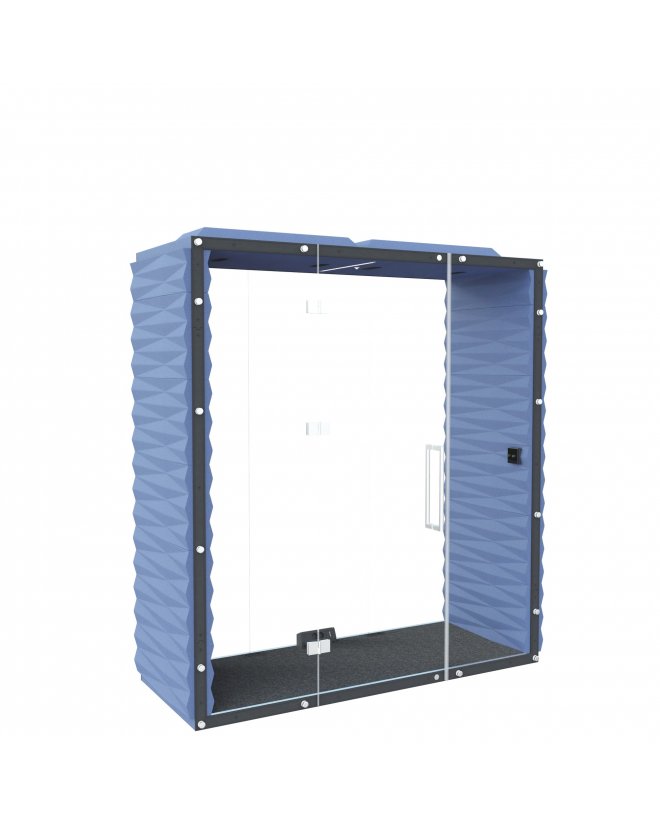

DIA VW224080 Pod for 2-3 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
DIA VW224080 Pod for 2-3 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
Total height: 238 (H1)
223 (H2) cm
Total depth: 132 cm
Total width: 217 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 120 cm
Internal width: 193 cm

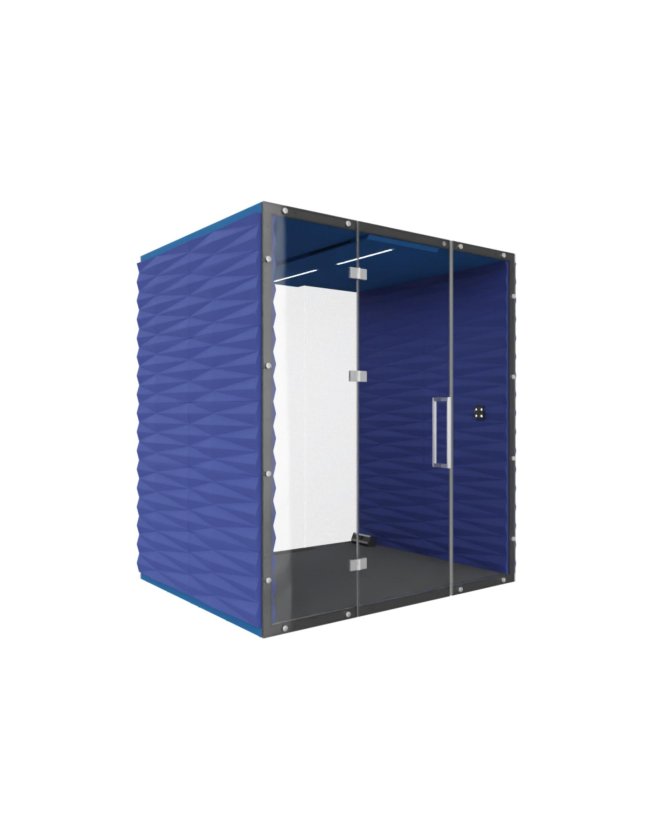

DIA VW422070 Pod for 4 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
DIA VW422070 Pod for 4 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
Total height: 238 (H1)
223 (H2) cm
Total depth: 174 cm
Total width: 214 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 160 cm
Internal width: 193 cm
DIA VW422080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
DIA VW422080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
Total height: 238 (H1)
223 (H2) cm
Total depth: 174 cm
Total width: 217 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 160 cm
Internal width: 193 cm

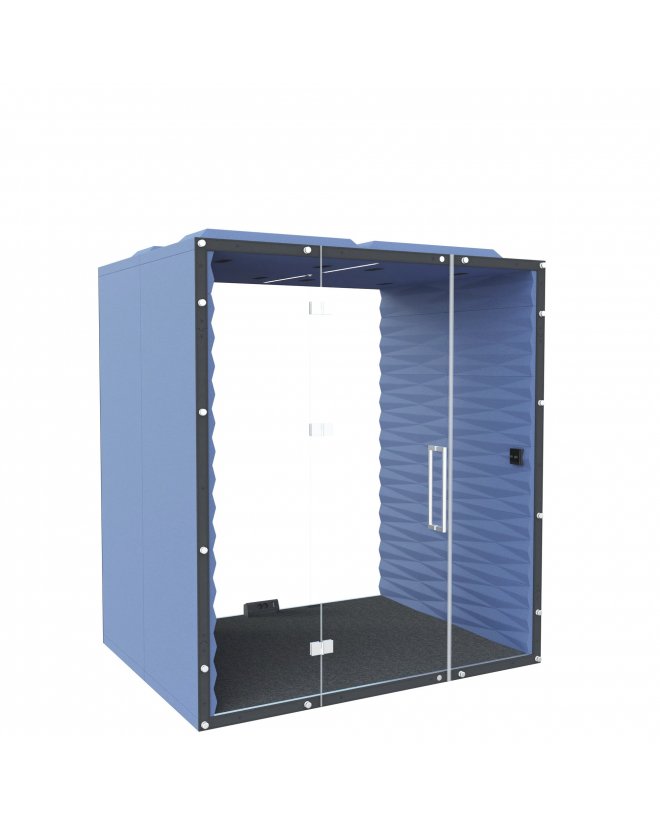

DIA VW424070 Pod for 4 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
DIA VW424070 Pod for 4 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
Total height: 238 (H1)
223 (H2) cm
Total depth: 172 cm
Total width: 214 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 160 cm
Internal width: 193 cm
DIA VW424080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
DIA VW424080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
Total height: 238 (H1)
223 (H2) cm
Total depth: 172 cm
Total width: 217 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 160 cm
Internal width: 193 cm

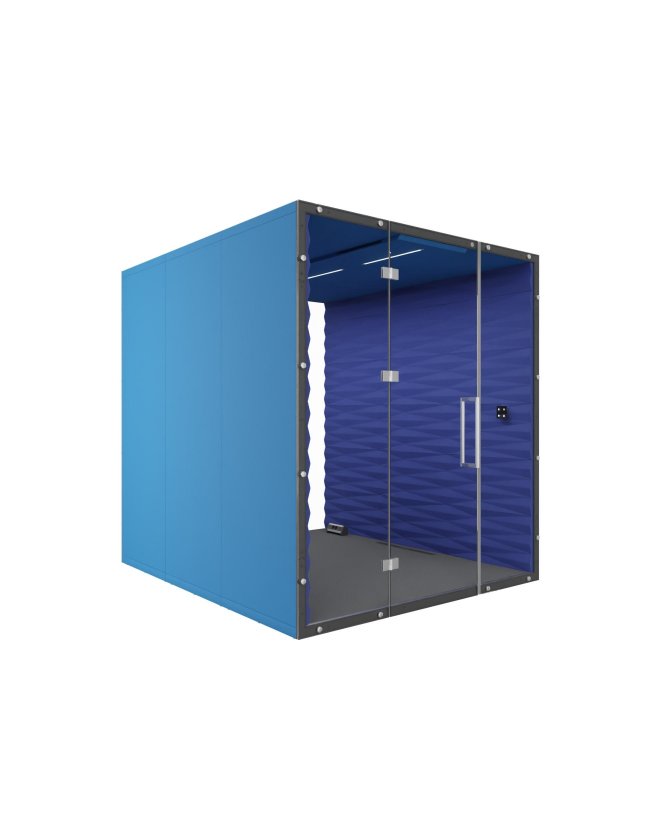

DIA VW622070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
DIA VW622070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
Total height: 238 (H1)
223 (H2) cm
Total depth: 254 cm
Total width: 214 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 240 cm
Internal width: 193 cm

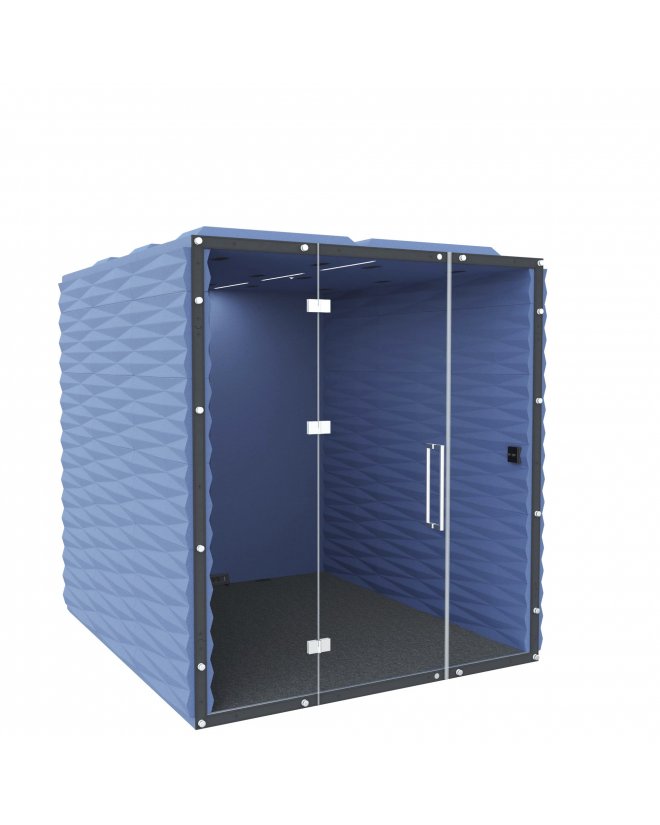

DIA VW622080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
DIA VW622080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
Total height: 238 (H1)
223 (H2) cm
Total depth: 254 cm
Total width: 217 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 240 cm
Internal width: 193 cm
DIA VW624070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
DIA VW624070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
Total height: 238 (H1)
223 (H2) cm
Total depth: 254 cm
Total width: 214 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 240 cm
Internal width: 193 cm
DIA VW624080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
DIA VW624080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
Total height: 238 (H1)
223 (H2) cm
Total depth: 252 cm
Total width: 217 cm
Internal height: 218 (H1)
203 (H2) cm
Internal depth: 240 cm
Internal width: 193 cm
TS-3 A set of 4 seats and a table as furnishings of a pod for 2/3.
TS-3 A set of 4 seats and a table as furnishings of a pod for 2/3.
TS-4 A set of 4 seats and a table as furnishings of a pod for 4.
TS-4 A set of 4 seats and a table as furnishings of a pod for 4.
TS-6 A set of 6 seats and a table as furnishings of a pod for 6.
TS-6 A set of 6 seats and a table as furnishings of a pod for 6.
DIA VW222070 Pod for 2-3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
DIA VW222070 Pod for 2-3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
Total height: 238 (H1) 223 (H2) cm
Total depth: 134 cm
Total width: 214 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 120 cm
Internal width: 193 cm
DIA VW222080 Pod for 2-3 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
DIA VW222080 Pod for 2-3 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
Total height: 238 (H1) 223 (H2) cm
Total depth: 134 cm
Total width: 217 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 120 cm
Internal width: 193 cm
DIA VW224070 Pod for 2-3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
DIA VW224070 Pod for 2-3 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
Total height: 238 (H1) 223 (H2) cm
Total depth: 132 cm
Total width: 214 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 120 cm
Internal width: 193 cm
DIA VW224080 Pod for 2-3 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
DIA VW224080 Pod for 2-3 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
Total height: 238 (H1) 223 (H2) cm
Total depth: 132 cm
Total width: 217 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 120 cm
Internal width: 193 cm
DIA VW422070 Pod for 4 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
DIA VW422070 Pod for 4 person; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
Total height: 238 (H1) 223 (H2) cm
Total depth: 174 cm
Total width: 214 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 160 cm
Internal width: 193 cm
DIA VW422080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
DIA VW422080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
Total height: 238 (H1) 223 (H2) cm
Total depth: 174 cm
Total width: 217 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 160 cm
Internal width: 193 cm
DIA VW424070 Pod for 4 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
DIA VW424070 Pod for 4 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
Total height: 238 (H1) 223 (H2) cm
Total depth: 172 cm
Total width: 214 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 160 cm
Internal width: 193 cm
DIA VW424080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
DIA VW424080 Pod for 4 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
Total height: 238 (H1) 223 (H2) cm
Total depth: 172 cm
Total width: 217 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 160 cm
Internal width: 193 cm
DIA VW622070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
DIA VW622070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.
Total height: 238 (H1) 223 (H2) cm
Total depth: 254 cm
Total width: 214 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 240 cm
Internal width: 193 cm
DIA VW622080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
DIA VW622080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, smooth upholstered back wall.
Total height: 238 (H1) 223 (H2) cm
Total depth: 254 cm
Total width: 217 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 240 cm
Internal width: 193 cm
DIA VW624070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
DIA VW624070 Pod for 6 people; door made of safety glass, internal side walls covered with acoustic panels, smooth upholstered external side walls, back wall made of glass.
Total height: 238 (H1) 223 (H2) cm
Total depth: 254 cm
Total width: 214 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 240 cm
Internal width: 193 cm
DIA VW624080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
DIA VW624080 Pod for 6 people; door made of safety glass, internal and external side walls covered with acoustic panels, back wall made of glass.
Total height: 238 (H1) 223 (H2) cm
Total depth: 252 cm
Total width: 217 cm
Internal height: 218 (H1) 203 (H2) cm
Internal depth: 240 cm
Internal width: 193 cm
TS-3 A set of 4 seats and a table as furnishings of a pod for 2/3.
TS-3 A set of 4 seats and a table as furnishings of a pod for 2/3.
TS-4 A set of 4 seats and a table as furnishings of a pod for 4.
TS-4 A set of 4 seats and a table as furnishings of a pod for 4.
TS-6 A set of 6 seats and a table as furnishings of a pod for 6.
TS-6 A set of 6 seats and a table as furnishings of a pod for 6.
ACOUSTICS & WELLBEING
ACOUSTICS & WELLBEING
VANK_WELLBIOING 2023
VANK_WELLBIOING 2023

PCON is a simple piece of software for designing functional settings or detailed arrangements — including planning the necessary budget. You’re most welcome to make use of the OFML data of our products, prepared specifically with this 3D planning programme in mind.

GO TO VANK PCON DIRECTORY

FLOORING

F-GR
F-BE

SONUS / II PRICE GROUP

A heavy-duty acoustic mélange fabric with a felt finish. Composition: 10% viscose, 18% nylon, 72% polyester, weight: 200 g/m2. Environmental label: EU Ecolabel, Indoor Advantage™ “Gold”, Standard 100 by OEKO-TEX®.

fhr01
fhr02
fhr03
fhr05
fhr06
fhr07
fhr09
fhu04
fhu08
fhu10
fhu14
fhu15

BLAZER LITE / II PRICE GROUP

A heavy-duty acoustic and biodegradable fabric containing natural fibres. Felt finish and mélange colours. Composition: 100% renewable responsibly farmed wool, weight: 355 g/m2. Environmental label: Indoor Advantage™ “Gold”.

lth39
lth41
lth47
lth50
lth55
lth56
lth63
lth67

WELL / II PRICE GROUP

Composition: 92% wool, 8% polyamide, weight: 457 g/m2, abrasion resistance: ≥ 200,000 Martindale cycles.

02
14
16
29
39
42
44
49
62
63
64

SYNERGY / III PRICE GROUP

A heavy-duty fabric with a fine felt finish, containing natural fibres, available in 75 colours.  Composition: 95 % renewable responsibly farmed wool, 5% nylong, weight: 400 g/m2, abrasion resistance: ≥ 100,000 Martindale cycles. Environmental label: EU Ecolabel, Indoor Advantage™ “Gold”.

lds20
lds05
lds07
lds08
lds16
lds17
lds18
lds19
lds21
lds22
lds23
lds24
lds25
lds26
lds27
lds28
lds29
lds31
lds32
lds33
lds34
lds35
lds36
lds37
lds39
lds40
lds41
lds42
lds43
lds44
lds45
lds46
lds47
lds48
lds49
lds50
lds51
lds52
lds53
lds54
lds55
lds56
lds38
lds57
lds58
lds60
lds59
lds61
lds62
lds63
lds64
lds65
lds66
lds67
lds68
lds69
lds70
lds71
lds72
lds73
lds74
lds75
lds76
lds77
lds78
lds79
lds80
lds81
lds82
lds83
lds84
lds85
lds86
lds87
lds88

RPET

rPET GREY
rPET GRAPHITE

BIOCOMPOSIT

BIO LIGHT
BIO DARK

TABLE TOPS

B-GR
B-WH
B-BE

BASE

S-BKS
S-WHS

__ Collection DIAMOND

The DIAMOND collection of acoustic pods, walls, wall and desk panels has been created in response to the need for a space for conversations, for meetings that require a break from the influx of external stimuli and focus on what really matters. As a means to maintain the balance between personal space and teamwork. DIAMOND panels with their three-dimensional structure act as diffusers to break up sound waves, bringing well-being to the office. They can be made of a biocomposite or non-woven rPET — grey or upholstered. Such acoustic solutions will work great not only in office environments, but also in hotels, public office buildings, at airports, and in all sorts of event, industrial, and logistics facilities.
DIAMOND
DIAMOND_0
DIAMOND_1
VANK DIAMOND
Explore the entire furniture collection DIAMOND

__ Case Studies

blox AG and Zibris AG / Switzerland

Blox is a company based in Rothenburg, Switzerland that offers consulting services to architects, interior designers, and investors for office furnishings. They also distribute innovative products within the interior design industry.

...
More
CASE STUDIES
MORPHOSYS Planegg / Germany

During the COVID-19 pandemic, after 1.5 years of working primarily from home, we supported MorphoSys, a biopharmaceutical company based near Munich.

...
More
CASE STUDIES
TOPSAN / Austria

TOPSAN is the company owned by TOP Assets Group and specialises in general contracting, building and refurbishing. Their new headquater was built in the heart of Vienna.

...
More
CASE STUDIES
nook, Dubai / United Arab Emirates

Nook coworking in Dubai is dedicated to wellness and sports businesses. It has amazing spaces to work, hold meetings, have consultations with clients, deliver classes, or host an event - seminar, or workshop.

...
More
CASE STUDIES
A technology company, Warsaw / Poland

When designing and furnishing the new office, he designer had in mind: the representative function of the office and, at the same time, the workspace as a show office for future tenants of the building.

...
More
CASE STUDIES
WORKINGWELL / Germany

From their offices in Munich, Berlin, and Cologne they develope project visions, identify employee needs, and translate them into a goal-oriented workplace concept.

...
More
CASE STUDIES
Business Campus Management GmbH, Munich / Germany

Business Campus Management GmbH is a company that leases and manages premium, high-quality business facilities. Its 700-square-metre office in Munich offers countless opportunities to work in an agile, remote, creative, and collaborative way.

...
More
CASE STUDIES
Vienna University of Economics and Business / Austria

The Vienna University of Economics and Business is Europe’s largest higher education institution teaching mainly business and economics. Its Library and Learning Centre, designed by Zaha Hadid, is a true work of architectural art.

...
More
CASE STUDIES
Merck, Zug / Switzerland

The safe blue and red acoustic oases of peace – VANK_DIAMOND pods – support the employees of the Swiss branch of MERCK GROUP in their daily work.

...
More
CASE STUDIES
Skanska, Budapest / Hungary

Light purple VANK_DIAMOND_BOX for 4 people was arranged in SKANSKA Hungary office in Budapest. This elegant colour has a calming effect and can relieve stress. It is not without reason that purple is associated with spirituality and mysticism.

...
More
CASE STUDIES
6280.CH, Hochdorf / Switzerland

An example of a coworking space in a small town (only over 10,000 residents). The name 6280.ch Coworking Hochdorf comes from the zip code of Hochdorf, near Lucerne, Switzerland.

...
More
CASE STUDIES

__ Add to arrangement

CO barstools
NEW
RING lounge chairs
MOVE desks
CO desks and tables
V6 office chairs
CO barstools
NEW
RING lounge chairs
