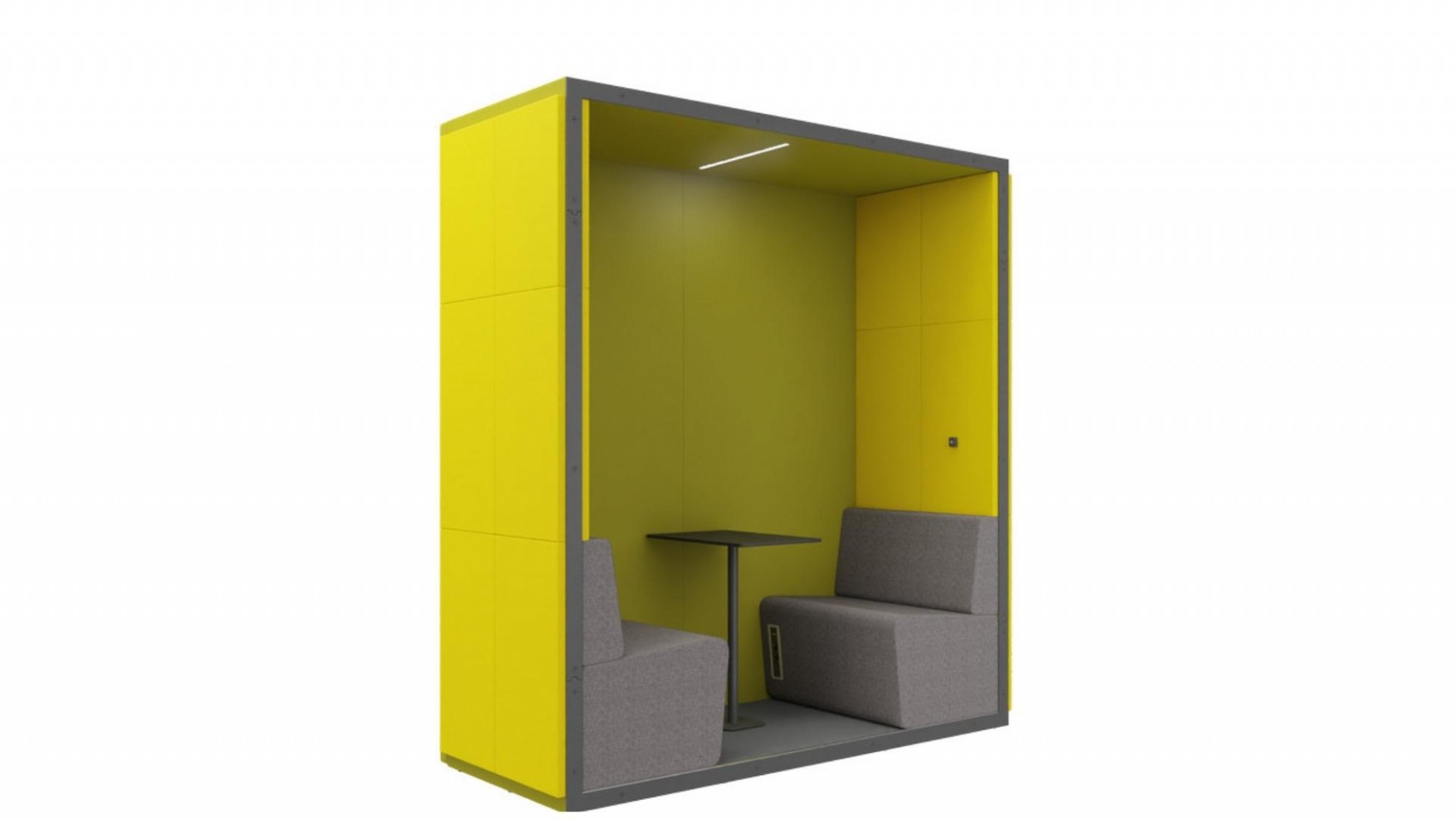

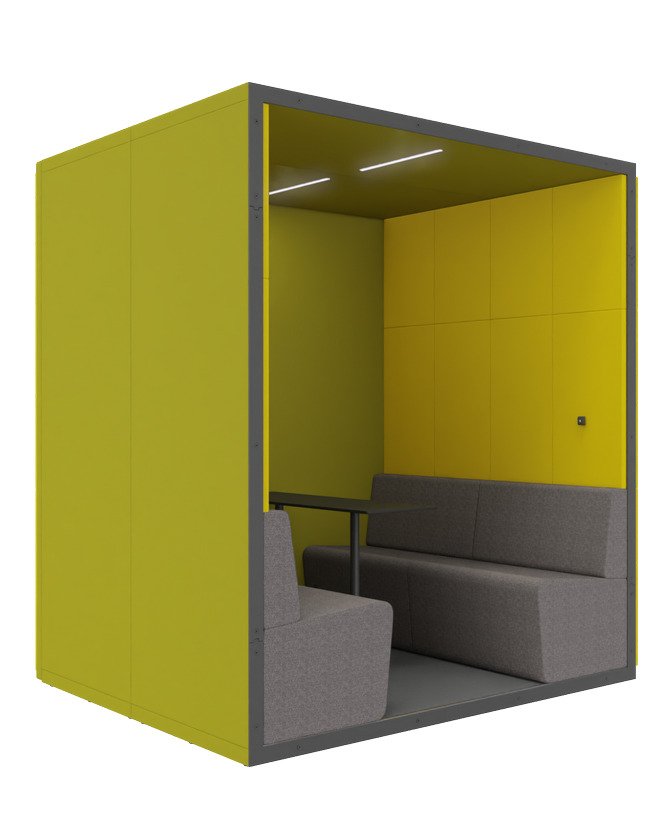

FLAT open acoustic pods

Arranging the available workspace in the right way by providing employees with space for individual heads-down work and conversations makes the workplace much more employee-friendly and boosts creativity. Such arrangements are possible thanks to open acoustic pods — VANK’s mobile rooms for 2 or 4. This version does not have a door — it features a plain upholstered back wall. Thanks to the special design and the use of sound-absorbing materials, the pods effectively block outside noise. FLAT panels with their three-dimensional structure act as diffusers to break up sound waves, bringing well-being to the office. They can be made of a biocomposite or non-woven rPET — grey or upholstered. The pods come with LED ceiling lighting with a switch and a connection panel. Acoustic pods will work well not only in office environments but also at event venues, in hotels, in public office buildings, and at airports.

Awards

MIXOLOGY 2023

The Mixology Awards by Mix Interiors Magazine celebrate the very best projects, products and people in commercial interior design, with a judging panel comprising key players in the industry. It’s a great honour to be recognised for our efforts on this new version of VANK_BOX.

GERMAN SUSTAINABILITY AWARD DESIGN 2022

VANK’s natural composite bio-panel and eco-transformation have been recognised by the jury of the German Sustainability Award Design competition, and the panel was named a finalist in the 2022 edition of the competition.

GREEN PRODUCT AWARD 2022

The VANK BIO panel, available in 5 different patterns, won the Green Product Award 2022 and received a special mention from a 26-member jury — Editor’s Choice — in the Interior & Lifestyle category. The panel is an essential element of VANK acoustic pods, mobile walls, and wall installations.

ICONIC AWARDS 2022 Winner - BIO

The design of VANK’s BIO acoustic pod received “The Winner” title in the Innovative Interiors category of the ICONIC AWARDS 2022 competition organised by the German Design Council.

__ Gallery

Configurator

Configure Acoustic pods FLAT

__ Distinguishing features

ACOUSTICS

The three-dimensional structure of the panels guarantees effective dispersion of acoustic waves and sound absorption at the level of αw=0.90.

NATURAL BIO-MATERIAL

VANK BIO acoustic panels are made from a biocomposite based on fibrous plants, i.e. flax and hemp.

The smooth walls are a result of a client’s brief, which we took a step further by adding an eco-friendly material.

VANK_FLAT

rPET

VANK rPET acoustic panels are made from non-woven recycled plastic. They can come in a wide range of colours if upholstered in a fabric of choice.

DIVERSITY OF FORM

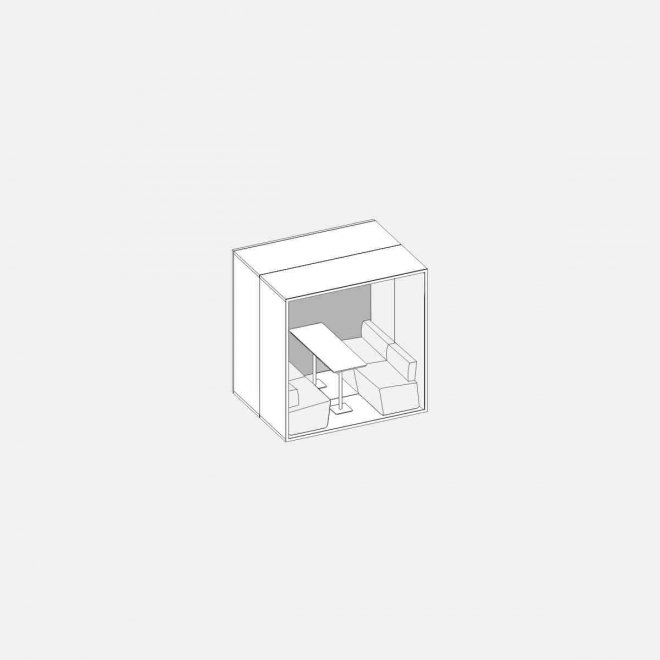

The pods come in many combinations: with one or two glass walls, with the body covered with panels on two sides side or one side only (the other is upholstered in plain fabric).

GREEN MOBILITY

All VANK acoustic pods can be moved freely at any time — and disassembled and assembled back if necessary. This is possible thanks to the castors fixed to the base and the heavy-duty design — suitable for repeated assembly.

FREEDOM OF FURNISHING

The freedom to furnish the pod with furniture makes it easy to adapt it to the current needs of the organisation. Available options include standard seats or collections like CO, CELOO, RING, V6, and PEEL.

TECHNOLOGY

Connection panels are fitted in the floor or the pod. If the pod features seats, the connection panel is fitted in the front side of the seat.

ACOUSTICS

The three-dimensional structure of the panels guarantees effective dispersion of acoustic waves and sound absorption at the level of αw=0.90.

NATURAL BIO-MATERIAL

VANK BIO acoustic panels are made from a biocomposite based on fibrous plants, i.e. flax and hemp.

rPET

VANK rPET acoustic panels are made from non-woven recycled plastic. They can come in a wide range of colours if upholstered in a fabric of choice.

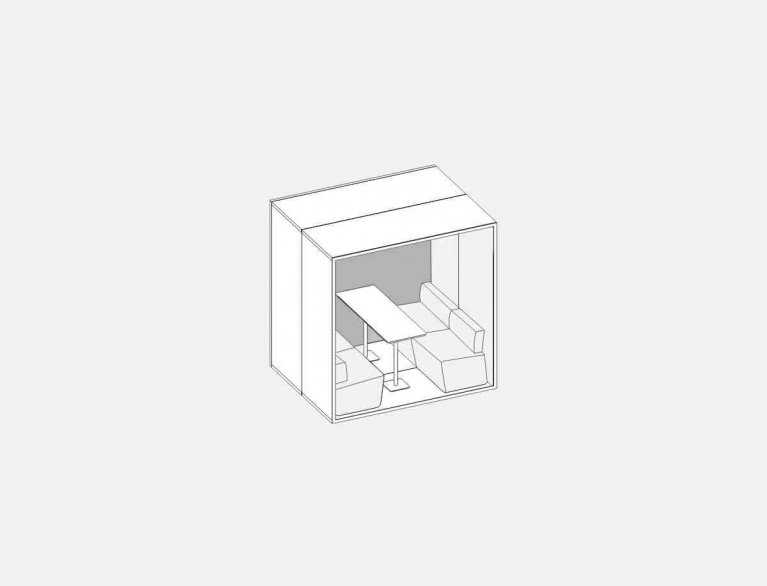

DIVERSITY OF FORM

The pods come in many combinations: with one or two glass walls, with the body covered with panels on two sides side or one side only (the other is upholstered in plain fabric).

GREEN MOBILITY

FREEDOM OF FURNISHING

TECHNOLOGY

Connection panels are fitted in the floor or the pod. If the pod features seats, the connection panel is fitted in the front side of the seat.

Write what information you need

__ Downloads

Dimensions and technical details

Open acoustic pods support focused work. Available in versions for 2 and for 4 people. Features that improve user comfort: LED lighting with a switch, connection panel. Connection panels are fitted in the floor or the seat. If the pod features seats, the connection panel is fitted in the front side of the seat.

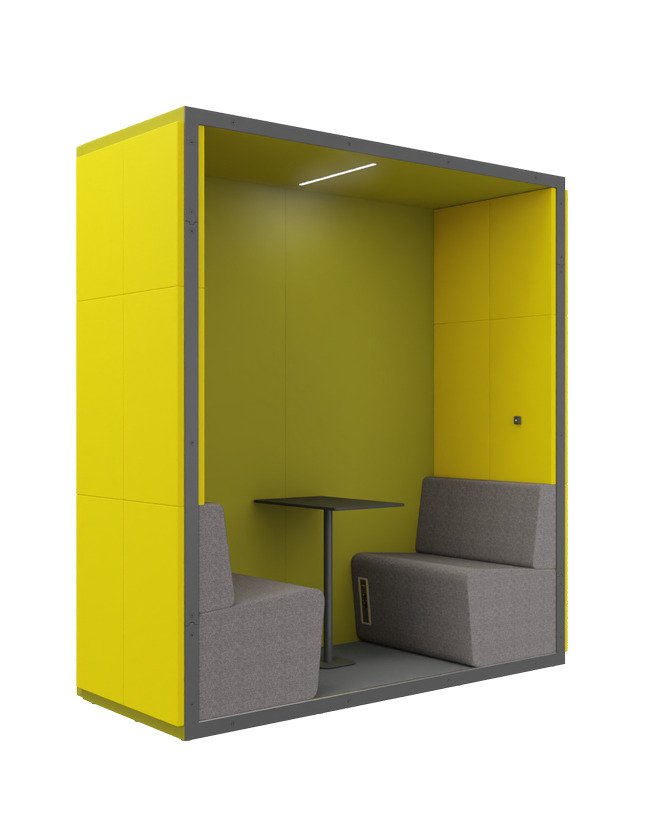

FLT VW221070 Open pod for 2 people; internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.

Total height:	235 (H1) 220 (H2) cm
Total depth:	84 cm
Total width:	214 cm
Internal height:	218 (H1) 203 (H2) cm
Internal depth:	80 cm
Internal width:	193 cm

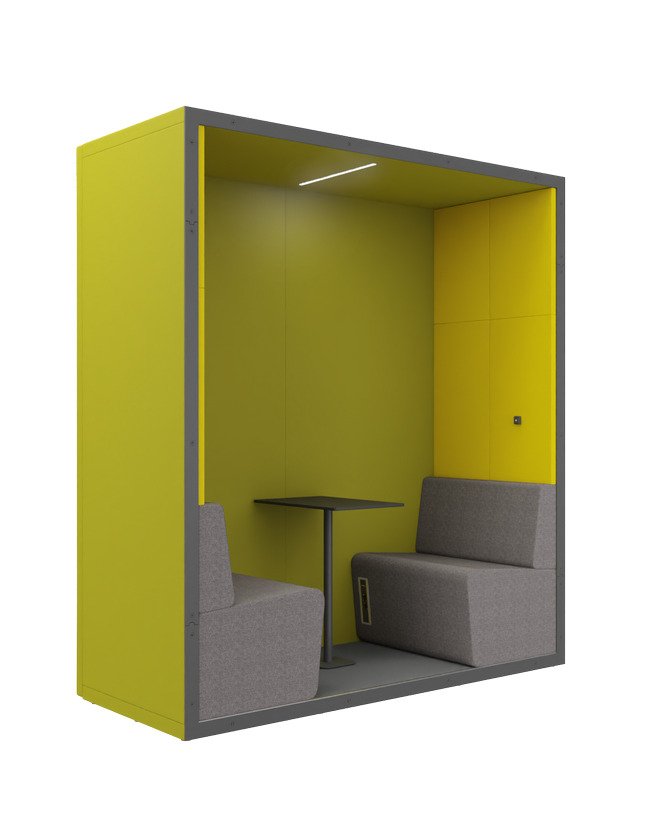

FLT VW221080 Open pod for 2 people; internal and external side walls covered with acoustic panels, smooth upholstered back wall.

Total height:	235 (H1) 220 (H2) cm
Total depth:	84 cm
Total width:	217 cm
Internal height:	218 (H1) 203 (H2) cm
Internal depth:	80 cm
Internal width:	193 cm

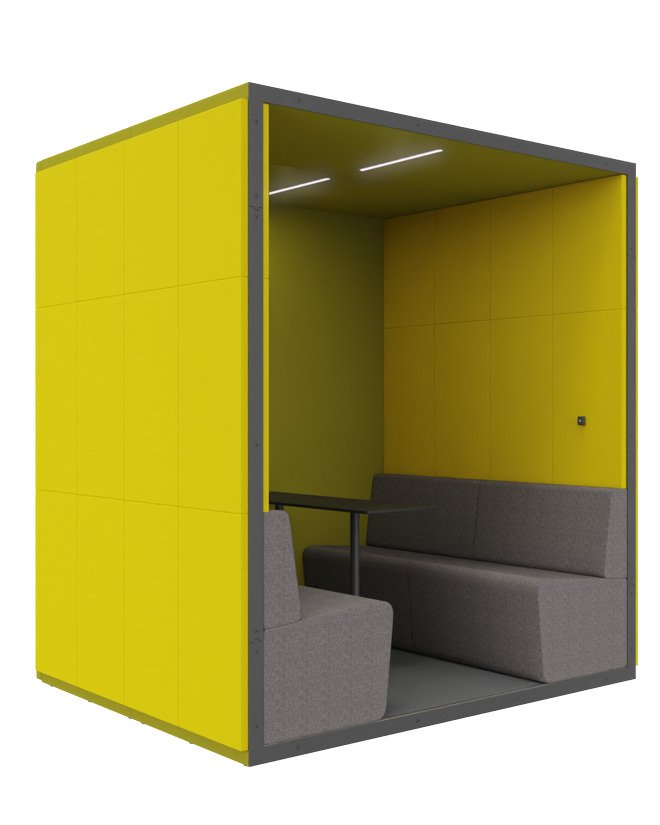

FLT VW421070 Open pod for 4 people; internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.

Total height:	235 (H1) 220 (H2) cm
Total depth:	174 cm
Total width:	214 cm
Internal height:	218 (H1) 203 (H2) cm
Internal depth:	160 cm
Internal width:	193 cm

FLT VW421080 Open pod for 4 people; internal and external side walls covered with acoustic panels, smooth upholstered back wall.

Total height:	235 (H1) 220 (H2) cm
Total depth:	174 cm
Total width:	217 cm
Internal height:	218 (H1) 203 (H2) cm
Internal depth:	160 cm
Internal width:	193 cm

TS-2 A set of 2 seats and a table as furnishings of an open pod for 2.

TS-4 A set of 4 seats and a table as furnishings of an open pod for 4.

FLT VW221070 Open pod for 2 people; internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.

Total height:	235 (H1) 220 (H2) cm
Total depth:	84 cm
Total width:	214 cm
Internal height:	218 (H1) 203 (H2) cm
Internal depth:	80 cm
Internal width:	193 cm

FLT VW221080 Open pod for 2 people; internal and external side walls covered with acoustic panels, smooth upholstered back wall.

Total height:	235 (H1) 220 (H2) cm
Total depth:	84 cm
Total width:	217 cm
Internal height:	218 (H1) 203 (H2) cm
Internal depth:	80 cm
Internal width:	193 cm

FLT VW421070 Open pod for 4 people; internal side walls covered with acoustic panels, smooth upholstered external walls and back wall.

Total height:	235 (H1) 220 (H2) cm
Total depth:	174 cm
Total width:	214 cm
Internal height:	218 (H1) 203 (H2) cm
Internal depth:	160 cm
Internal width:	193 cm

FLT VW421080 Open pod for 4 people; internal and external side walls covered with acoustic panels, smooth upholstered back wall.

Total height:	235 (H1) 220 (H2) cm
Total depth:	174 cm
Total width:	217 cm
Internal height:	218 (H1) 203 (H2) cm
Internal depth:	160 cm
Internal width:	193 cm

TS-2 A set of 2 seats and a table as furnishings of an open pod for 2.

TS-4 A set of 4 seats and a table as furnishings of an open pod for 4.

3D MODELS

3DS

MAX

BIM - REVIT

DWG 3D

SKP

CATALOGUES

ACOUSTICS & WELLBEING

PHOTOS

Download all pictures

PCON PLANNER

PCON is a simple piece of software for designing functional settings or detailed arrangements — including planning the necessary budget. You’re most welcome to make use of the OFML data of our products, prepared specifically with this 3D planning programme in mind.

GO TO VANK PCON DIRECTORY

Materials

ACOUSTIC PANELS

RPET

rPET GREY

rPET GRAPHITE

BIOCOMPOSIT

BIO LIGHT

BIO DARK

FABRICS

SONUS / II PRICE GROUP

A heavy-duty acoustic mélange fabric with a felt finish. Composition: 10% viscose, 18% nylon, 72% polyester, weight: 200 g/m2. Environmental label: EU Ecolabel, Indoor Advantage™ “Gold”, Standard 100 by OEKO-TEX®.

fhr01

fhr02

fhr03

fhr05

fhr06

fhr07

fhr09

fhu04

fhu08

Expand

fhu10

fhu14

fhu15

BLAZER LITE / II PRICE GROUP

A heavy-duty acoustic and biodegradable fabric containing natural fibres. Felt finish and mélange colours. Composition: 100% renewable responsibly farmed wool, weight: 355 g/m2. Environmental label: Indoor Advantage™ “Gold”.

lth39

lth41

lth47

lth50

lth55

lth56

lth63

lth67

WELL / II PRICE GROUP

Composition: 92% wool, 8% polyamide, weight: 457 g/m2, abrasion resistance: ≥ 200,000 Martindale cycles.

Expand

SYNERGY / III PRICE GROUP

A heavy-duty fabric with a fine felt finish, containing natural fibres, available in 75 colours. Composition: 95 % renewable responsibly farmed wool, 5% nylong, weight: 400 g/m2, abrasion resistance: ≥ 100,000 Martindale cycles. Environmental label: EU Ecolabel, Indoor Advantage™ “Gold”.

lds20

lds05

lds07

lds08

lds16

lds17

lds18

lds19

lds21

Expand

lds22

lds23

lds24

lds25

lds26

lds27

lds28

lds29

lds31

lds32

lds33

lds34

lds35

lds36

lds37

lds39

lds40

lds41

lds42

lds43

lds44

lds45

lds46

lds47

lds48

lds49

lds50

lds51

lds52

lds53

lds54

lds55

lds56

lds38

lds57

lds58

lds60

lds59

lds61

lds62

lds63

lds64

lds65

lds66

lds67

lds68

lds69

lds70

lds71

lds72

lds73

lds74

lds75

lds76

lds77

lds78

lds79

lds80

lds81

lds82

lds83

lds84

lds85

lds86

lds87

lds88

FLOORING

F-GR

F-BE

WOOD

TABLE TOPS

B-GR

B-WH

METAL

BASE

S-BKS

S-WHS

__ Collection FLAT

The FLAT collection of acoustic pods, walls, wall and desk panels has been created in response to the need for a space for conversations, for meetings that require a break from the influx of external stimuli and focus on what really matters. As a means to maintain the balance between personal space and teamwork. FLAT panels with their three-dimensional structure act as diffusers to break up sound waves, bringing well-being to the office. They can be made of a biocomposite or non-woven rPET — grey or upholstered. Neutral, smooth FLAT panels create a minimalist surface, easy to combine with bolder, more distinctive shapes they share the space with. Such acoustic solutions will work great not only in office environments, but also in hotels, public office buildings, at airports, and in all sorts of event, industrial, and logistics facilities.
